Doughty Braked Barrel Trolley - Standard & Slimline Version
€174.81incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Standard and Slimline versions. G1642 rolls on 48 - 51 mm tubes, G1645 on 48 mm tubes.
- For pantographs. Suspends pantographs from fixed or rolling pipe grids and barrel hoists.
- 28 mm TV spigot receiver. Fitted to every trolley.
- Braked, SWL 75 kg. Aluminium trolley weighing 2.5 kg in black powder paint.
Style:
Standard
Accepted payment methods
Please enter correct zip code
shipping

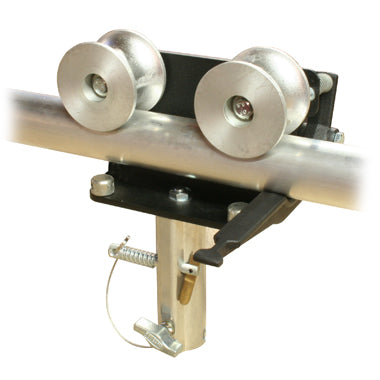

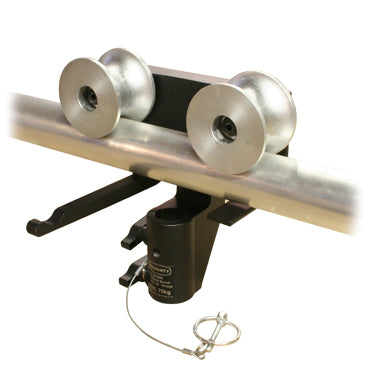

Braked Barrel Trolleys - Doughty Engineering
Barrel Trolleys are often used to suspend Pantographs from fixed or rolling pipe grids and barrel hoists in TV studios. Doughty braked barrel trolleys are manufactured in aluminium and steel and are available in two versions: the Standard Braked Barrel Trolley (G1642), which rolls along 48mm to 51mm diameter tubes, and the Braked Slimline Barrel Trolley (G1645), which rolls along 48mm diameter tubes. Each trolley has a receiver to accept a 28mm TV spigot. Unbraked versions are also available. Finish: crackle black powder paint. For any inquiries, please contact us via chat.
Features:
- Versions: G1642 Standard Braked Barrel Trolley; G1645 Braked Slimline Barrel Trolley
- SWL: 75kg
- Weight: 2.5kg

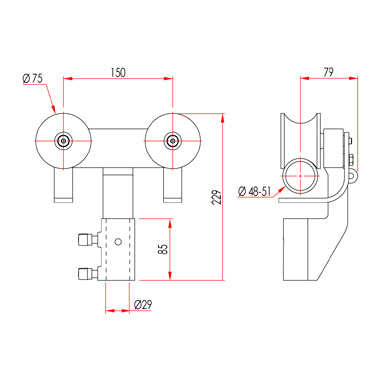

- Tube Diameter: 48mm - 51mm (G1642); 48mm (G1645)
- Receiver: 29mm, for 28mm TV spigot
- Material: Aluminium, nylon, grade 8.8 fasteners
- Finish: Black Powder Paint
