Boscaro Adjustable gripper for 2 rows of roof tiles
Product No. PZT-R
Shipping calculator
Payment methods
Product details

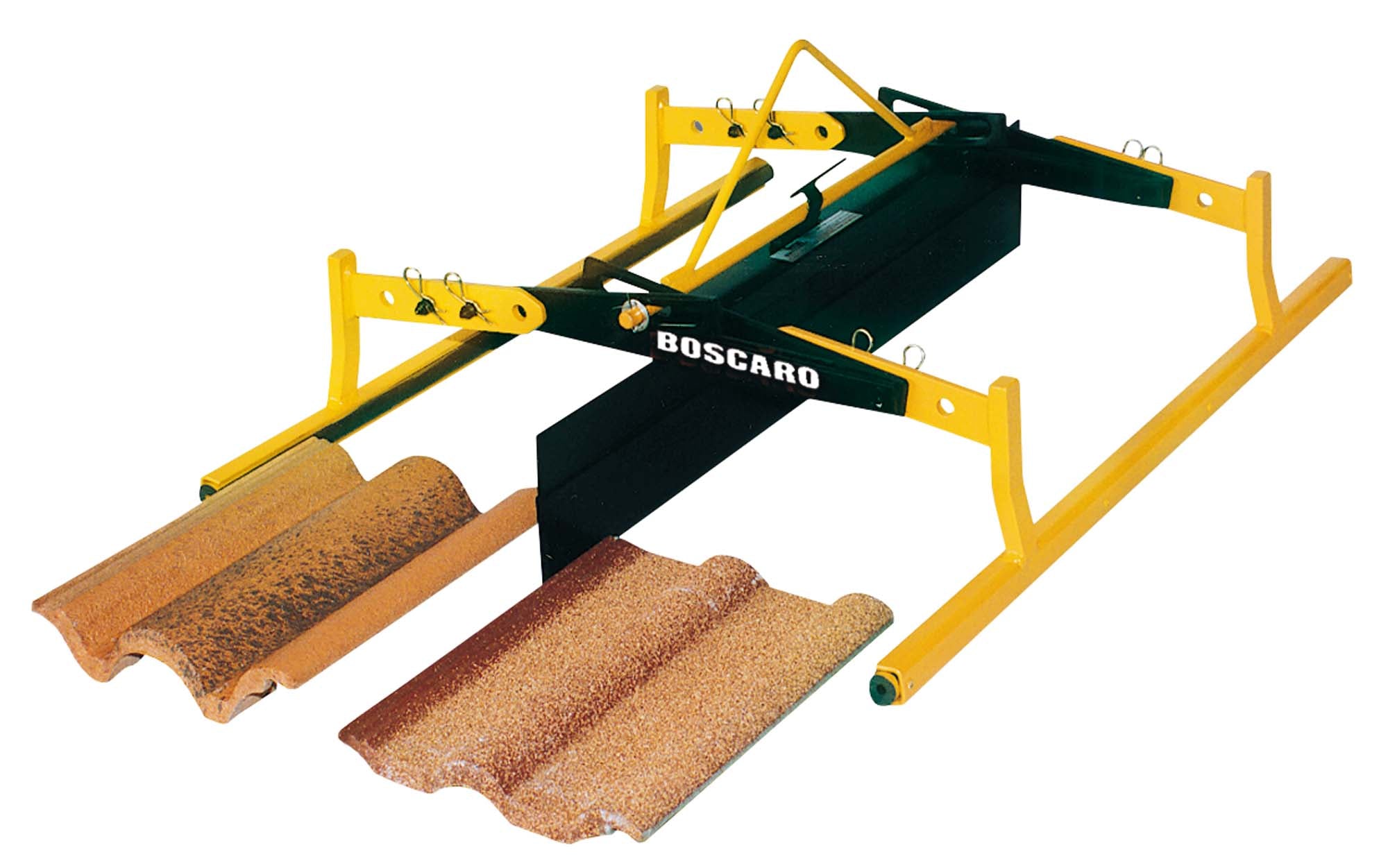

Boscaro Adjustable gripper for 2 rows of roof tiles
The Boscaro Adjustable gripper for 2 rows of roof tiles is a specialized lifting device designed for the safe and efficient handling of roof tiles. Engineered with precision, this gripper ensures secure transportation without damaging the tiles. It features soft-coated contact surfaces to provide a firm grip while preventing material wear. Additionally, safety nets can be added upon request for enhanced security when working at heights.
All Boscaro tile grippers comply with UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, and UNI EN 10204 standards. Each unit is provided with a conformity certificate, user manual, and a one-year European Directive warranty.
Downloads:
Key Features:
- Adjustable grippers for handling 2 rows of roof tiles.
- Soft-coated contact surfaces to protect tiles.
- Compatible with safety nets for high-altitude operations.
- Built according to international safety and quality standards.
- Supplied with a conformity certificate and user manual.
Specifications:
- Maximum capacity: 400 kg.
- Weight: 33 kg.
- Dimension A: 1070 mm.
- Dimension B: 150 mm.
- Dimension C: 320 mm.
- Dimension D: 650 mm.
References:
- UNI EN 13155
- UNI EN ISO 12100
- UNI EN 13854
- ISO 8686
- UNI EN 10204
Product Variants:
| Code | Capacity (kg) | Weight (kg) | Dimension A (mm) | Dimension B (mm) | Dimension C (mm) | Dimension D (mm) |
| PZT-R | 400 | 33 | 1070 | 150 | 320 | 650 |
| - | - | 33 | - | - | 380 | 770 |
| - | - | 33 | - | - | 440 | 890 |
