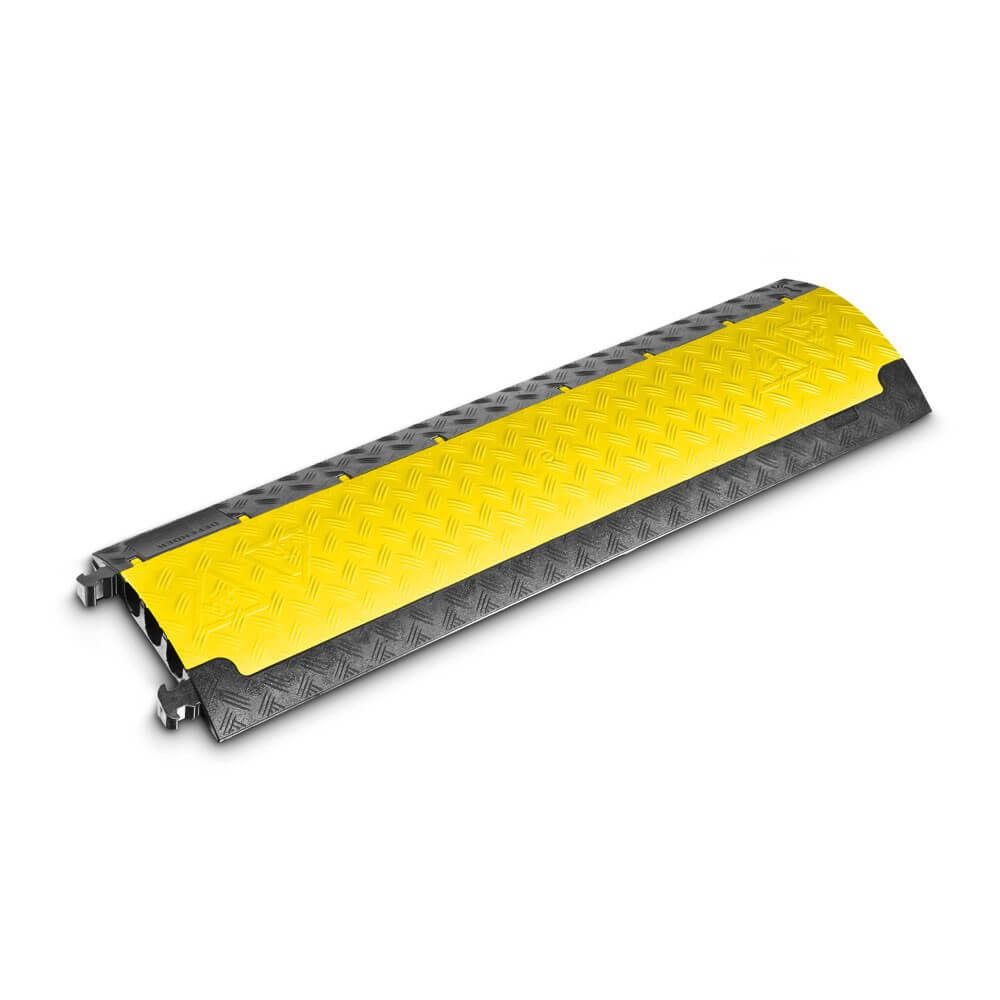

Adam Hall Defender Mini Cable Protector Ramp - 3 Channels
- Compact 3-channel protector. Low-profile ramp with two 35 x 30 mm and one 35 x 35 mm channels, ideal for indoor use.
- Approx. 2 t load capacity. Rated on 20 x 20 cm for lightweight vehicles, carts and pedestrians; not suitable for road traffic.
- Yellow or black lid. Choose 85200 with yellow lid or 85200BLK with black lid.
- Integrated dog bone connectors. Link protectors of the same series; male and female end ramps are available.
- TÜV Süd certified TPU. Recyclable, PVC-free polyurethane with B2 fire rating and non-slip base.
Accepted payment methods
shipping
Compact, lightweight 3-channel cable protector with integrated connector plugs and non-slip base
Made in Germany┋Dimensions: 104.5 x 29 x 5 cm┋Weight: 5.86 kg┋3 Channels┋Max. Load: 2 t (on a surface area of 20 x 20 cm)
Available with a choice of yellow (85200) or black (85200BLK) lids, the Adam Hall Defender MINI cable protection system is ideal for indoor use. The low-profile three-channel ramp with integrated dog bone connectors features a slip-resistant underside for superior grip on a wide variety of surfaces. This Defender Mini family also includes male and female end ramps that provide secure and tidy cable entry and exit.
With a 2 ton per 20 x 20 cm load capacity, Defender® MINI protectors support lightweight vehicles, carts, and pedestrian traffic.
Features & Benefits:
- Compact, non-slip cable protector made of black, recyclable polyurethane
- Modular System: Each cable protector has connectors and corresponding sockets that enable you to connect cable protectors in the same series continuously with each other with maximum stability.
- High-Tech Raw Material: All DEFENDER cable crossovers are made of extremely sturdy, unbreakable TPU (thermoplastic polyurethane). They feature a B2 fire-resistance rating (also available with a B1 rating - difficult to ignite - in compliance with DIN4102) and are resistant to oil, acids, and petrol.
- Perfect, all-round choice: Ideal for a wide range of applications like carnivals, fairs, trade shows, exhibitions, shopping malls, warehouses, stages, studios, and broadcasting. Not suitable for road traffic.
- Easy Lock System: This very easy and efficient opening and locking system allows you to open and close the lid without tooling or special efforts. This exclusive feature also guarantees that the lid remains closed at all times, even when light vehicles cross over it.
- Equipped with patented self-cleaning hinges: The dirt gathering around the hinges is automatically pushed out when opening and closing the lid of the DEFENDER cable protector
- DEFENDER® products contain no environmentally harmful PVC.
Specifications:
- Product type: Cable Protector - Straight
- 3 Channels: 2 x 35 x 30 mm, 1 x 35 x 35 mm
- Dimensions: 104.5 x 29 x 5 cm (L x W x H)
- Load bearing capacity: Approx. 2 t on a surface area of 20 x 20 cm; load per axle 4 t
- Material: TPU (thermoplastic polyurethane)
- Colour: Black base with yellow lid (85200) or black lid (85200BLK)
- Weight: 5.86 kg
- Hardness range: 88 Shore A ± 4
- Fire protection class: B2 (DIN 4102-1), E (EN 13501-1)
- Temperature range: -30 to +60 °C
- Certification: TÜV Süd
