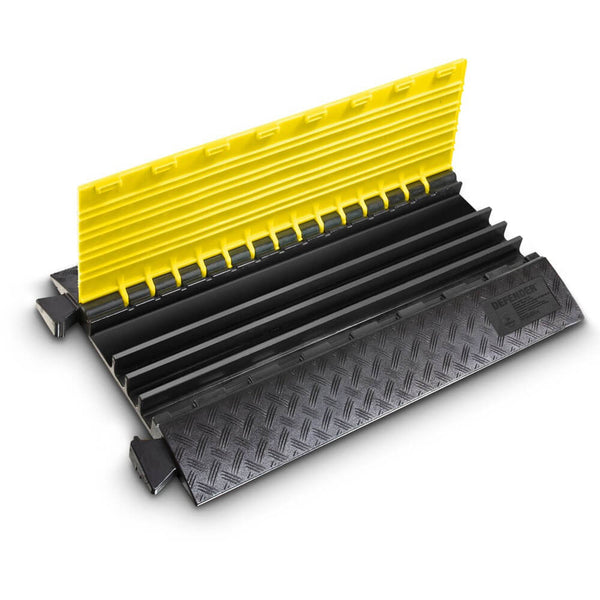

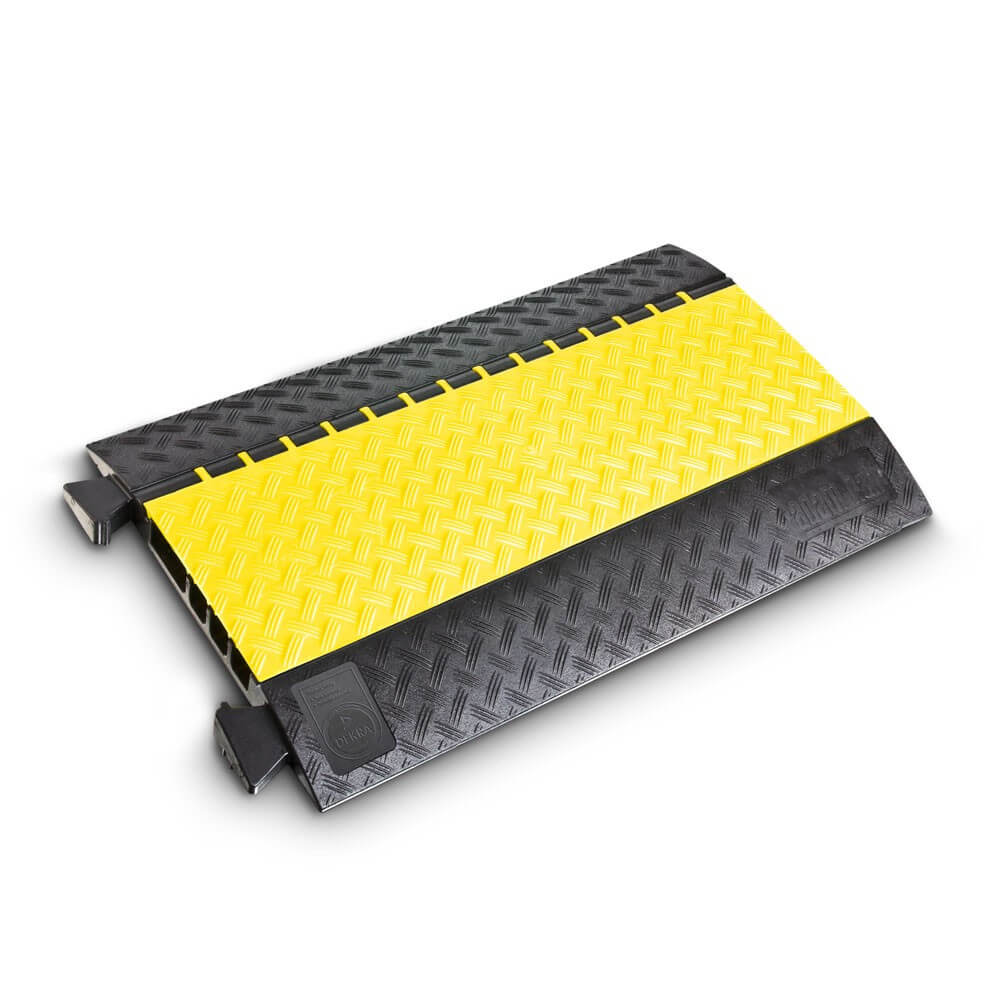

Defender MIDI 4C - 4 Channels

3 medium-sized cable channels & 1 large channel for fire hoses

Made in Germany┋Dimensions: 87x54x5.5cm┋Weight: 13.5 kg┋4 Channels

Featuring 3 cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables.

With its integrated connectors, flat profile and great capacity, MIDI 4C cable crossovers are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events.

User Manual

Features:

• The standard for event technology, industry and all public applications
• Heavy duty non-slip all-round cable protectors made out of black, recyclable polyurethane with integrated carrying handles
• Yellow polyurethane cover with high warning effect and secure locking
• Patented self-cleaning hinged cover
• Resistant to oil, acid, petrol and short-term contact with solvents
• Reliable cable, hose and personal protection for indoor and outdoor use
• End caps for safe cable entry and exit available as accessories

Specifications:

• Product type: Cable Protector - Straight
• 4 Channels: 1: 80 x 36 mm for C-pressure hoses ; 3: 34 x 36 mm
• Dimensions: 87 x 53.8 x 5.5 cm
• Load bearing capacity: approx. 5 ton / 20 x 20 cm
• Material: Polyurethane (Recyclable)
• Weight: 13.5 kg
• Hardness: 88 Shore ± 4 A Shore
• Fire protection class: Class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
• Temperature Range: -30°C to 60°C
• DEKRA-certified
