CM CLIPFIX 35-5 End Clamp

CM Clipfix 35-5 End Clamp

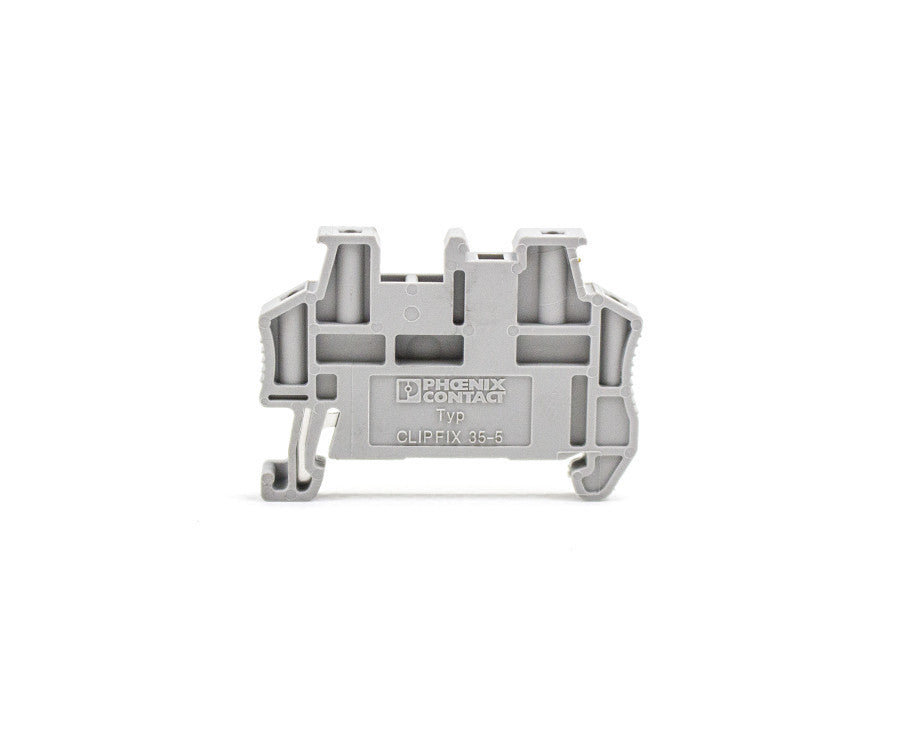

The CM Clipfix 35-5 End Clamp, Product No. 10001408, is a specialized component designed for use in Columbus McKinnon (CM) hoisting equipment.

Key Features:

• Purpose: This end clamp is essential for securing terminal blocks onto DIN rails within electrical enclosures, ensuring stability and proper alignment of the electrical components in CM hoists.

• Design: The CLIPFIX 35-5 is a quick-mounting end clamp for NS 35/7.5 and NS 35/15 DIN rails with a marking option, providing a secure end stop that prevents lateral movement of terminal blocks and other rail-mounted devices.

• Compatibility: Suitable for integration into various CM hoist models and control panels. It's advisable to confirm compatibility with your specific equipment before installation.

• Durability: Grey polyamide end clamp, 5.15 mm wide, built for use in industrial control panels.

Technical Specifications (Phoenix Contact data):

• Type: Quick-mounting end clamp (CLIPFIX 35-5)
• Rail: NS 35/7.5 and NS 35/15 DIN rails
• Width: 5.15 mm
• Height: 48.6 mm
• Depth: 35.3 mm
• Material: Polyamide
• Colour: Grey

Applications:

The CM Clipfix 35-5 End Clamp is integral to the electrical systems of CM hoisting equipment, enabling efficient wire management and secure mounting of terminal blocks, which are crucial for the safe and effective operation of the hoist.

Availability:

This product is available through authorized CM distributors and select online retailers.

Note: Proper installation of the end clamp is vital for the safe operation of your hoist's electrical system. Consult the equipment's manual or seek assistance from a qualified technician to ensure correct installation.

For more detailed information or to purchase the CM Clipfix 35-5 End Clamp (Product No. 10001408), please contact our support team.
