Prolyte H40R Rectangle Truss

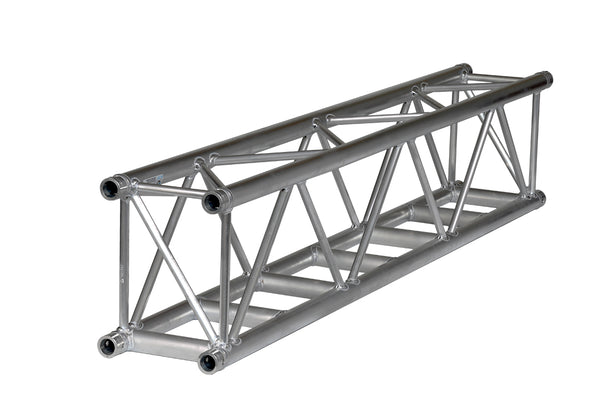

The H40R truss is a rectangular standard H40 truss constructed of main tubes (48,3 x 3 mm) and diagonals (20 x 2 mm) and is equipped with the CCS6 conical coupling system.

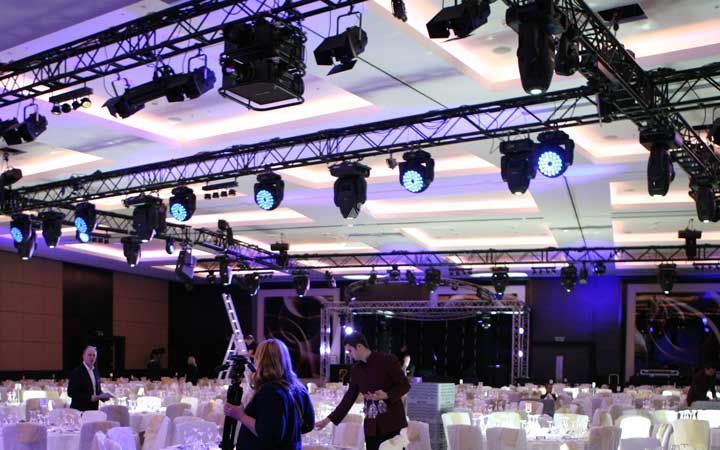

The compact and strong the H40R has three-sided webbing. The thicker braces on the bottom side allow easy mounting of moving heads and central loading, reducing the torsion effect resulting from one-sided loading in standard trusses.
The spigot orientation follows that of the S series truss, allowing easy assembly while the truss is still on the floor. The H40R is available in all standard lengths as well as a box-corner, a box corner attachment and the H40R MPT adapter; completing the H40R range to a convenient and flexible range.
| LOADING TABLE | |||||
|
Span
|
Maximum Uniformly Distributed Load | Maximum Centre Point Load | |||
| Length (m) | Total Weight (kg) | Load (kg/m) | Deflection (mm) | Load (kg/m) | Deflection (mm) |
| 3 | 20.7 | 835.3 | 7 | 2198.8 | 6 |
| 6 | 41.4 | 414.4 | 29 | 1234.1 | 23 |
| 9 | 62.1 | 217.8 | 65 | 861 | 52 |
| 12 | 82.8 | 119.7 | 116 | 652.2 | 93 |
| 15 | 103.5 | 74.3 | 182 | 516.7 |
146 |
Download the full loading table - User Manual
Advantages:
-
Reduced volume in storage and transport - 25% Reduction in volume compared with H40V
-
Easy cross-span creation
-
Available in all standard lengths
-
Easy mounting of moving heads
-
Central loading - reduced torsion effect
-
Easy assembly due to pin direction
Specifications:
-
Alloy: EN AW 6082 T6
-
Main Tubes: 48 x 3 mm
-
Braces: 20 x 2 mm
-
Coupling System: CCS6
-
Dimensions: 339 mm (W) x 239 mm (H) (Centre to Centre) & 387 mm (W) x 287 mm (H) (Connection Outside)
