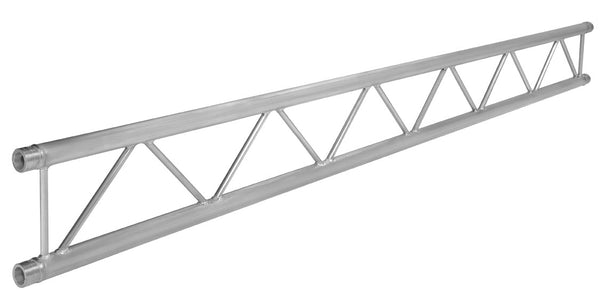

• Prolyte H30 Ladder Truss

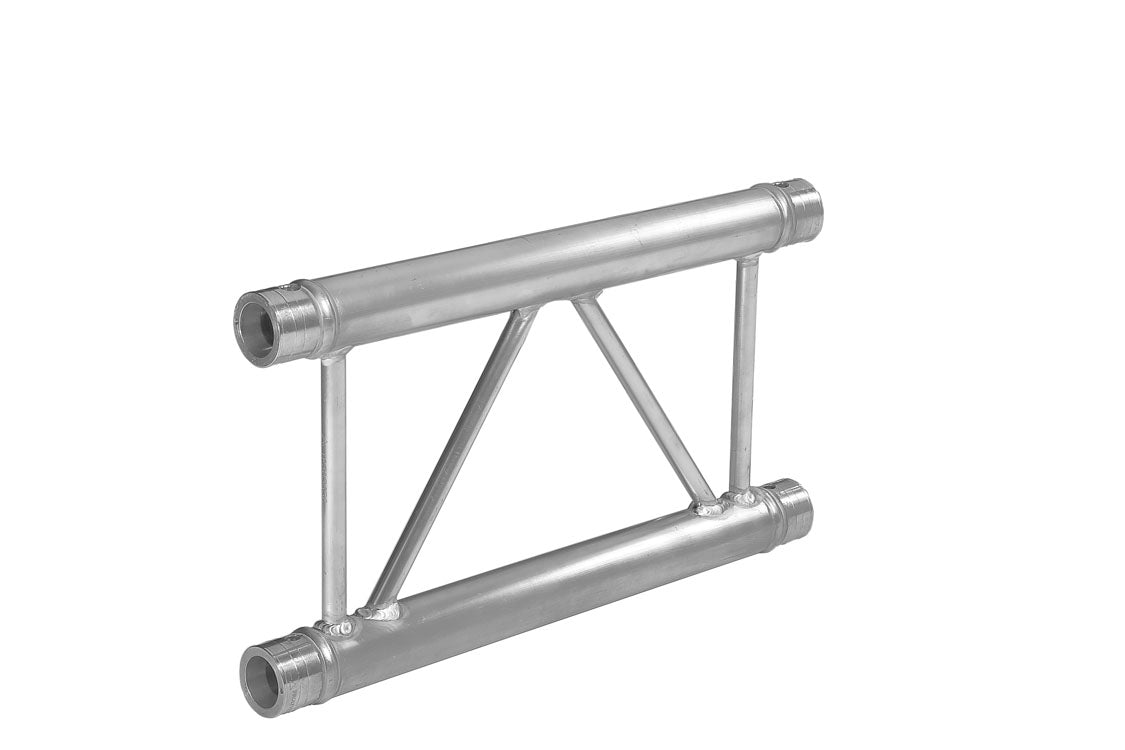

  • Prolyte H30 Ladder Truss
  • Prolyte H30 Ladder Truss Certification

Prolyte H30L Ladder Truss

Product No. H30L-L025

LENGTH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

Prolyte H30L Ladder Truss

H30 Series truss is constructed of main tubes (48.3 x 3 mm) and diago­nals (16 x 2 mm). Equipped with the CCS6 conical coupling system, it is fast and easy to assemble. It can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities make it well loved and much used. Prolyte H30 Truss is available in triangular and square profiles and a range of corners and accessories. Widely used in the installation, rental and exhibition market. Various lengths are available (Some are currently out of stock). For any inquiries, please contact us via chat.

NOTES: IN-STOCK PRODUCTS WILL SHIP WITHIN 3 BUSINESS DAYS; SOME PRODUCTS MAY TAKE LONGER

LOADING TABLE (SPAN SUPPORTED AT EACH END)
Span
Maximum Uniformly Distributed Load Maximum Centre Point Load
Length (m) Load (kg/m) Deflection (mm) Load (kg/m)
1 979.2 1 979.2 0
2 389 1 389 0
3 156 2 234 0.1
4 73 3 156 0.1
5 36 4 90 0.1
6 15 3 45 0.1

 Download full loading table - User Manual - TUV Certificate

Features:

  • Tüv certification

  • Fast and easy assembly

  • Lightweight system

  • Worldwide availability

  • Versatile application

      Specifications:

      • Alloy: EN AW 6082 T6

      • Main Tubes: 48 x 3 mm

      • Braces:16 x 2 mm

      • Coupling System: CCS6

      For more technical information and practical tips, please browse Prolyte Group Blackbook.
