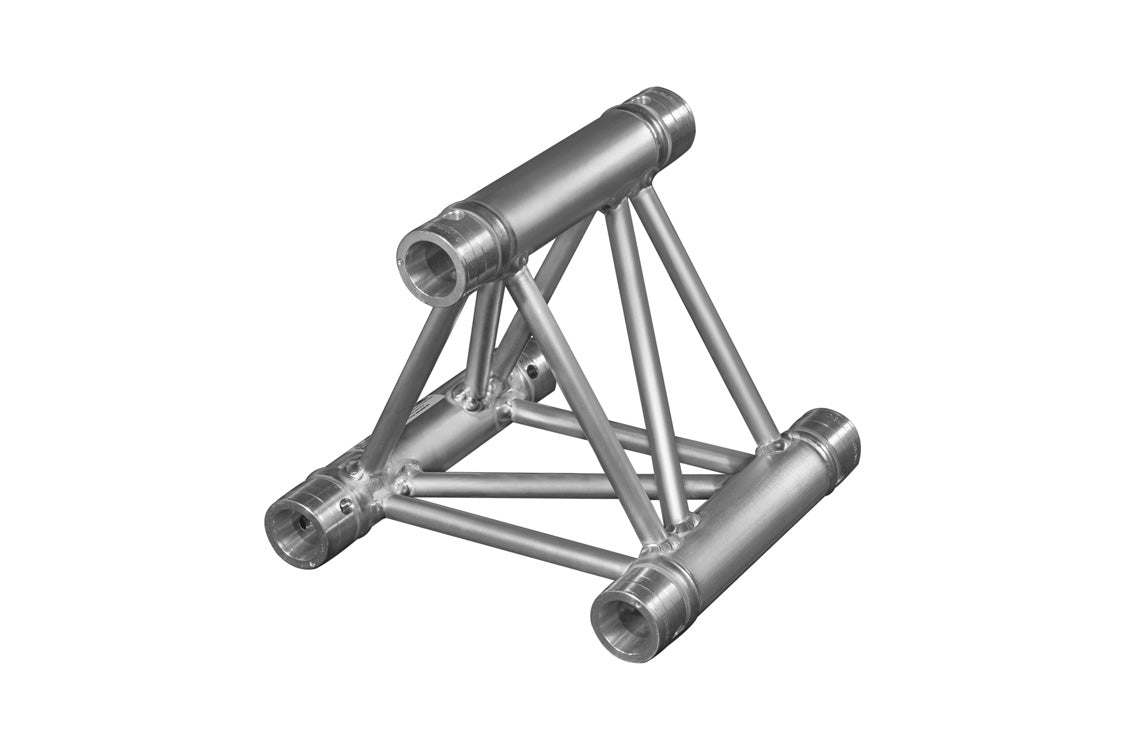

Prolyte H30D Triangle Truss

Product No. H30D-L025

LENGTH
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

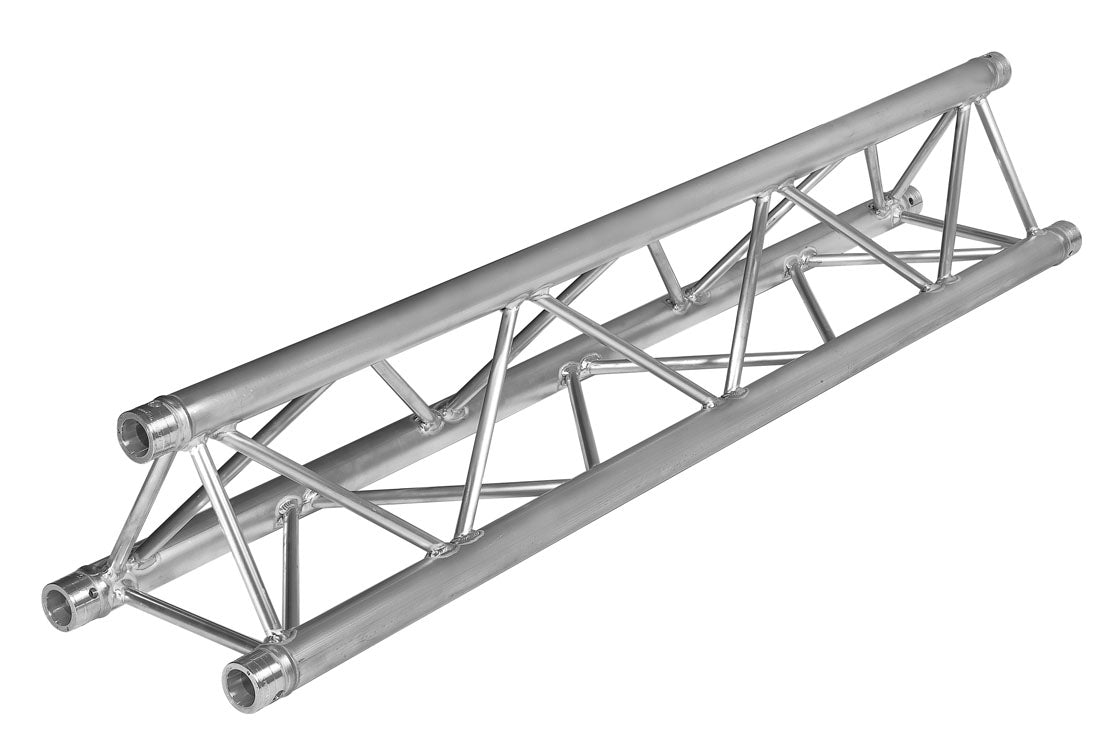

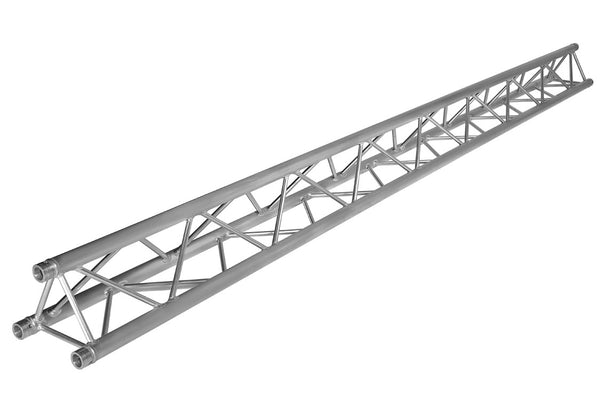

H30 Series truss is constructed of main tubes (48,3 x 3 mm) and diago­nals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the H30 truss is fast and easy to assemble. The H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss is available in triangular and square profiles and a range of corners and accessories. The H30D Triangle Truss is available in lengths ranging from 0.25 meters up to 5 meters.

IN-STOCK PRODUCTS WILL SHIP WITHIN 3 BUSINESS DAYS; SOME PRODUCTS MAY TAKE LONGER

LOADING TABLE
Span
Maximum Uniformly Distributed Load Maximum Centre Point Load
Length (m)
Total Weight (kg) Load (kg/m) Deflection (mm) Load (kg/m) Deflection (mm)
3 15 562.4 13 782.3 11
6 30 149.5 53 413.6 42
9 45 63.9 118 273 95
12 60 34 211 196.5 169
15 75 20.1 329 146.9 263
Download full loading table
