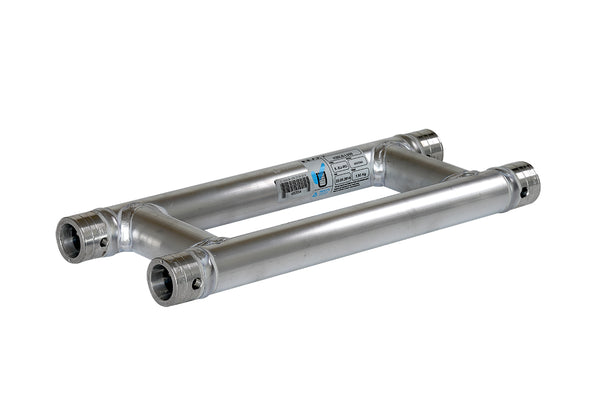

Prolyte H20LB Ladderbeam Truss Length
In stock
Length:
0.5 m
Accepted payment methods
Please enter correct zip code
shipping

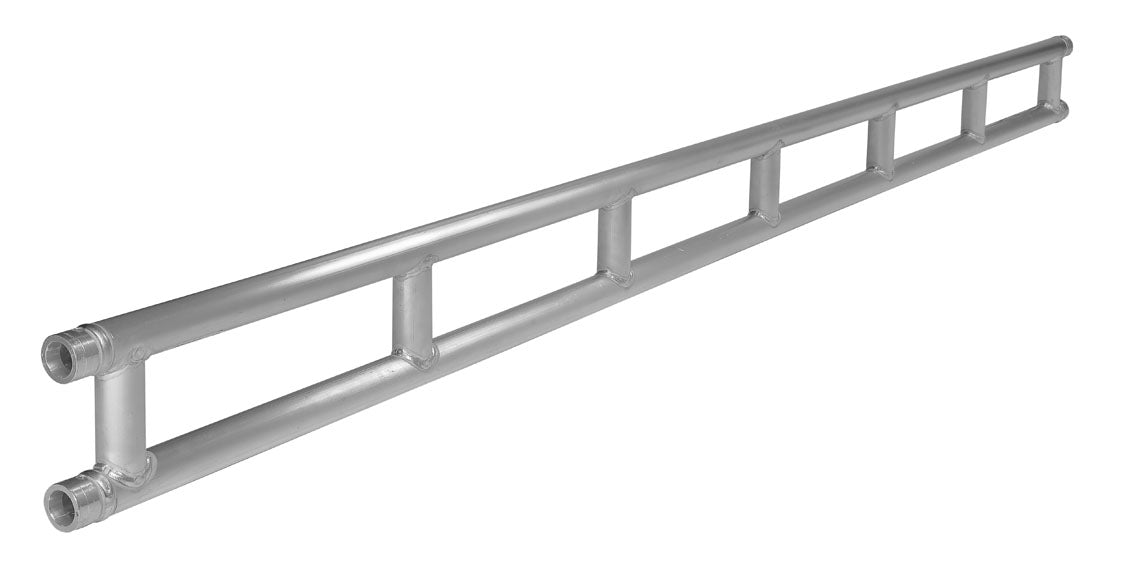

H20LB Series truss is constructed with both main tubes and diagonals (48,3 x 3 mm). Equipped with the CCS6 conical coupling system, the H20LB truss is fast and easy to assemble. The H20LB truss is a frame girder, without diagonal bracing and with rigid joints between top and bottom chords and verticals. The H20LB is designed to create matrix frames for circumstances with low headroom, like studio installations. Standard box corner ribs make it a complete and flexible system. The H20LB truss is available in lengths ranging from 0.5 meters to 3.5 meters.
IN-STOCK PRODUCTS WILL SHIP WITHIN 3 BUSINESS DAYS; SOME PRODUCTS MAY TAKE LONGER
| LOADING TABLE | |||
| Span Length (m) | Total Weight (kg) | Maximum Uniformly Distributed Load (kg/m) | Maximum Centre Point Load (kg/m) |
| 1 | 3.3 | 620 | 420 |
| 1.5 | 4.6 | 350 | 350 |
| 2 | 5.9 | 160 | 240 |
| 2.5 | 7.2 | 150 | 200 |
| 3 | 8.5 | 120 | 190 |
| 3.5 | 8.9 | 90 | 170 |
| 4 | 9.8 | 70 | 150 |
| 4.5 | 11.2 | 60 | 130 |
| 5 | 12.7 | 45 | 110 |
