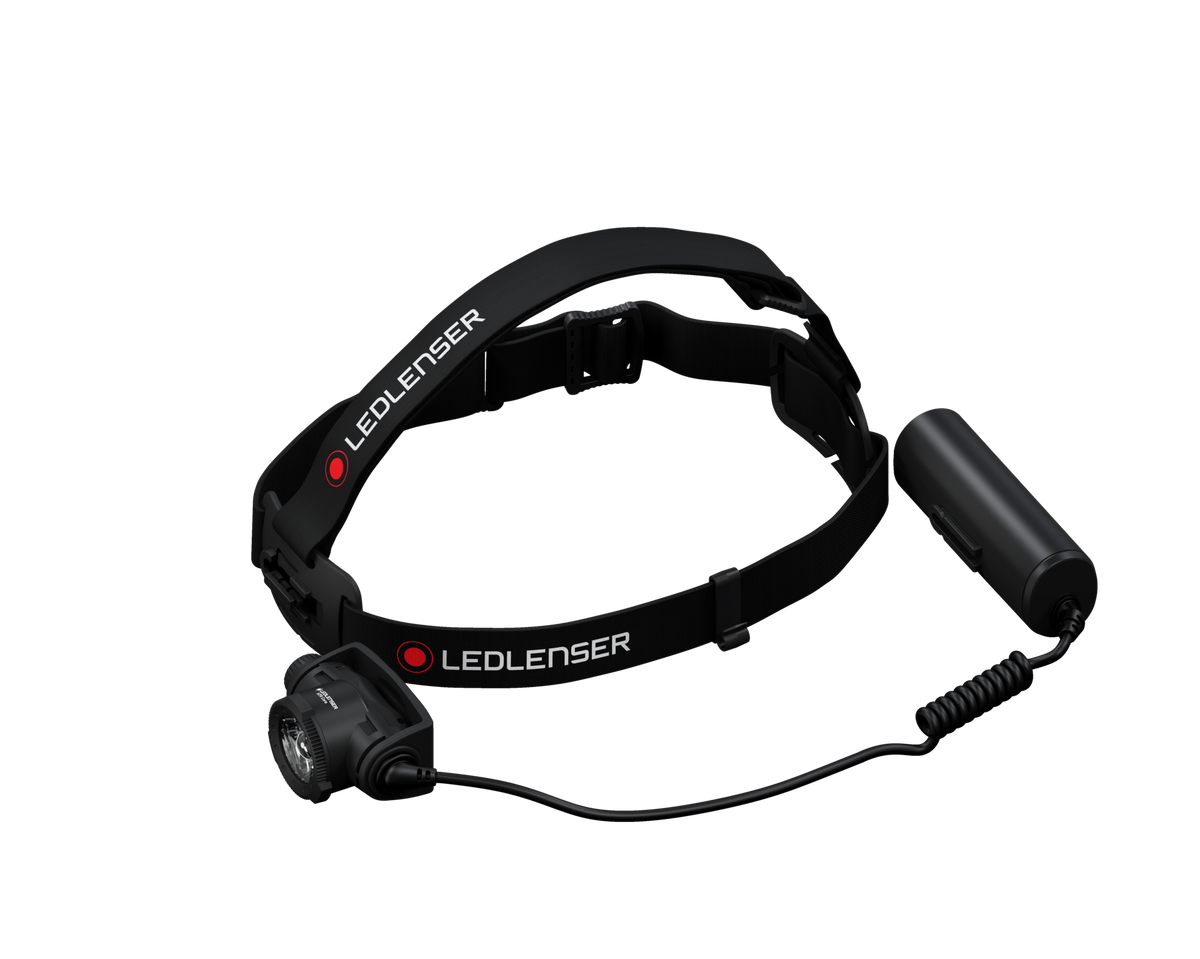

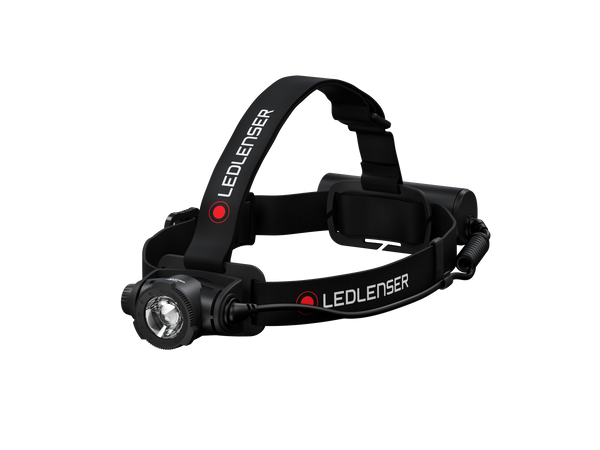

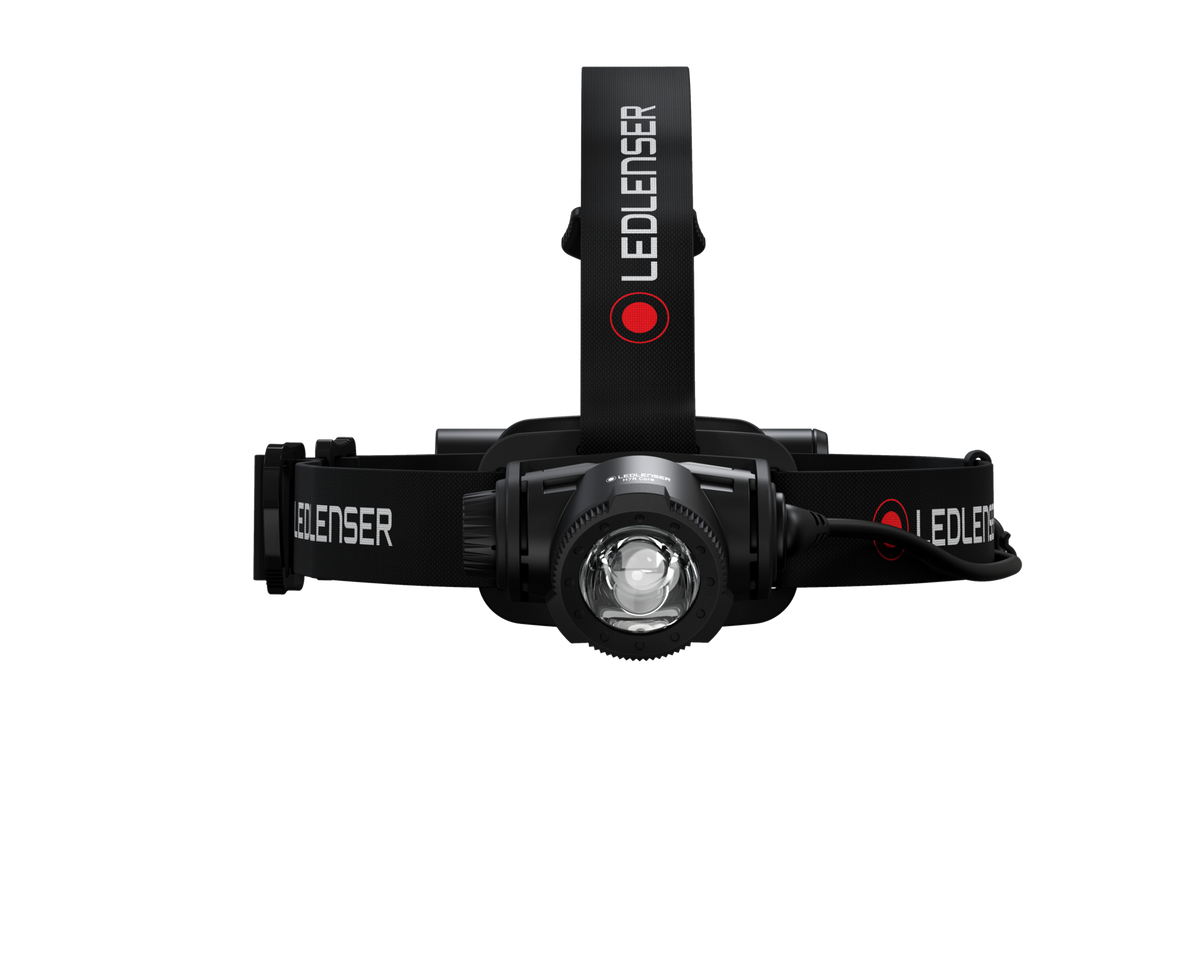

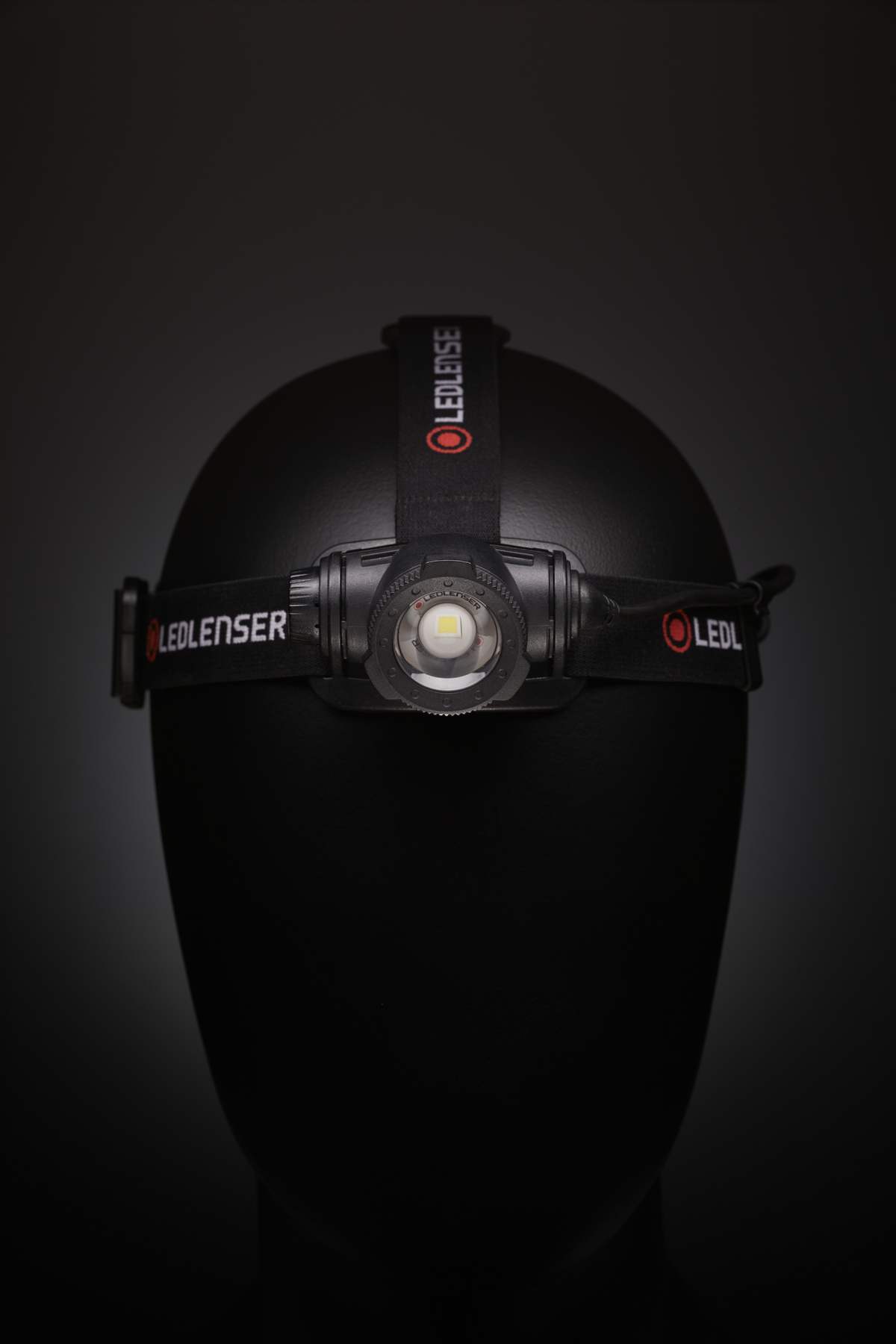

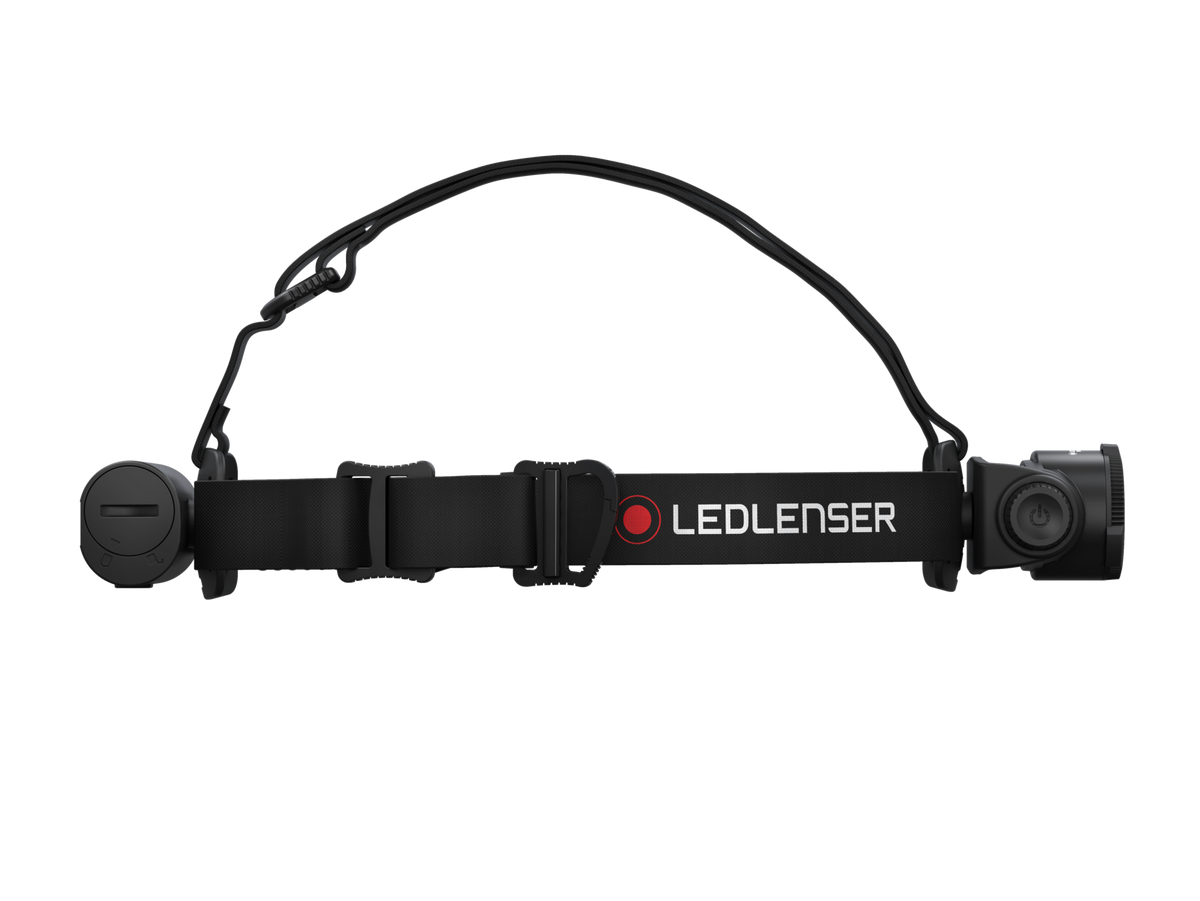

Ledlenser Headlamp H7R Core
The Ledlenser H7R Core is a high-performance, all-purpose headlamp designed for demanding use. With its continuously dimmable output and patented³ Advanced Focus System, this headlamp offers seamless transition from a wide floodlight to a sharply focused beam for long-distance vision.
Its 130° rotating lamp head, durable aluminum alloy body, quick magnetic charging, and IP67-rated dust and water protection make it a reliable lighting tool in any environment. Whether you're on a job site or exploring the outdoors, the H7R Core delivers dependable, hands-free illumination.
Downloads:
Safety Instructions and Warnings
Key Features:
- Compact, powerful and versatile headlamp with patented³ Advanced Focus System
- Magnetic Charge System for quick and convenient battery charging
- Continuous dimming and intuitive control via Wheel Switch

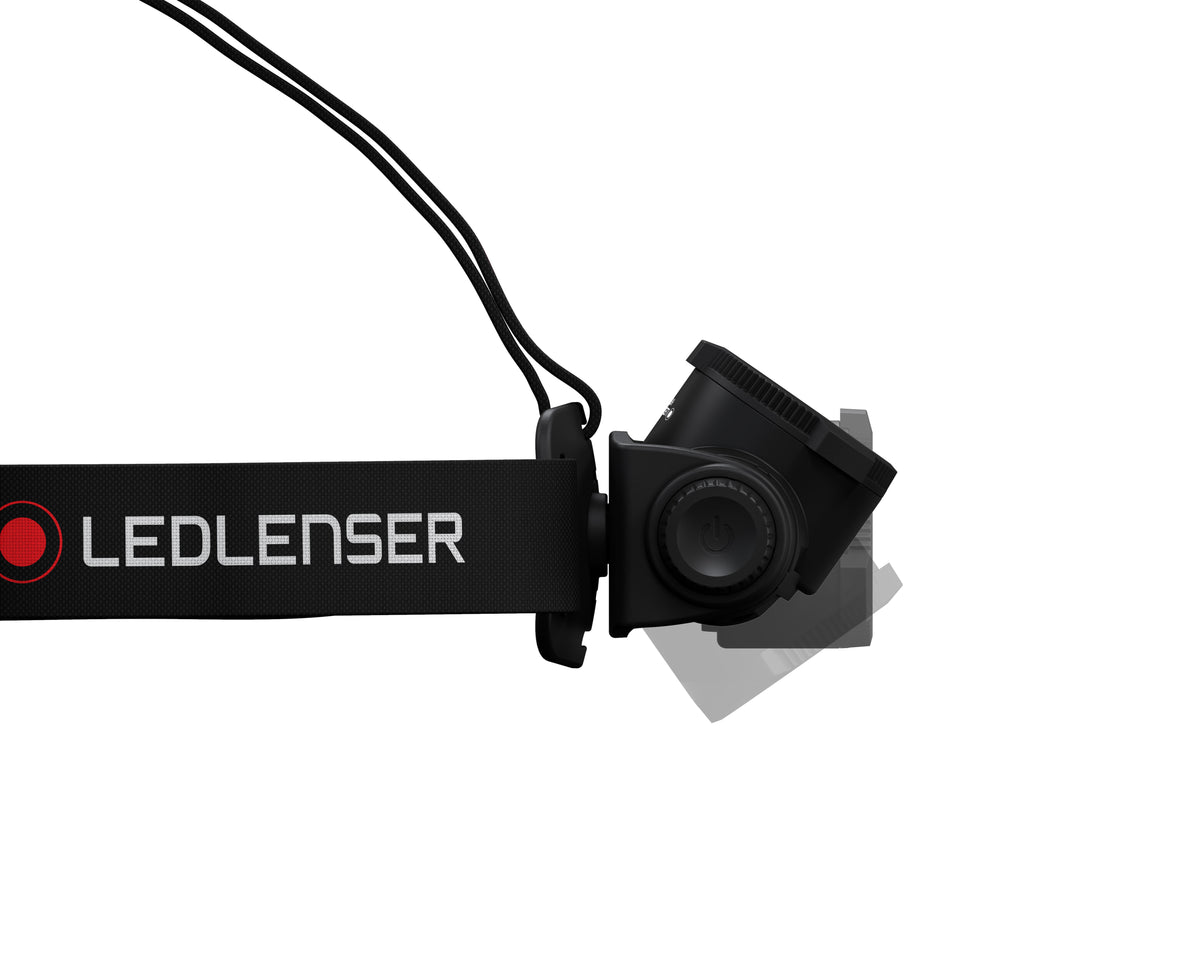

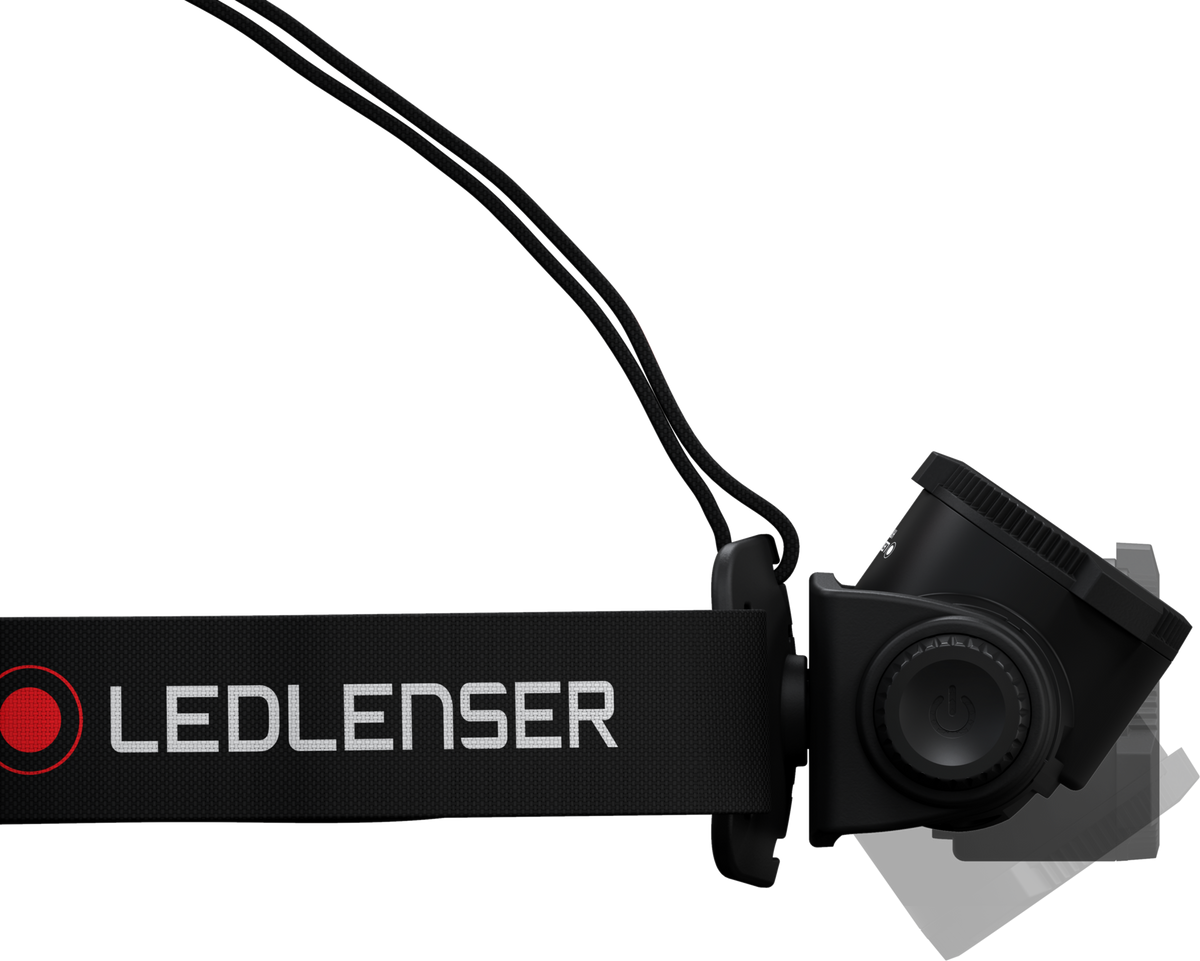

- Lamp head rotates up to 130 degrees
- Flex Sealing Technology for IP67-rated protection against dust and water
References:
- Rechargeable with up to 65 hours runtime
- Maximum beam distance: 250 meters
- Maximum luminous flux: 1000 lumens
LED
| Beam distance (in m)1 | 250 |
| Max. Luminous flux (in lm)1 | 1000 |
| CRI | 70 |
| Lightsource color temperature | 6000 - 7500 |
| Boost | Power | Low power | |
| Luminous flux (in lm) | 1000 | 600 | 15 |
| Beamdistance (in m) | 250 | 200 | 25 |
| Runtime (in h) | - | 4 | 65 |
Power supply
| Runtime (in hours)1 | 65 |

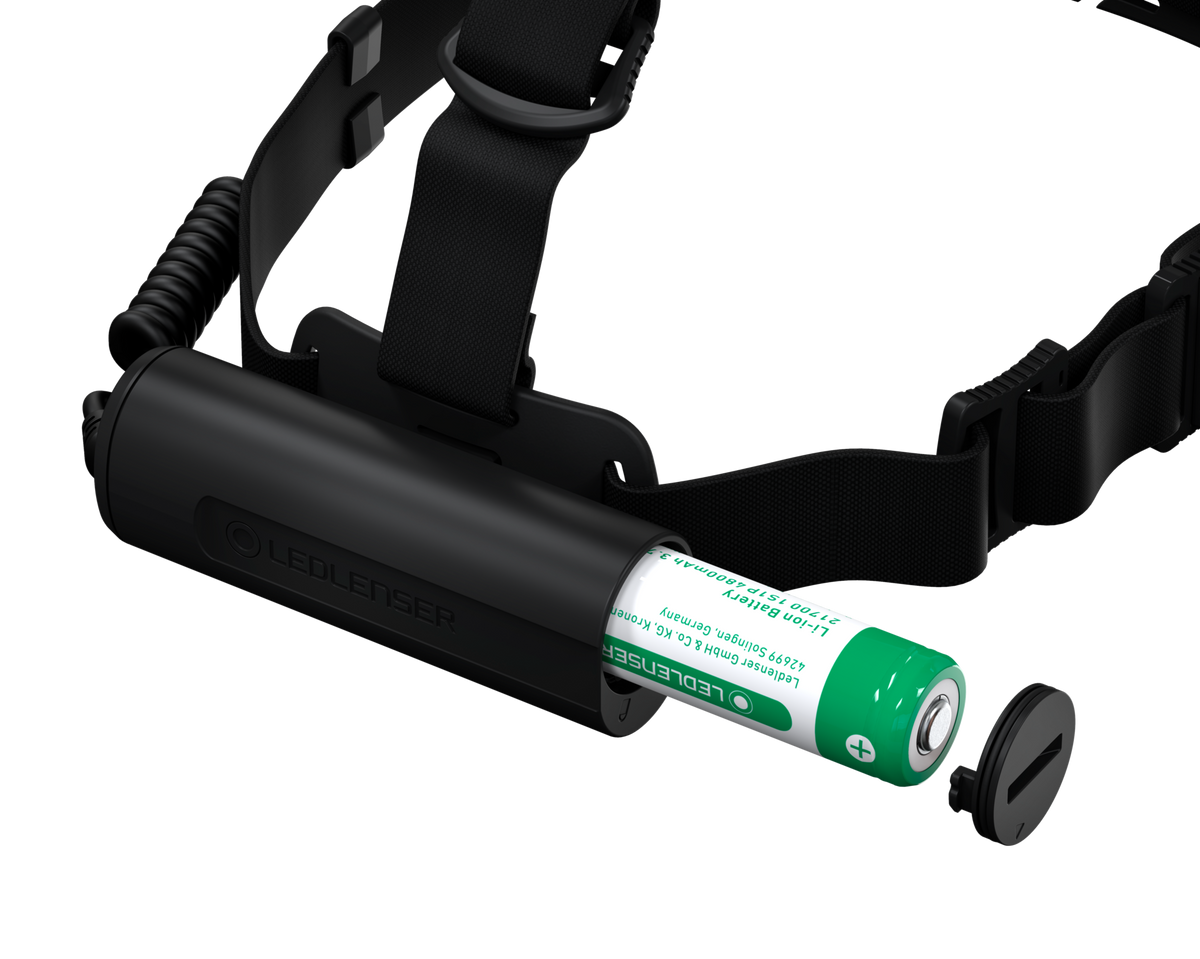

| Rechargeable | Yes |
| Charging time (in minutes) | 210 |
Case
Dimensions
| Weight (in g) | 259 |
Material
| Materials | Aluminum alloy |
| Water and dust resistance | IP67 |
| Drop test height (in m) | 1.5 |
| Working temperature (in C°) | -20 - 40 |
