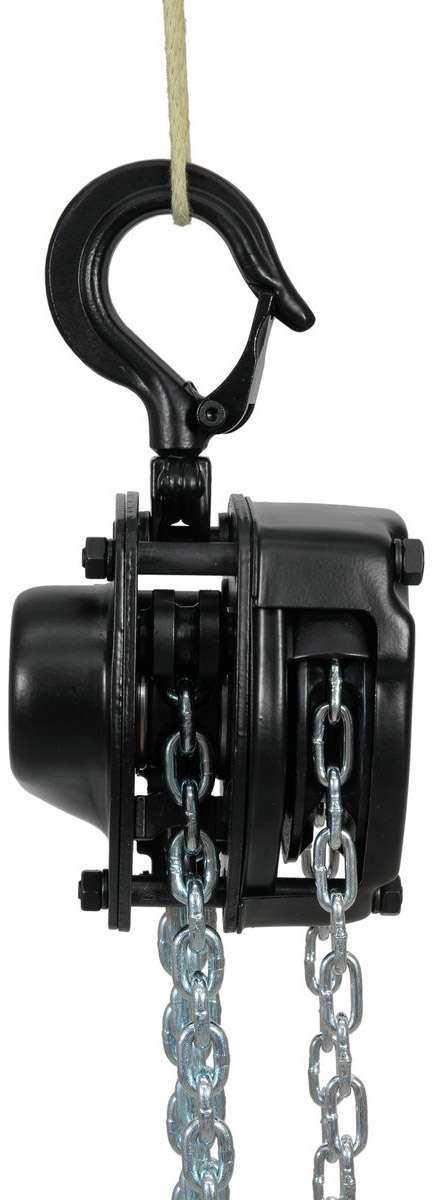

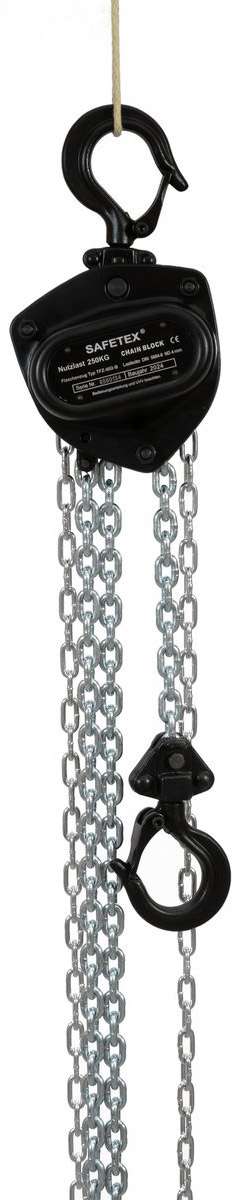

Safetex Spur Gear Chain Hoists 250 kg MINITYPE with Chain Container

Safetex Spur Gear Chain Hoists 250 kg MINITYPE with Chain Container

The Safetex 250 kg MINITYPE spur gear chain hoist with chain container stands out thanks to its compact design, high-quality craftsmanship, and safety standards tailored for daily use in professional environments. The black-painted steel housing offers reliable protection against external influences, while the galvanized hand and load chains ensure easy and safe operation. Swivel hooks provide maximum flexibility when lifting and lowering loads. The integrated chain container ensures tidy chain guidance and minimizes the risk of tangling or damage.

Description:

• Load capacity of 250 kg for professional use in light to medium lifting tasks
• Black-painted steel housing for high durability and resistance
• Swiveling device and load hooks for flexible and secure handling
• Load chain: 4 mm, galvanized, compliant with DIN EN 818-7, Grade 8
• Hand chain: galvanized, 3×15 mm dimensions, for manual lifting and lowering

Specifications:

• Model: MINITYPE with chain container
• Load capacity: 250 kg
• Housing material: Steel, black-painted
• Load chain: 4 mm galvanized, DIN EN 818-7, Grade 8
• Hand chain: 3×15 mm galvanized

References:

• TFZ-002-B-03.00 - 03.00-KS – 3 m load/hand chain – 4.82 kg
• TFZ-002-B-04.00 - 04.00-KS – 4 m load/hand chain – 5.70 kg
• TFZ-002-B-05.00 - 05.00-KS – 5 m load/hand chain – 6.58 kg
• TFZ-002-B-06.00 - 06.00-KS – 6 m load/hand chain – 7.46 kg
• TFZ-002-B-07.00 - 07.00-KS – 7 m load/hand chain – 8.35 kg
• TFZ-002-B-08.00 - 08.00-KS – 8 m load/hand chain – 9.23 kg
• TFZ-002-B-09.00 - 09.00-KS – 9 m load/hand chain – 10.11 kg
• TFZ-002-B-10.00 - 10.00-KS – 10 m load/hand chain – 11.01 kg
• TFZ-002-B-11.00 - 11.00-KS – 11 m load/hand chain – 11.89 kg
• TFZ-002-B-12.00 - 12.00-KS – 12 m load/hand chain – 12.77 kg
