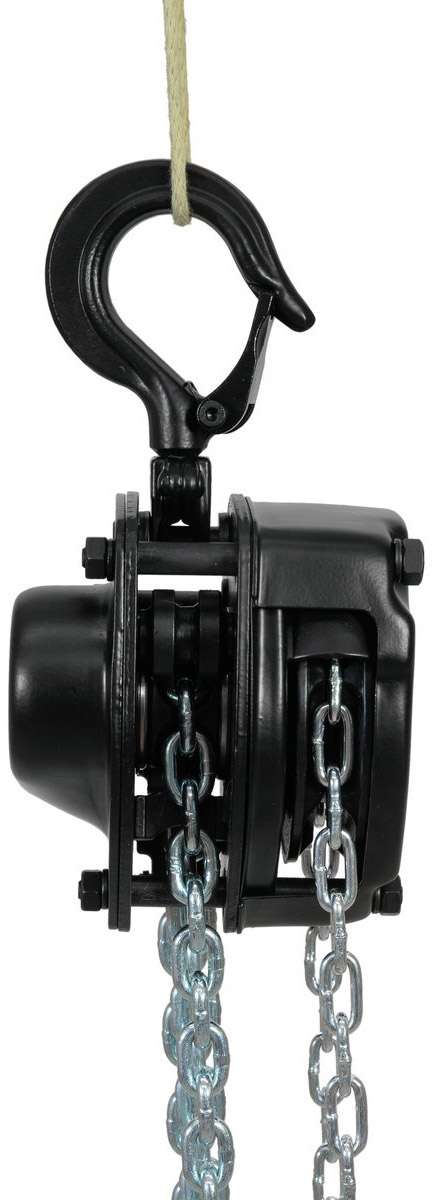

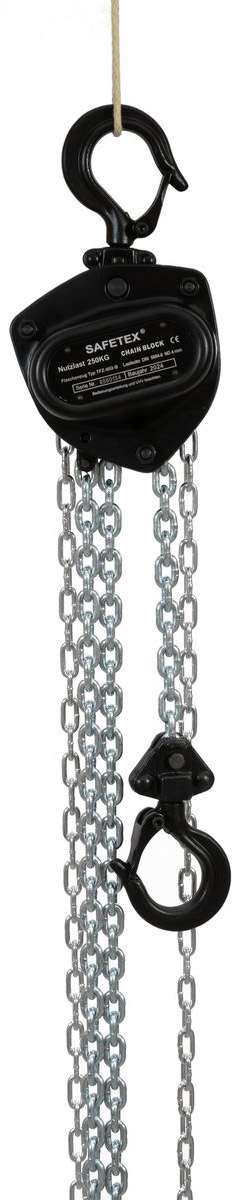

Safetex Spur Gear Chain Hoist 250 kg, MINITYPE

Safetex Spur Gear Chain Hoist 250 kg MINITYPE

The Safetex Spur Gear Chain Hoist 250 kg MINITYPE is the perfect choice for precise manual lifting in industrial, workshop, and assembly environments. With a load capacity of up to 250 kg, this unit stands out with its compact design, high reliability, and user-friendly operation. The black-painted steel housing ensures durability, while the swiveling top and load hooks offer versatile application options. Operation is carried out via a galvanized hand chain, supported by a high-quality load chain in compliance with DIN EN 818-7, Grade 8 – ensuring maximum safety in every use.

Thanks to its long-lasting construction, the MINITYPE is ideal for demanding lifting tasks where quality and functionality are essential.

Description:

• Load capacity up to 250 kg
• Durable housing made of black-painted steel
• Swiveling top and load hooks for convenient operation
• Galvanized load chain (4 mm) according to DIN EN 818-7, Grade 8
• Manual operation via galvanized hand chain (3×15 mm)

Specifications:

• Load capacity: 250 kg
• Load chain: 4 mm galvanized, DIN EN 818-7, Grade 8
• Hand chain: 3×15 mm galvanized
• Housing: Steel, black-painted
• Hooks: Swiveling top and load hooks

References:

• TFZ-002-B-03.00 - 03.00 – 3 m load/hand chain – 4.82 kg
• TFZ-002-B-04.00 - 04.00 – 4 m load/hand chain – 5.70 kg
• TFZ-002-B-05.00 - 05.00 – 5 m load/hand chain – 6.58 kg
• TFZ-002-B-06.00 - 06.00 – 6 m load/hand chain – 7.46 kg
• TFZ-002-B-07.00 - 07.00 – 7 m load/hand chain – 8.35 kg
• TFZ-002-B-08.00 - 08.00 – 8 m load/hand chain – 9.23 kg
• TFZ-002-B-09.00 - 09.00 – 9 m load/hand chain – 10.11 kg
• TFZ-002-B-10.00 - 10.00 – 10 m load/hand chain – 11.01 kg
• TFZ-002-B-11.00 - 11.00 – 11 m load/hand chain – 11.89 kg
• TFZ-002-B-12.00 - 12.00 – 12 m load/hand chain – 12.77 kg
