DOUGHTY STUDIO RAIL ALUMINIUM RAIL SYSTEM

Studio Rail 60 is an extruded aluminium rail available with all the components necessary for a comprehensive overhead studio rail system. Besides curtain, Doughty Studio Rail that can support a maximum load of 100kg between brackets can be used for hanging heavier equipment like pantographs or for use as a studio lighting rail.

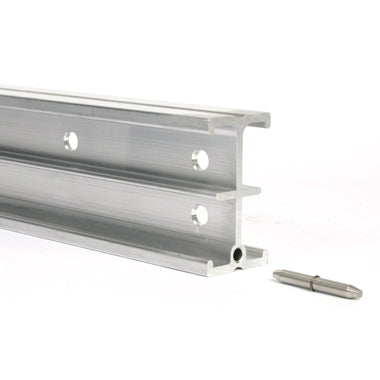

It features a unique joint pin system which aids assembly and joint alignment. Studio Rail 60 is available in 4 standard lengths from 2 to 6 metres and in 2 finishes, natural aluminium and black anodized. The curved track is also available in different sizes. Special lengths are also available on request.

It can be cut to length on-site and there is a drilling jig available to easily re-drill the joint holes accurately. The studio rail lighting system was installed in the British Museum. If a more heavy-duty studio rail is needed, Doughty Studio Rail 80 that can support loads up to 200kg is ideal. For any inquiries, please contact us via chat.

Doughty Studio Rail User Manual - Gallery

Features, Benefits & Specifications of Doughty Studio Rail 60

• Easy and fast installation.
• Lanes easy to modify the installation.
• Low weight when dealing with aluminium systems
• Wide range of brackets for flexible applications
• Length & Weight: 2m(2.9kg), 3m(4.3kg), 4m(5.8kg) and 6m(8.6kg)
• Max Load between brackets: 100 KG
• Material: Aluminum
• Finish: Natural Aluminium and Black

A Wide Range of Rail Accessories

Discover the full list of Doughty Studio Rail accessories for the unique adaptability to your needs.

• Ceiling Bracket (25mm and 50mm)

• Corner Bracket with Wall Tie Option

• 90 Crossover Bracket
• Spacer Plate

• Extension Bracket (Angle)
• Extension Bracket (Length)

• Joiner Kit
• Joint Pins
• Plastic End Stops

• Studio Rail Clamps (100mm and 40mm)

• Wall Bracket (200mm, 350mm and 500mm)

• Cable Carriage

• Curtain Carriage
• Nylon Twin Hook

• Cupped Curtain Brake

• 4 Wheel Carriage
• 6 Wheel Carriage
• Studio Rail Swivel Arm
• 4 Wheel Double Swivel Car
• Studio Rail Articulated Carriage

• Studio Rail to Tube Bracket

• Studio Rail Drilling Jig
• Operating Poles

Doughty Studio Rail Set Up
