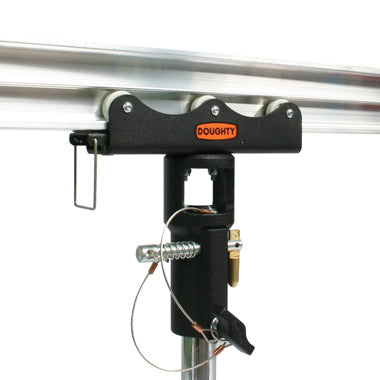

Doughty Studio Rail - 6 Wheel Carriage with a 28mm Receiver
Incl. VAT. Shipping calculated at checkout.
- 6 wheel carriage with friction brake. Versions for Doughty Studio Rail 60 (T84205) and 80 (T85205).
- 28 mm three-point receiver. Suspends equipment with a 28 mm Euro or DIN spec spigot.
- Three safety points. 6 mm pin for initial load, sword pin for 360-degree rotation and a Doughty locking knob.
- WLL 100 kg. Both versions are rated 100 kg, with a black powder finish.
Accepted payment methods
shipping
Doughty Six Wheel Carriage
Studio Rail is a rail system equipped with sliding carriages. The carriages are designed to support a variety of fittings, typically luminaires and curtains/ drapes. This 6 wheel carriage is fitted with a friction brake and a three-point 28mm receiver to suspend equipment fitted with a 28mm diameter Spigot of either Euro or Din Spec.
The 3-point Receiver has been carefully designed to incorporate the following three safety points.
- A 6mm diameter pin designed to take the initial load quickly and safely.
- Our standard sword pin allowing 360-degree rotation.
- A Doughty knob which enables the luminaire to be locked at a chosen point of rotation.
Options are available for studio rails 60 & 80.
Difference between size 60 and size 80: Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.
User Manual & Cert - Installation Gallery
Specifications of studio rail 80's 6-wheel carriage (T85205)
- WLL: 100 Kg
- Receiver: For 28mm spigots (29mm internal diameter)
- Weight: 1.2kg
- Length: 224mm
- Material: Mild steel
- Finish: Powder coated black
Specifications of studio rail 60's 6-wheel carriage (T84205)
- WLL: 100 Kg
- Safety Factor: 5:1
- Receiver: For 28mm spigots (29mm internal diameter)
- Weight: 1.1kg
- Length: 170mm
- Material: S275 mild steel and AW6082 aluminium
- Finish: Powder painted black
