Doughty Studio Rail - 4 Wheel Carriage with Spigot

Doughty Engineering


Studio Rail Option

Doughty Studio Rail - 4 Wheel Carriage w/Spigot

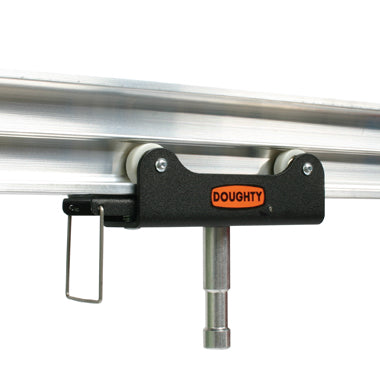

A four-wheel carriage is fitted with a 16mm diameter spigot to accept a 16mm diameter receiver. A friction brake is also fitted with a wire loop to allow the carriage to be moved with an operators pole. Two sizes of Spigots are available for studio rails 60 & 80.

Difference between size 60 and size 80: Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.

Specifications of Size 80 4-wheel carriage:

  • SWL: 200 Kg
  • Length of 16mm Spigot:
    Standard(T85185): 70mm

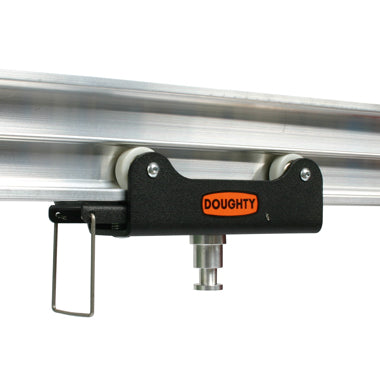

    Mini(T85186): 30mm
  • Weight:
    Standard(T84185): 0.5kg
    Mini(T84186): 0.45kg
  • Length of the Carriage: 125mm

Specifications of Size 60 4-wheel carriage:

  • SWL: 50 Kg
  • Length of 16mm Spigot:
    Standard(T84185): 70mm
    Mini(T84186): 30mm
  • Weight:
    Standard(T84185): 0.6kg
    Mini(T84186): 0.5kg
  • Length of the Carriage: 159mm
