Doughty Studio Rail - Suspension Bracket

Product No. T84117

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price €55.59 excl. €12.79 VAT €68.38 incl. €12.79 VAT
Unit price  per
NO. OF STUDIO RAILS TO BE HUNG
STUDIO RAIL OPTIONS
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

Doughty Studio Rail - Suspension Bracket

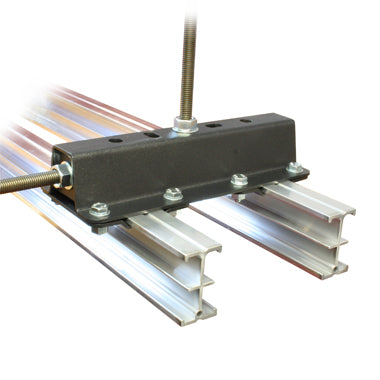

The Suspension Bracket enables two or three Doughty Studio Rail size 60 and size 80 to be suspended from one suspension point.

The rails are spaced at the Studio Rail standard 150mm centers.

The option to use a side fixing is standard with this bracket enabling grids or perimeter rails to be steadied with wall fixings.

Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.

For any inquiries, please contact us via chat.


Specifications - Studio Rail 80

  • SWL: 100Kg

Specifications - Studio Rail 60

  • SWL: 100Kg
  • Fixing Holes: 13mm Diameter
  • Width: 100mm
  • Length:

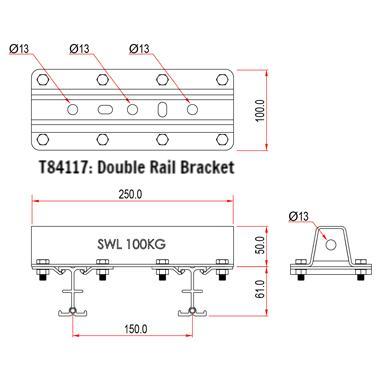

    T84117 (Double Rail Bracket): 250mm

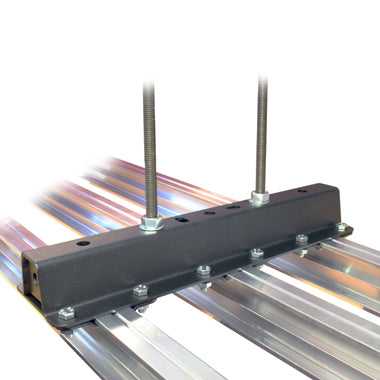

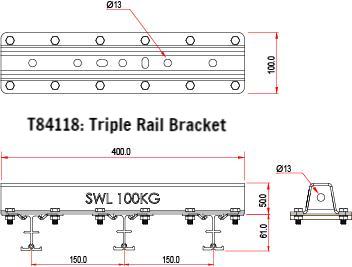

    T84118 (Triple Rail Bracket): 400mm

Please refer to the images for more details.
