DOUGHTY STUDIO RAIL CURVED SECTION

Studio Rail 60 is an extruded aluminium rail available with all the components necessary for a comprehensive overhead studio rail system. Besides curtain, Doughty Studio Rail with higher load support than Doughty rail can be used for hanging heavier equipment like pantographs or for use as a studio lighting rail that was used in the British Museum.

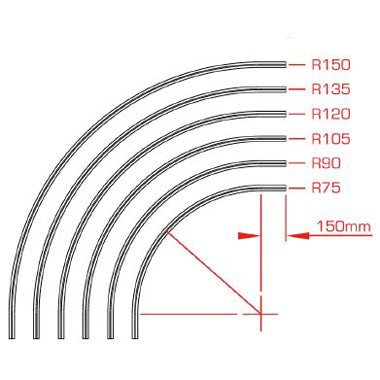

It features a unique joint pin system which aids assembly and joint alignment. Studio Rail 60 is available in 6 standard radii and in 2 finishes, natural aluminium and black anodized. Special lengths are available on request. The straight track is also available in different sizes.

The Studio Rail curves designed with a 150mm straight lead-in and out-to enable a simple installation with standard joiners. If a more heavy-duty studio rail is required, size 80 is an ideal option that can support a load between brackets up to 200 kg that doubles studio rail 60's capacity. For any inquiries, please contact us via chat.

Doughty Studio Rail User Manual - Gallery

Features, Benefits & Specifications of Doughty Studio Rail

• Easy and fast installation.
• Lanes easy to modify the installation.
• Low weight when dealing with aluminium systems
• Wide range of brackets for flexible applications
• Radius & Weight:
  75cm(2.15kg), 90cm(2.49kg), 105cm(2.83kg), 120cm(3.18kg), 135cm(3.51kg) and 150cm(3.85kg)
• Material: Aluminum
• Finish: Natural Aluminium and Black

A Wide Range of Rail Accessories

Discover the full list of Doughty Studio Rail accessories for the unique adaptability to your needs.

• Ceiling Bracket (25mm and 50mm)

• Corner Bracket with Wall Tie Option

• 90 Crossover Bracket
• Spacer Plate

• Extension Bracket (Angle)
• Extension Bracket (Length)

• Joiner Kit
• Joint Pins
• Plastic End Stops

• Studio Rail Clamps (100mm and 40mm)

• Wall Bracket (200mm, 350mm and 500mm)

• Cable Carriage

• Curtain Carriage
• Nylon Twin Hook

• Cupped Curtain Brake

• 4 Wheel Carriage
• 6 Wheel Carriage
• Studio Rail Swivel Arm
• 4 Wheel Double Swivel Car
• Studio Rail Articulated Carriage

• Studio Rail to Tube Bracket

• Studio Rail Drilling Jig
• Operating Poles

Doughty Studio Rail Set Up
