Doughty Swivel Coupler 48mm Low Profile

T58605

Collections: All Products, Doughty Clamp, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

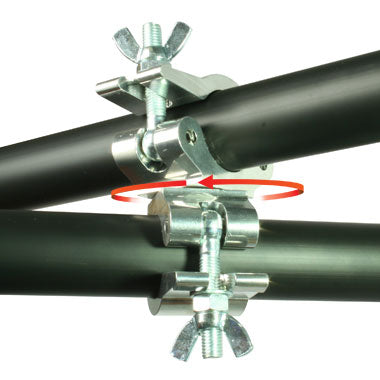

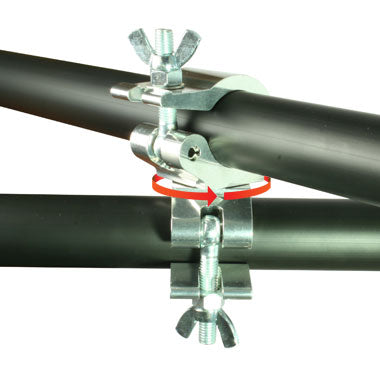

Swivel Coupler - Low Profile

The Low Profile Doughty Clamp combines strength and durability with a high degree of safety. Constructed from high tensile aluminum. This Swivel Coupler provides a secure fixing between adjacent bars whilst allowing 360 degrees of movement. Ideally attach to round tubes or truss chords and suspend equipment and luminaries in the theatre, film, TV and photographic industries. For any inquiries, please contact us via chat.

Spec Sheet - Cert

Specifications:

SWL: 500 Kg
Tube Diameters: 48 to 51mm
Width: 50mm
Tube Centres: 72mm
Weight: 1.06 Kg
Material: Aluminum
Finish: Polished aluminum or black powder coated
