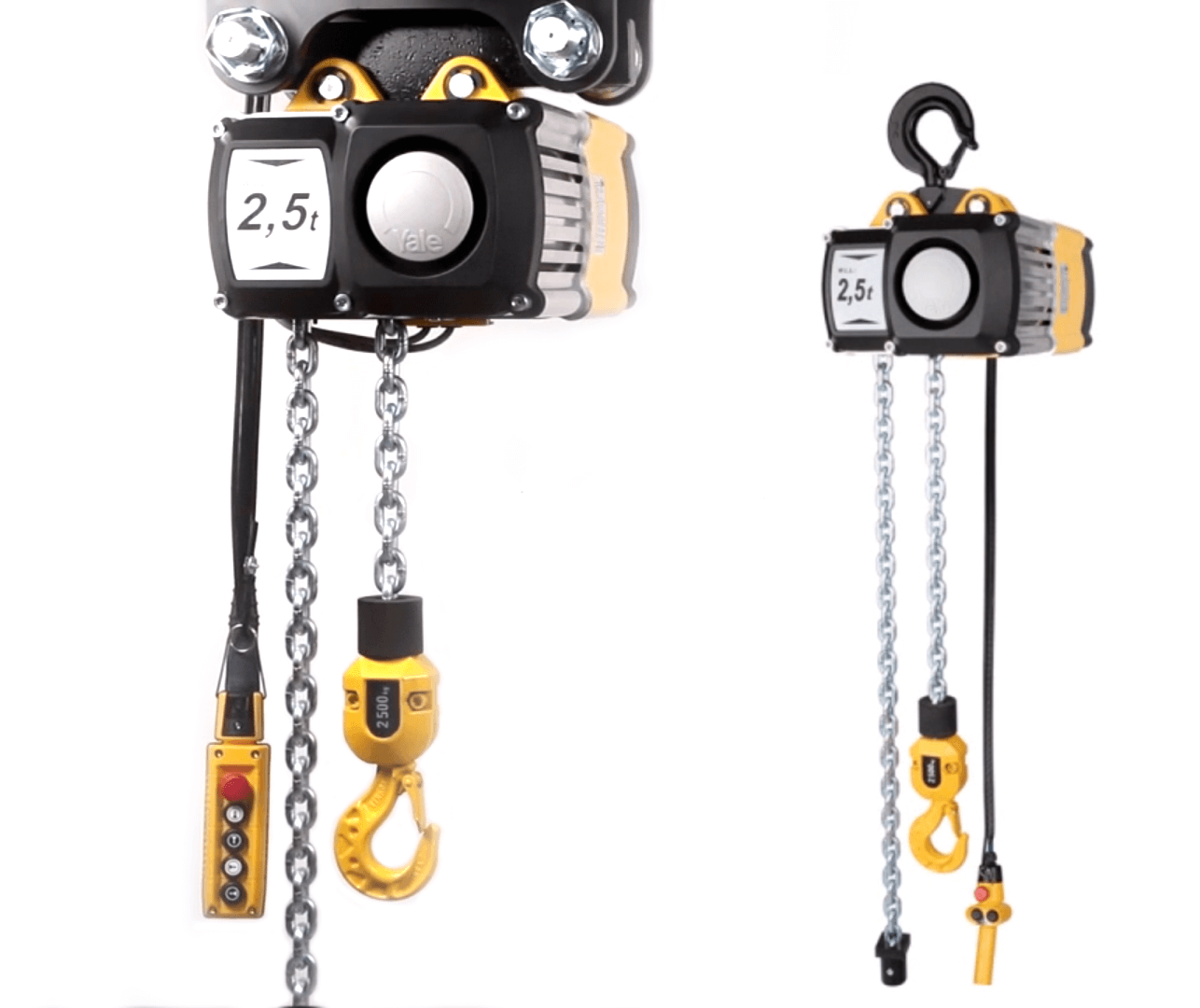

Yale Electric Chain Hoist 2.5 Ton, Dual Speed (CPVF)
Incl. VAT. Shipping calculated at checkout.
- 2500 kg capacity. Single chain fall with 11.3 x 31 mm load chain, available in 6 lifts from 3 m to 18 m.
- Two lifting speeds. 8 m/min main lift and 2 m/min fine lift with a 3.6/0.9 kW motor.
- Lug or trolley. Suspension lug, integrated push trolley or electric trolley for 98-180 mm beam flanges.
- Protected operation. IP 55 motor, 42 V low voltage control and IP 65 push-button pendant.
- 2-year warranty. Excluding wear parts, with a lifetime lubricated helical gearbox.
Accepted payment methods
shipping
Electric Chain Hoist 2.5 Ton (Trolley or Suspension Lug)
Model No.: CPVF 25-8
The electric hoist 2.5 Ton (Model CPVF) combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications.
The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor, and gearbox. Check the video below.
With a single chain fall and two lifting speeds, 8 m/min main lift and 2 m/min fine lift, this electric hoist 2.5 ton is available in 6 lifts from 3 m to 18 m, with suspension lug, push trolley or electric trolley. For any inquiries, please contact us via Chat.
Electric Chain Hoist Specification for CPV/F Model
FEATURES
-
The easily removable housing cover
Gives direct access to all electrical connections -
Electromagnetic spring pressure brake
Holds the load safely even in the event of power failure. -
Motor
Protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets. -

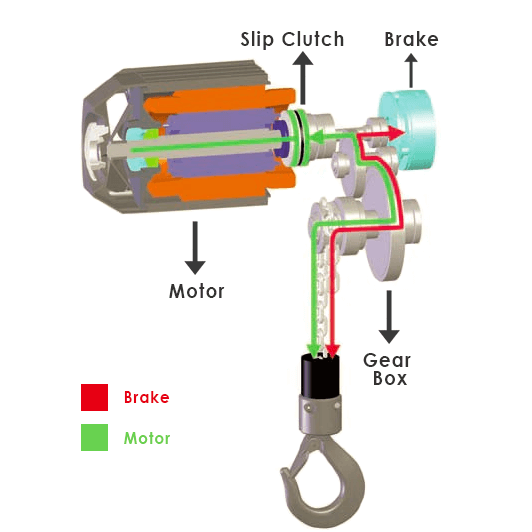

The easily adjustable slip clutch
- Designed to guarantee a permanent connection between the load and the brake.
- Brake holds the load securely without the load dropping, even when the slip clutch is activated. -
The standard, oil bath lubricated and case hardened gearbox
Has a helical gearing for particularly smooth running and enhanced lifetime. -
Suspension lug
- For compact dimensions
- Easy integration in closed-eye constructions. - Steel chain guide
-
The main contactor
As standard, for increased safety. -
Standard Operating Voltage
Euro-voltage 400 V, 3-phase, 50 Hz -
Increased operating safety
Through 42 V control voltage (low voltage control), push-button pendant control, IP 65. - 2-year warranty (excluding wear parts) and a lifetime lubricated gearbox.
SPECIFICATIONS
TECHNICAL DATA (400 V, 3-phase, 50 Hz, manufacturer data)
| Model | CPVF 25-8 |
|---|---|
| Capacity | 2500 kg |
| Chain falls | 1 |
| Load chain (d x p) | 11.3 x 31 mm |
| Classification FEM/ISO | 1 Am/M4 |
| Main lift speed | 8 m/min |
| Fine lift speed | 2 m/min |
| Hoist motor | 3.6/0.9 kW |
| Duty cycle (ED) | 33/17 % |
| Weight, suspension lug* | 85 kg |
| Weight, push trolley* | 147 kg |
| Weight, electric trolley* | 161 kg |
* Weight at standard lift (3 m).
VERSIONS
- CPVF 25-8: with suspension lug
- -VTP-A: with integrated push trolley, size A (beam flange width 98-180 mm)
- -VTE-A: with integrated electric trolley, size A (beam flange width 98-180 mm, travel speed 11 or 11/2.8 m/min)
- Lift: 3, 6, 9, 12, 15 or 18 m (last number of the reference)
OPTIONS
- Stainless steel load chain (no reduction of working load limit)
- Suspension hook
- Flexible chain container
- Other operating voltages
- Counter for operating hours and number of starts
- Radio remote control
- Control for synchronized operation of several hoists
- Manual and electric trolleys
- Festooned cables systems and alternative power supplies
- Suspension for light crane systems
DETAILS
- Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
- Optionally available with an electric trolley.
