Yale Hydraulic Cylinder Hollow YCS
€684.97incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Large centre hole. A threaded rod can pass through the cylinder to achieve extremely high pulling forces.
- Capacity 12-93 t. Single-acting with spring return, max. operating pressure 700 bar.
- Yale ChroMo-Design. Heat-treated chromium-molybdenum steel body and piston, hard-chromium plated piston.
- Protected piston. Stop ring prevents overtravel at full pressure; inner and outer dirt wipers.
- Heavy-duty pulling. For puller sets, prestressing anchor bolts and removing axles, shafts, bushings and tubes.
Cylinder Size (Ton):
12
Stroke:
Regular
Accepted payment methods
Please enter correct zip code
shipping

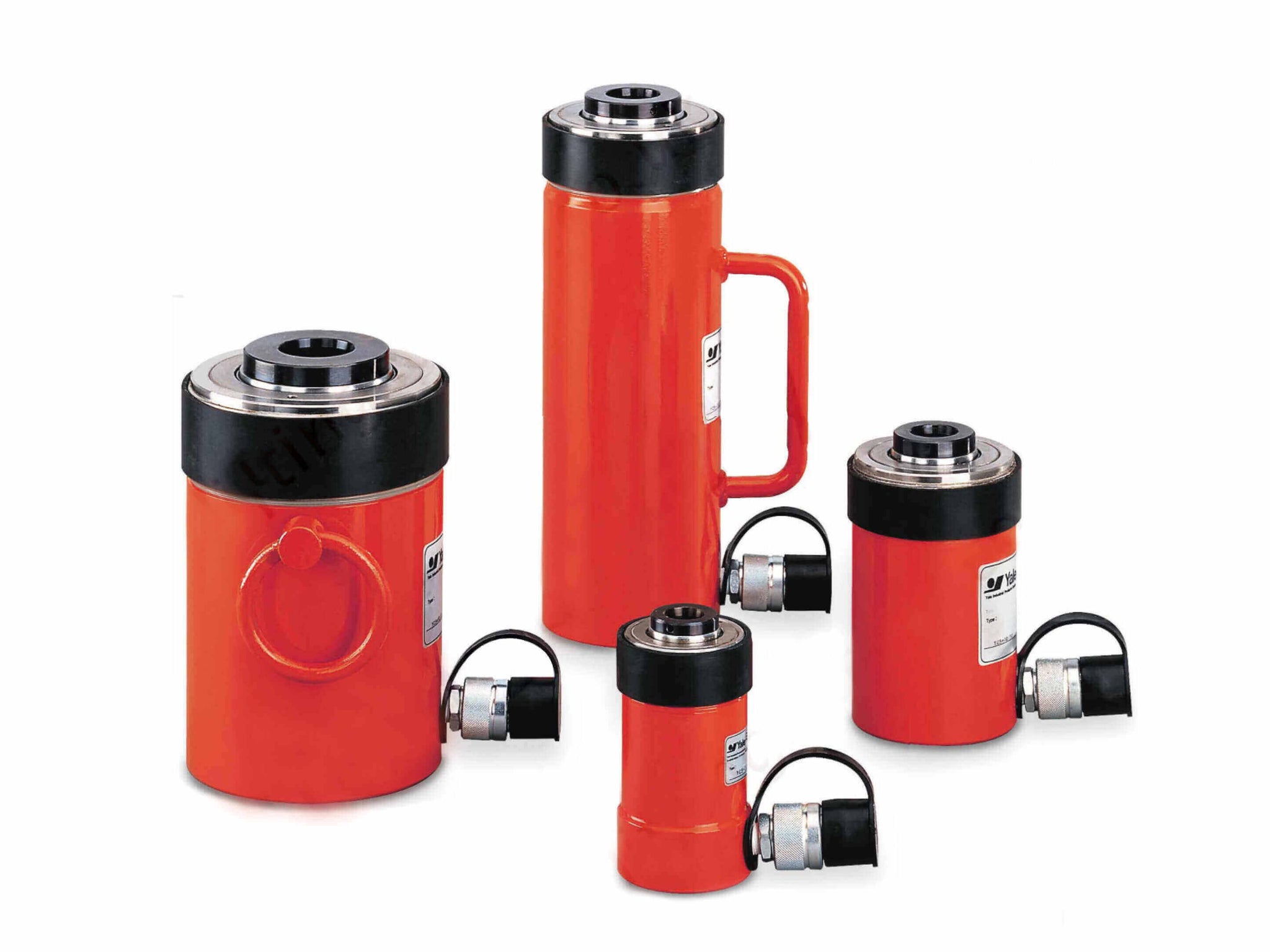

Yale Hollow Hydraulic Cylinder YCS
Single-acting with spring return, capacity 12 – 93 t

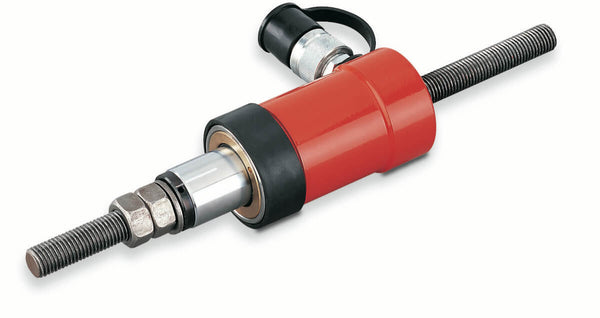

Due to the centre hole design, a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved.
Hollow cylinders are used as the power component within hydraulic puller sets, for prestressing anchor bolts, removing axles, shafts, bushings, extracting tubes, as well as for heavy-duty pulling applications.
FEATURES
- Yale ChroMo-Design.
- Operating pressure max. 700 bar.
- Single-acting with spring return.
- With large centre hole diameter.
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
- Hard-chromium plated piston with a replaceable, heat-treated saddle.
- Metric mounting threads at the cylinder body and inside of the piston.
- The stop ring prevents overtravel of the piston up to full operating pressure.
- Interchangeable hardened saddle.
- With inner and outer dirt wipers.
- Oil port thread 3/8 NPT.
- Incl. female coupler half model CFY-1.
- From model YCS-21/150 with carrying handle.
- From model YCS-57/70 with two lifting rings.
SPECIFICATIONS
| Model | Cylinder Capacity (t) | Pull Capacity (kN) | Stroke (mm) | Centre Hole Diameter (mm) | Closed Height (mm) | Cylinder Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YCS-12/40 | 12 | 120 | 40 | 20 | 142 | 70 | 3.5 |
| YCS-12/75 | 12 | 120 | 75 | 20 | 195 | 70 | 4.5 |
| YCS-21/50 | 21 | 214 | 50 | 27 | 173 | 100 | 8.5 |
| YCS-21/150 | 21 | 214 | 150 | 27 | 335 | 100 | 15 |
| YCS-33/60 | 33 | 335 | 60 | 33 | 193 | 114 | 12 |
| YCS-57/70 | 57 | 567 | 70 | 42 | 242 | 150 | 25 |
| YCS-62/150 | 62 | 618 | 150 | 55 | 335 | 163 | 38 |
| YCS-93/75 | 93 | 930 | 75 | 80 | 280 | 214 | 55 |
