Yale Geared Trolley HTG 500 - 20000kg

Yale Geared Trolley HTG

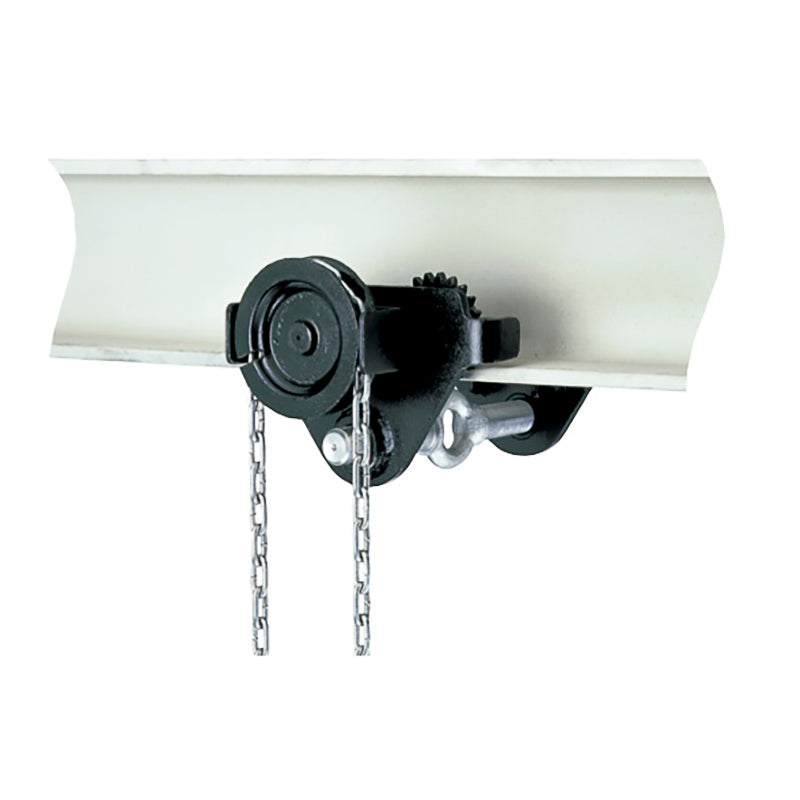

With this option, the chain hoist operator will pull on a chain hanging from the geared trolley, and the trolley will use its gears to roll the trolley wheels along the Beam instead of human push/pull power.

The geared trolley is available with capacities from 500kg to 20000kg in size A (SKUs ending -A) and size B (SKUs ending -B), and enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.

Data Sheet

FEATURES

• It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
• Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
• Adjustments are made by rotating the clevis load bar which also ensures the centered positioning of the hoist in the clevis – no creeping to the left or the right.
• The trolley wheels are designed for a max. beam profile incline of 14% (DIN 1025 - part 1).
• Trolleys are in accordance with the UVV and machinery directives.

OPTIONS

• Rotating hand chain guide.
• Stainless steel hand chains.
• Buffers
• Corrosion resistant version
• Explosion protection
• Locking device to secure the trolley in position on the beam (park position e.g. on ships).

SPECIFICATIONS

• Capacity range: 500 - 20000kg
• Size A (500 - 5000kg): beam flange width 50 - 220mm, max. flange thickness 25mm
• Size B: beam flange width up to 310mm (range depends on capacity)
• Max. beam profile incline: 14% (DIN 1025 - part 1)
