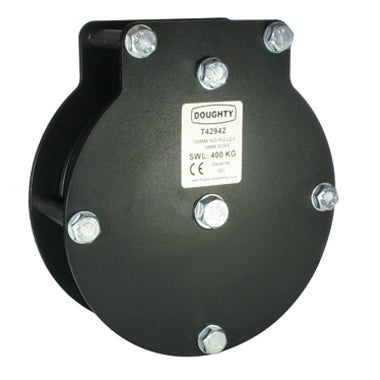

Doughty Heavy Duty Double Sheave Pulley
Incl. VAT. Shipping calculated at checkout.
- Nylon sheaves on ball race bearings. For smooth, friction-free operation.
- 5 mm thick steel side plates. Gives an extremely strong construction.
- Three sheave sizes. 100 mm, 150 mm and 200 mm sheaves with WLLs of 200, 400 and 600 kg respectively.
- For fibre and wire ropes. Available for both, with multibeam brackets, awnings, universal plate assemblies and wall mounting plates to suit.
- Theatre, film and TV. Widely used in the theatre, film and TV industry.
Accepted payment methods
shipping
Heavy-Duty Stage Pulley
The Doughty Heavy-Duty Stage Pulleys are constructed from nylon sheaves together with ball race bearings for smooth friction-free operation. Side plates are constructed from 5mm thick steel giving an extremely strong construction.
The heavy-duty double sheave pulleys are available with 100mm, 150mm and 200mm sheaves with WLLs of 200, 400 and 600kgs respectively. They are available for both fibre and wire ropes together with a range of bracketry to suit. Widely used in the theatre, film and TV Industry.
Like the basic single sheave pulley, it is ready to accept any of our range of fixings. Heavy-Duty Triple/Quad/Quin Sheave Pulleys are also available.
To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required
ie. T42931 + T42984 = 100mm Single Pulley (for Rope) fitted with Awning Brackets. For any inquiries, please contact us via chat.

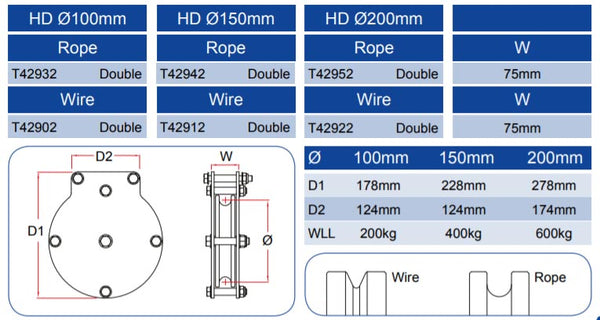

Part Numbers (Double Sheave):
- 100mm sheave, WLL 200kg: T42902 (wire rope), T42932 (fibre rope)
- 150mm sheave, WLL 400kg: T42912 (wire rope), T42942 (fibre rope)
- 200mm sheave, WLL 600kg: T42922 (wire rope), T42952 (fibre rope)
Pulleys are supplied without brackets; brackets are ordered separately and must be factory fitted.
Specifications:
- WLL: 200kg (100mm sheave), 400kg (150mm sheave), 600kg (200mm sheave)
- Width: 75mm
- The recommended sizes for Hand Ropes & Wires are:
100mm Diameter Sheave - 12mm Rope – 4mm Wire
150mm Diameter Sheave - 18mm Rope – 6mm Wire
200mm Diameter Sheave - 18mm Rope – 6mm Wire
Brackets for Heavy Duty Double Sheave Pulleys:
- Multibeam Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Universal Plate Assembly: To be mounted to tubes
- Wall Mounting Plates: Convert an existing pulley into a wall-mounted pulley
