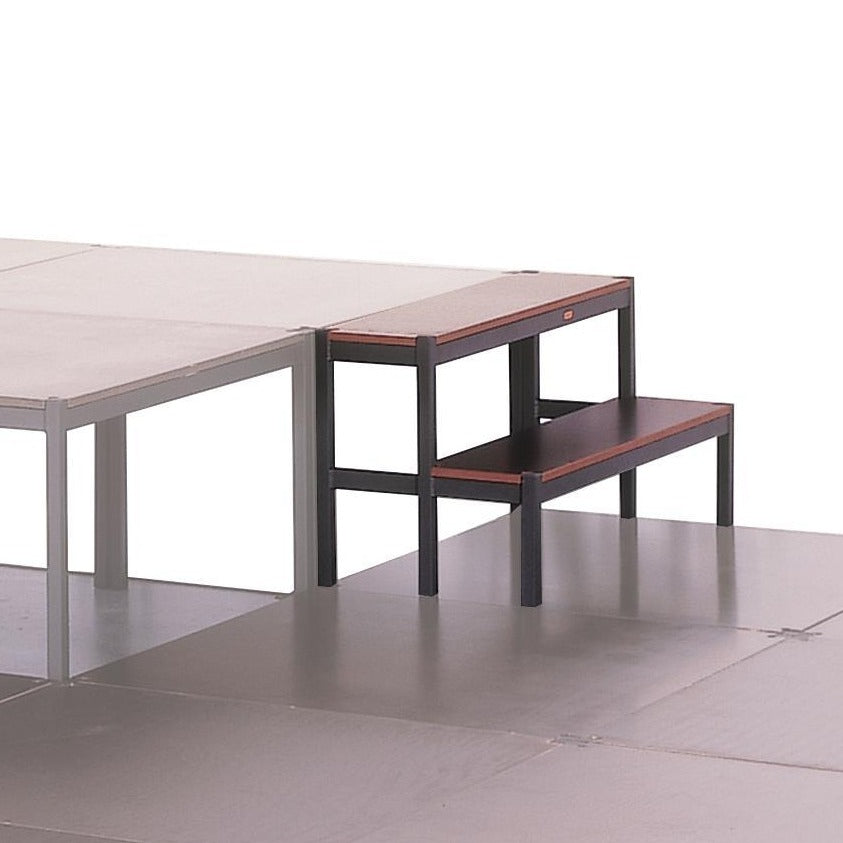

Easydeck Modular Staging - Step Unit

Easydeck modular system offers a portable staging for schools or other smaller venues. This staging system was designed after extensive consultation with drama teachers, amateur groups and rental companies.

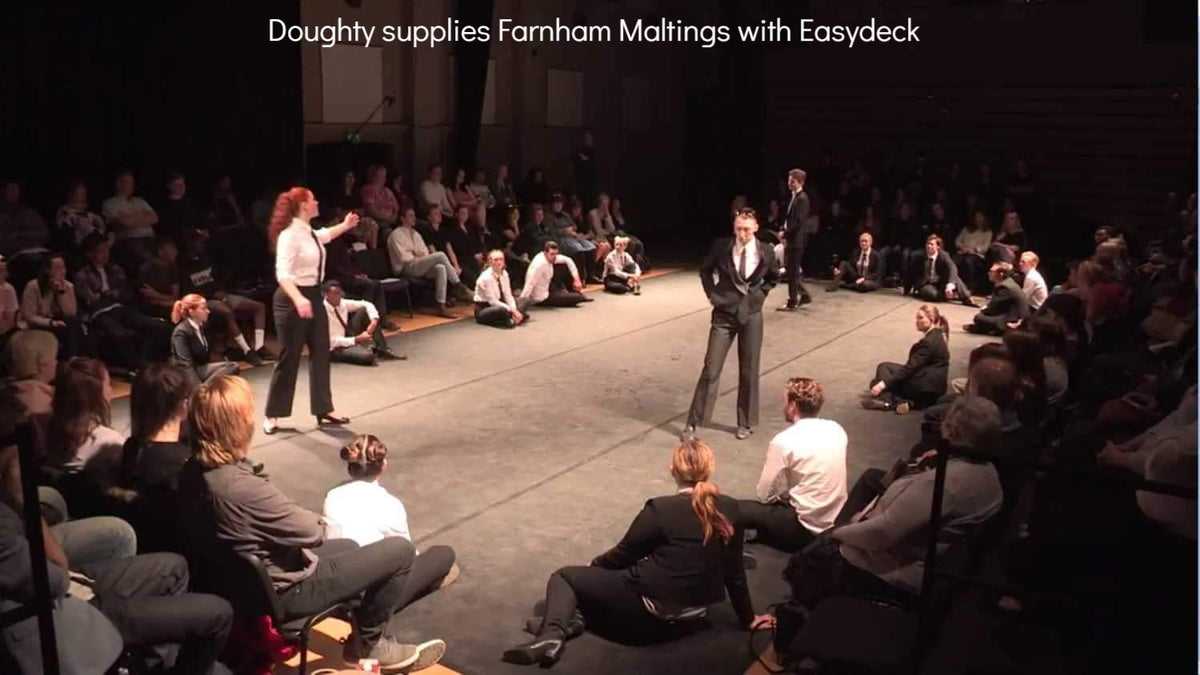

Because of its modular nature, Easydeck is an extremely flexible system. It also provides an efficient, safe & cost-effective solution to portable staging. It is a ‘no fuss’ system which is simplicity itself to install and requires no special tools to assemble. For more details of its flexibility, please read the case study of Farnham Maltings and Easydeck blog on MTN Shop.

Three types of Easydeck Step Units are available - Single, Double and Triple. The units are secured in position with two ‘Joint Clips’. Besides, Easydeck Triangular Units and Square Units are in-stock. For any inquiries, please contact us via chat.

User Manual & Certificate of Easydeck Staging System

Specifications:

Easydeck Step Units - 1000mm Series
Size & Weight:

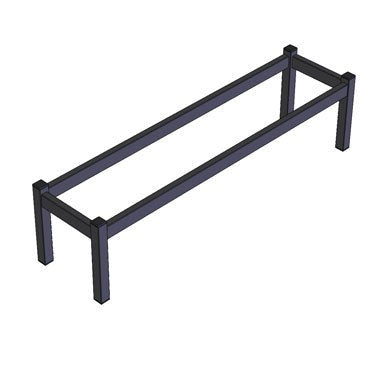

Single step units: 1000mmL x 250mmW x 250mmH & 4.28 Kg

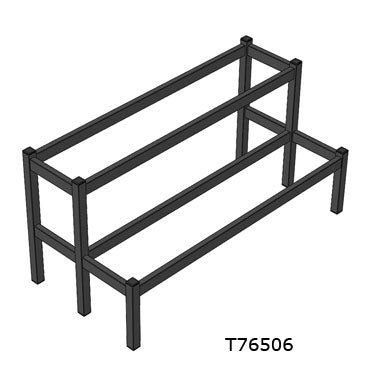

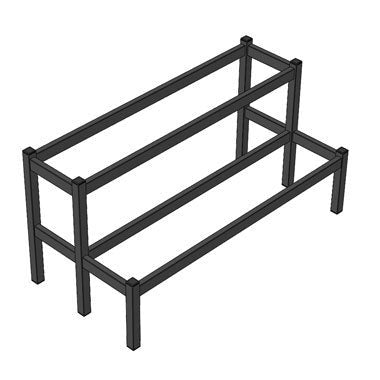

Double step units: 1000mmL x 470mmW x 500mmH & 8.70 Kg

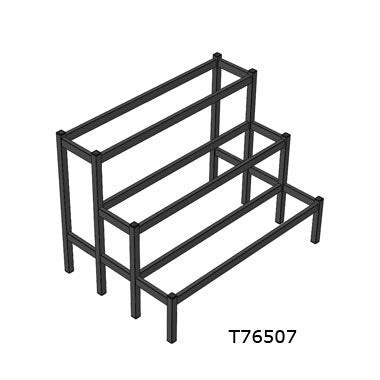

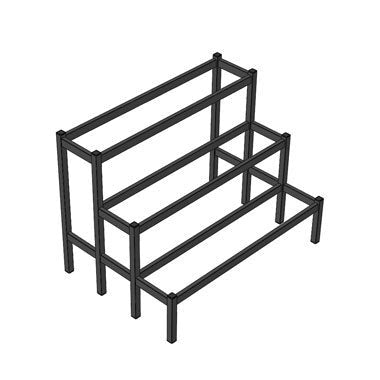

Triple step units: 1000mmL x 690mmW x 750mmH & 11.0 Kg
SWL: 500Kg per square metre
Finish: Black Powder Paint
Standards: Easydeck conforms to DIN 53799, BS6566:1 1985
PLEASE NOTE: BOARDS MUST BE ORDERED SEPARATELY

Accessories for Easydeck Units:

Module Joint Clip: Used to secure runways and step units
Module Joint Channel: Used to create a secure joint between two adjacent frames
Support Channel: Ensure a level platform for deck panels is achieved
Module Riser Brackets: Used when two units are tiered on top of each other

doughty-easydeck-brackets-portable-staging-for-small-venues

Reversible Deck Panel: Rectangular panel with both non-slip and smooth surfaces
Ramp System: Provides easy access to tiered seating
Handrail: Provide an excellent safety barrier
Chair Stop: Create a raised edge to eliminate the chances of chair leg slippage

doughty-easydeck-brackets-portable-staging-for-small-venues-

"Bolton Twill" Valence: Give your stage that "finished look"
Storage Dolly: Stores up to 25 frames and deck panels
