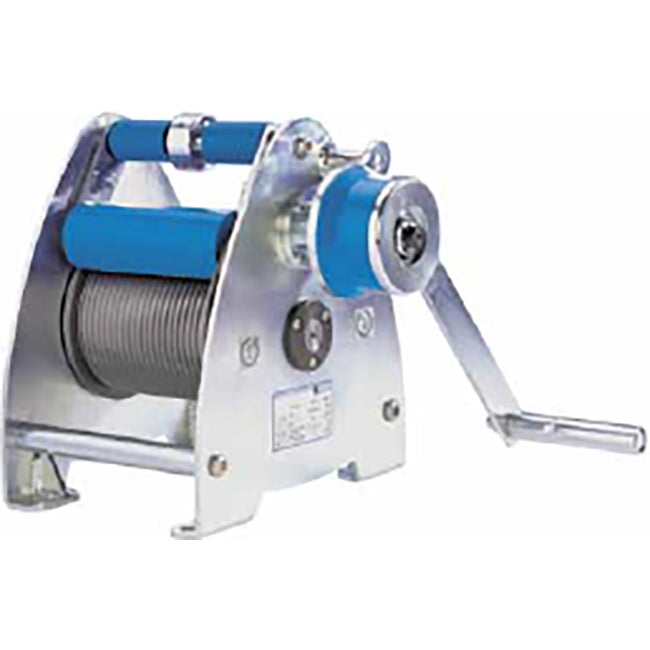

Pfaff SW-K LAMBDA Console-Mounted Rope Winch
€2,414.19incl. VAT
Incl. VAT. Shipping calculated at checkout.
- 300 kg for stages, studios and theatres. Compact rope winch with galvanized side sections.
- Grooved drum with 18:1 ratio. Single-layer winding and a drum to rope diameter ratio that increases rope service life.
- Dual spring brakes. Safety crank with two independent spring brakes holds the load in any position.
- Gear rated for twice the nominal load. Spur gear drive for efficiency and comfortable handling.
- DGUV V17 (BGV C1) and DIN 56925-1. Also GS-tested by the German committee for lifting equipment.
Capacity:
300 kg (Wire Rope Capacity 10 m)
Accepted payment methods
Please enter correct zip code
shipping
The compact console-mounted rope winch SW-K LAMBDA with a capacity of 300 kg, developed for shopping galleries, churches, sports facilities and performing areas such as stages, studios and theatres.
FEATURES
- State-of-the-art design with galvanized side sections for easy handling.
- Grooved drum for single-layer winding of the steel rope. An 18:1 ratio between drum and rope diameter increases the service life of the rope substantially.
- With spring-loaded rope pressure roller to prevent the unloaded rope from jumping off the drum.
- Gear rated for twice the nominal load.
- Spur gear drive for optimal efficiency and comfortable handling.
- The fitted safety crank with two spring brakes acting independently of each other for safe holding of the load in any position.
- Complies with the accident prevention regulations DGUV Vorschrift 17 (BGV C1) and DIN 56925-1 as well as the prototype and safety test (GS-test – tested safety) of the German committee for lifting equipment.
OPTIONS
- Drum extension for a larger rope capacity.
- Special grooves (several ropes)
SPECIFICATIONS
- Capacity: 300 kg
- Rope diameter: 6 mm (recommended rope: 6 DIN 3069 SE-znk 1960 sZ-spa)
- Usable rope length max.: 10 m (30272015) / 15 m (30272017)
- Lift per crank rotation: 50 mm
- Crank effort: 18 daN
- Ratio: 8.83:1
- Weight without rope: 30 kg (30272015) / 36 kg (30272017)
