Yale Trolley Clamp CTP 1000 - 3000kg
€192.81incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Five models from 1000 to 3000 kg. Trolley clamp for attaching and transporting loads on overhead beams.
- Quick beam adjustment. Central threaded spindle adjusts to beam flange widths from 60 mm to 320 mm.
- Corrosion protection. Threaded spindle and clevis are zinc-plated.
- Curve capable. Minimum curve radius from 0.6 m to 1.15 m depending on the model.
- Not for people. Not designed for passenger elevation applications.
Capacity/Beam Flange Width:
1000KG/60-150mm
Accepted payment methods
Please enter correct zip code
shipping

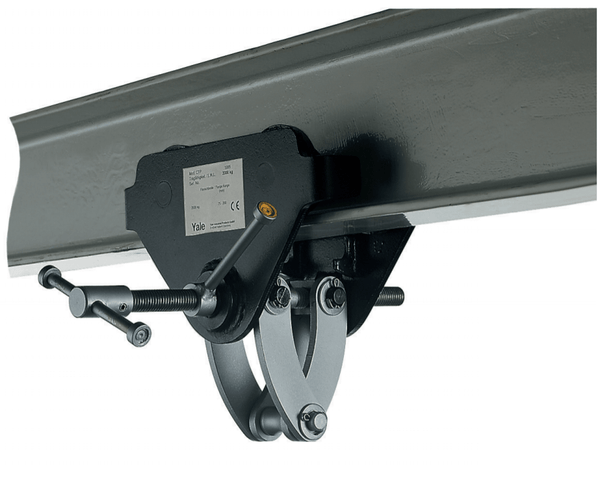

Yale Trolley Clamp CTP
Easy fitting to overhead beams for the attachment and transport of loads.
FEATURES
- Central threaded spindle provides quick adjustment to the required beam width.
- Threaded spindle and clevis are zinc-plated for added corrosion protection.
SPECIFICATIONS
- Capacity: 1000 - 3000kg
- Beam Flange Width: 60mm - 320mm
- Min. Curve Radius: 0.6 - 1.15m
- Weight: 2.5 - 19.5kg

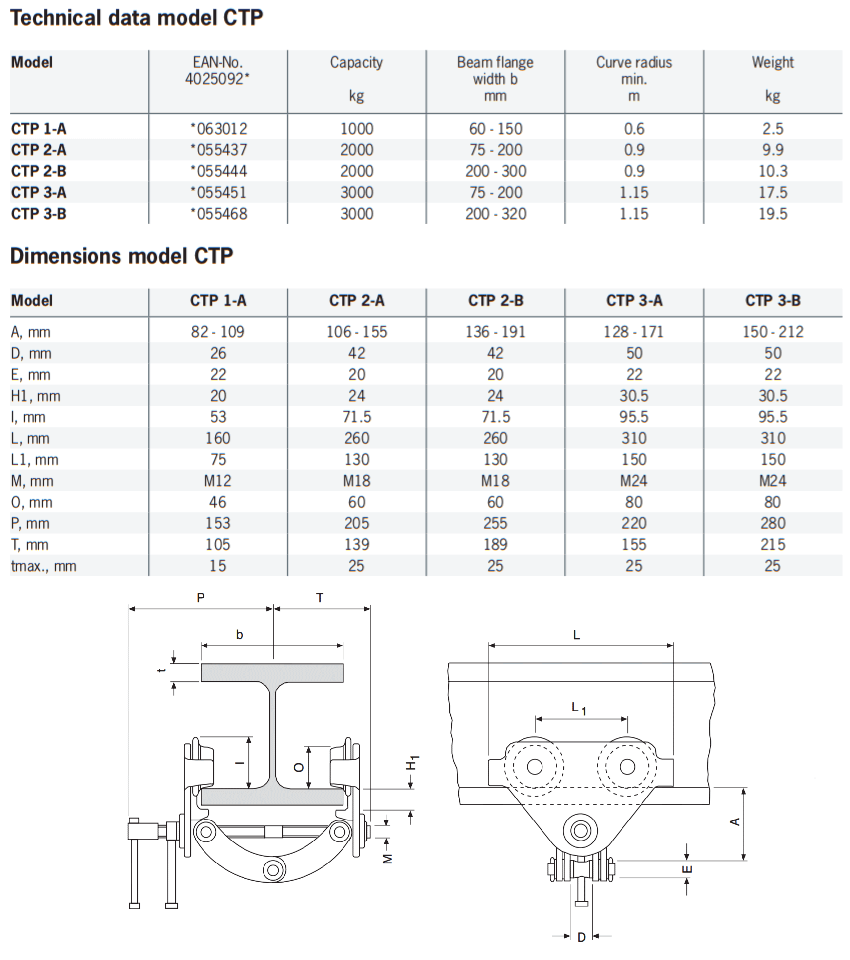

MODELS
| Reference | Model | Capacity | Beam Flange Width | Min. Curve Radius | Weight |
|---|---|---|---|---|---|
| N05500024 | CTP 1-A | 1000 kg | 60 - 150 mm | 0.6 m | 2.5 kg |
| N05500025 | CTP 2-A | 2000 kg | 75 - 200 mm | 0.9 m | 9.9 kg |
| N05500026 | CTP 2-B | 2000 kg | 200 - 300 mm | 0.9 m | 10.3 kg |
| N05500027 | CTP 3-A | 3000 kg | 75 - 200 mm | 1.15 m | 17.5 kg |
| N05500028 | CTP 3-B | 3000 kg | 200 - 320 mm | 1.15 m | 19.5 kg |
DETAILS
- Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
