VMB Tower Lift-TE086

TE-086



VMB Tower Lift-TE086

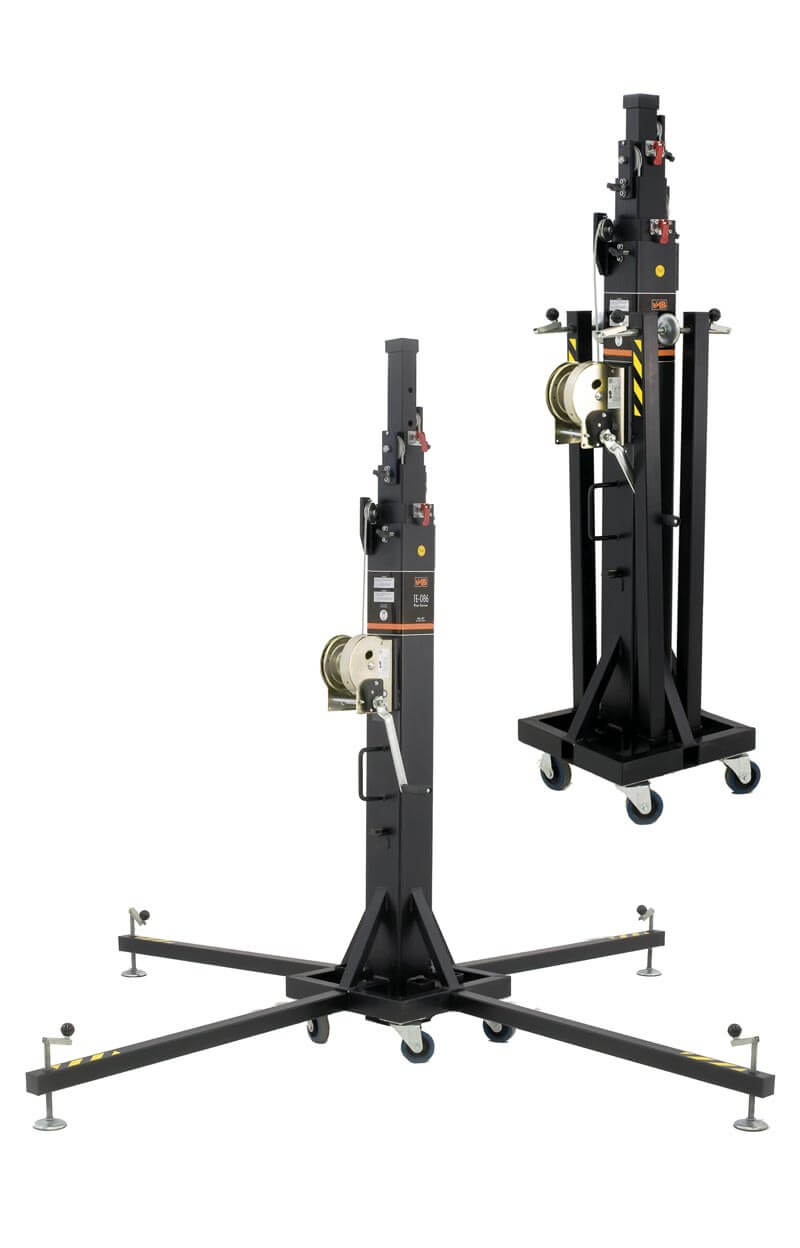

The TE-086 lifting tower is the most powerful of the telescopic series, able to lift 300kg to 6.5m in height for your live events. It undergoes very rigorous testing, under strict conditions and they are monitored continuously during the manufacturing process.

The VMB lift has five large profiles which give an incomparable resistance and stability to any other tower of its class. It has a larger winch with a high resistant, anti-torsion steel cable and is guided through reinforced pulleys. The TE-086 truss tower lift is very easy to move with its 4 rotating wheels, and the possibility of installing the RH-1 transport kit that can be ordered separately, to lay it horizontally and make the transport in vans, trucks, etc. easier.

It also has 4 powerful stabilizers in the legs, to level the tower in terrain with a certain slope. The TE-086 features automatic ALS (Automatic Lock Security) locks, patented by VMB, that guarantee safety in the lifter. A wide range of accessories is also available (See at the bottom).

Data Sheet - User Manual & Cert

Features:

  • The 5-telescopic-profile system operated by the steel cable and guided by channeled steel pulleys with ball bearings.
  • 4 powerful stabilizers in the legs
  • 4 rotating wheels for easy transport
  • A large certified winch with an automatic brake
  • The Patented Security System ALS can automatically block the tower in the position it is left in. Each section of lift has an ALS that blocks itself in the unlikely event of the cable breaking.
  • Made in Spain

Specifications

  • Maximum Height: 6.5m (21.3′)
  • Maximum Load: 300Kg (661 lb)
  • Work Surface: 2.3 x 2.3m (7.5 x 7.5′)
  • Folded Height: 1.87m (6.1′)
  • Winch: 900Kg
  • Adaptor: 50mm (PSU-086)
  • Weight: 129Kg (284lb)

Accessories for VMB lift TE086:
