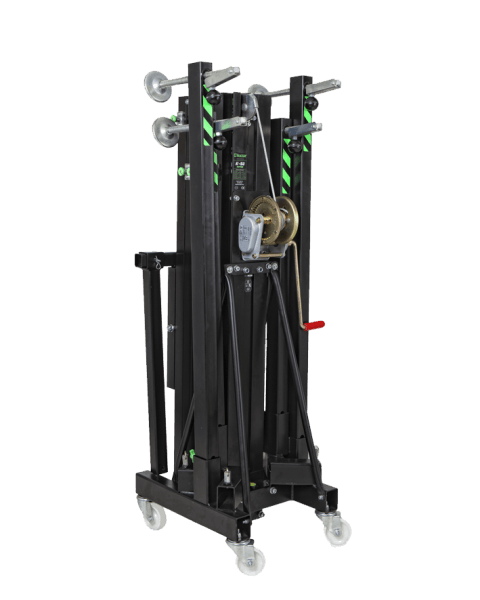

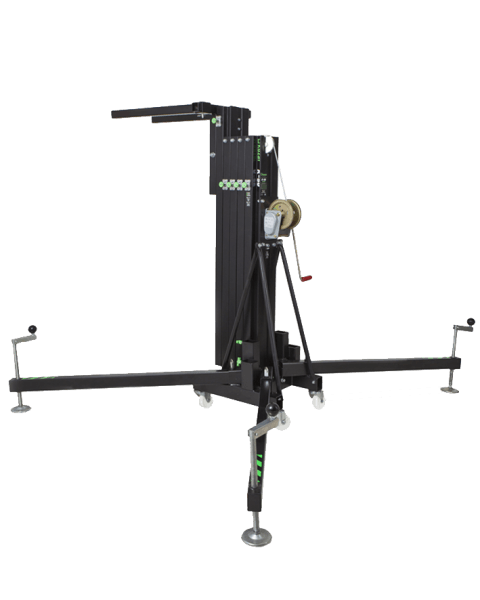

Kuzar Tower Lift (Model K-50)
Incl. VAT. Shipping calculated at checkout.
- Lifts 300 kg to 5.95 m. Multipurpose front-load tower for PA and line array systems, lighting and trussing.
- KAT locks with Block and Lift positions. Sections lock automatically while raising and the load is protected if the cable breaks.
- 6 mm steel cable to DIN 3060. Driven by a 900 kg certified winch with automatic brake.
- 6082 T6 aluminium profiles. With wheels and adjustable stabilizer plates with nonslip rubber base.
- 2-year warranty. Made in Spain, CE and BGV C1 certified.
Accepted payment methods
shipping
K50 Tower Lift
The lifting tower undergoes a very strict quality control process during the manufacture.
Successor to Kuzar's classic 'COMPACT' tower, the K-50 surpasses it with a greater height of 5.95 m and also incorporates new features such as the 'Block' & 'Lift' positions of the 'KAT' locks (See the User Manual) that can block the sections automatically while raising the tower. It also protects your cargo in the unlikely event that the 6mm diameter cable breaks.
The K-50 belongs to Kuzar's range of multipurpose (polyvalent) aluminium towers, able to raise structures and PA and line array audio systems. Kuzar lifter, model K-50 has been designed for vertically lifting lighting, trussing etc in the professional sound and light sector.
Data Sheet & User Manual & Cert
Features:
- Cable: Anti-torsion & Anti-corrosion. 6mm diameter. Steel DIN 3060. Tensile strength 180 kg/mm2.
- Winch: 900 kg certified, with an automatic brake and a long handle
- Wheels: Make transportation easier
- Steel parts with anti-rust protection: black priming paint covered with cured polyester powder coating
- Kuzar Automatic Trigger (KAT) on each section which automatically slots into the sections during elevation, locking them in place. 'Block' position and 'Lift' position are featured.
- Adjustable stabilizer plates in the legs with nonslip rubber base support
- Made in Spain
Specifications:
- Folded Height: 1.57m (5.15')
- Maximum Height: 5.95 m (19.52’)
- Maximum Load: 300kg (661.4 lb)
- Minimum Load: 25kg (55 lb), required for safe brake operation
- Weight: 164kg (361.56lb)
- Work Surface: 1.91m x 2.15m (6.26’ x 7.05’)
- Folded Base Area: 60 cm x 45 cm (1.97’ x 1.48’)
- Construction Material: Aluminium profiles 6082 T6
- Finish: Black
- Conformity: CE (Machinery Directive 2006/42/EC), BGV C1 (GUV-VC1)
Tower Lift Accessories for K-50:
-
Line Array System Support: Lift anchor to mount in a central flight point when you hang your line-array system on your tower lift.
- Kuzar Shackle: This is the screw-pin shackle used to connect Kuzar Line Array System Support for lifting line array system.
-
Quick Trigger Clamps: Quickly mount and remove lights, speakers or other equipment to the truss.
- Others you may be interested in Prolyte Truss, VMB Tower Lift
Important Warranty Information
WARRANTY. All Kuzar lifts come with 2 years warranty. This warranty period is from the date of purchase. Kuzar will repair any defect product caused by either faulty materials or poor workmanship free of charge within this period as long as the parts are fitted by an authorized Kuzar dealer. Should the product have been manipulated in any way or a repair attempted by an unauthorized dealer the warranty will be invalid. This warranty does not cover damage occurred by improper use.
