Modular Drop Arm - Small Tee

Award-winning Stage Lighting System

These Modular Drop Arms are parts of the Doughty award-winning Modular Rigging System, offering a safe and flexible rigging method for suspension.

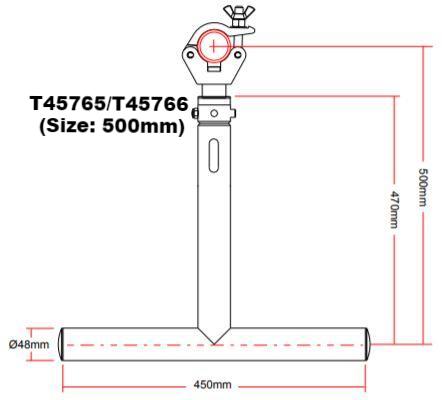

The Modular drop arm tees have been designed in two sizes, 250mm and 500mm. They can be used at the lower end of a drop arm assembly to attach the luminaire. Also, they can be used at the top of a drop arm assembly enabling two pipe-to-pipe couplers for a suspension to create a much more rigid connection between drop arm and truss/barrel.

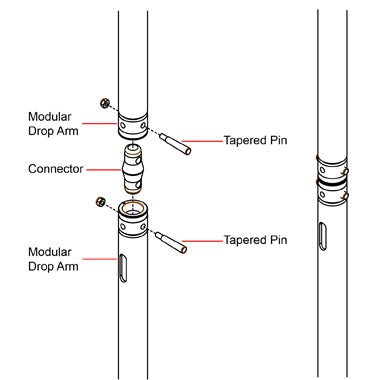

Modular tees are manufactured from aluminium with a female tapered connector. A Slot is provided for a safety bond. Connections are made with Doughty T45755 connector. These Tees are 450mm wide to suit most major brand moving lights. Widely used in the TV, film, photographic and other industries. For any inquiries, please contact us via chat.

Spec Sheet - User Manual

Specifications:

• Size: 250mm and 500mm
• SWL: 100kg
• Diameter: 48mm
• Width: 450mm
• Material: Aluminum
• Finish: Powder-painted in silver or satin black

Products you need to create lighting trees/ladders:

• Coupler with Half Connector(48mm): To connect drop arms to a piece of truss with a diameter of 48mm
• Drop Arm Tee with Through Connector: To allow lanterns to be mounted on and connect drop arms to form a large frame
• Connector
• Drop Arm Extension (Adjustable or Standard): To link one tee with through connector to another one to form a large lighting tree
• Safety Bond (Secondary suspension device)
• Drop Arm Tee Extension: To allow lanterns to be mounted on
