Doughty Modular Drop Arm Adj. Extension for Stage Lighting Rigging

Modular Drop Arm Adjustable Extensions

Award-winning Stage Lighting System

These Modular Drop Arms are parts of the Doughty award-winning Modular Rigging System, offering a faster, safer stage lighting rigging solution.

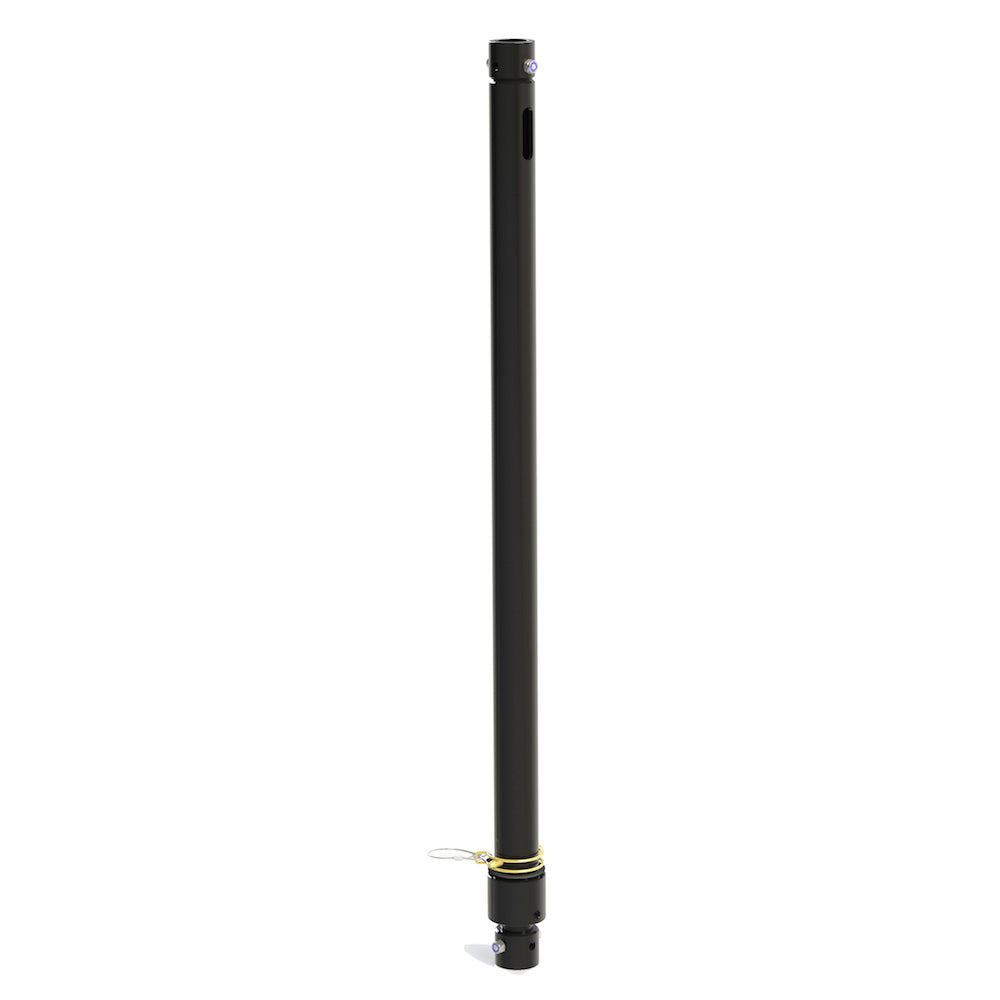

Modular drop arm adjustable extensions are manufactured from aluminum with a female tapered connector each end. These extensions can be connected together to create a variety of different length drop arms.

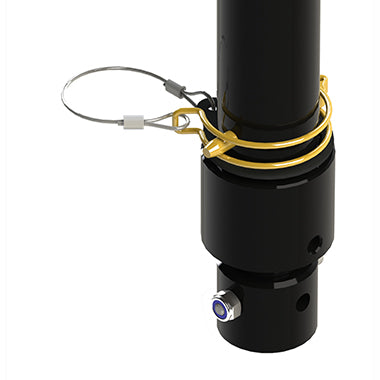

A slot is provided for a safety bond. Connections are made with Doughty T45755 connector. Powder painted in silver or satin black modular extensions are available in two ranges, 1 to 1.7m and 2 to 3.7m. For any inquiries, please contact us via chat.

Specifications:

• Length: 1m-1.7m and 2m-3.7m
• SWL: 100kg
• Material: Aluminum
• Finish: Powder-painted in silver or satin black

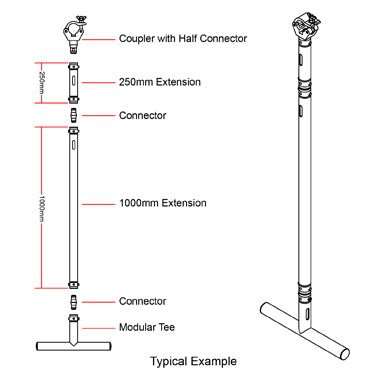

Products you need to create lighting trees/ladders:

• Coupler with Half Connector(48mm): To connect drop arms to a piece of truss with a diameter of 48mm
• Drop Arm Tee with Through Connector: To allow lanterns to be mounted on and connect drop arms to form a large frame
• Connector
• Drop Arm Extension (Adjustable or Standard): To link one tee with through connector to another one to form a large lighting tree
• Safety Bond (Secondary suspension device)
• Drop Arm Tee Extension: To allow lanterns to be mounted on
