Doughty Modular Rigging System - Small & Large H Frames for Stage Lighting Rigging
Incl. VAT. Shipping calculated at checkout.
- Part of the Doughty Modular Rigging System. Safe, quick and flexible solution for suspending luminaires.
- Two sizes. Small H Frame 415 mm wide and Large H Frame 1000 mm wide, both 750 mm high.
- Build lighting ladders. Frames connect together with T45755 connectors; four tapered pins supplied.
- WLL 200 kg. AW6082 aluminium, 48 mm tube, 5:1 factor of safety.
- Suspended or floor-mounted. Hang from truss or tube, or connect to tank traps via adaptors.
Accepted payment methods
shipping
H Frames for Stage Lighting Rigging
Award-winning Stage Lighting System

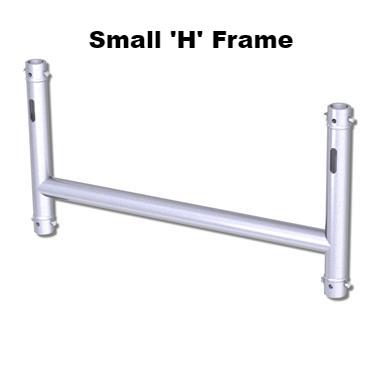

The H Frames are part of the Doughty award-winning Modular Rigging System, designed to provide a safe, quick and flexible stage lighting rigging solution for suspending luminaires. They are often used to create a ladder frame for lanterns. Two sizes are available: the Small H Frame (T45900 silver / T45901 black) and the Large H Frame (T45910 silver / T45911 black). The H Frames can be suspended from truss/fixed tubes or floor-mounted.

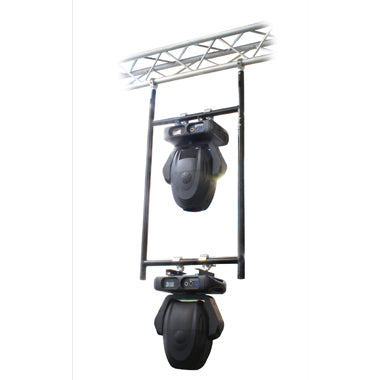

1. Suspended from Truss

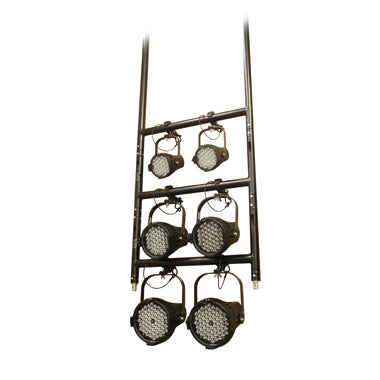

Each aluminium H Frame is supplied with four tapered pins (connectors not included). H Frames can be connected together, or small frames connected to large frames, creating a lighting ladder to carry stage fixtures. Connections are made with our T45755 connector; slots are provided for safety bonds.
A range of 48-51mm diameter clamps/couplers such as T45800 and T45825 is available fitted with a conical connector for truss suspension.
2. Floor-mounted
Tank trap adaptors are also available, enabling the H Frames to connect to tank traps to create a secure floor-standing assembly.
For any inquiries about stage lighting rigging, please contact us via chat.
Spec Sheet - Small H frame - User Manual
Specifications:
- WLL: 200kg, for both sizes
- Factor of Safety: 5:1
- Height: 750mm, for both sizes

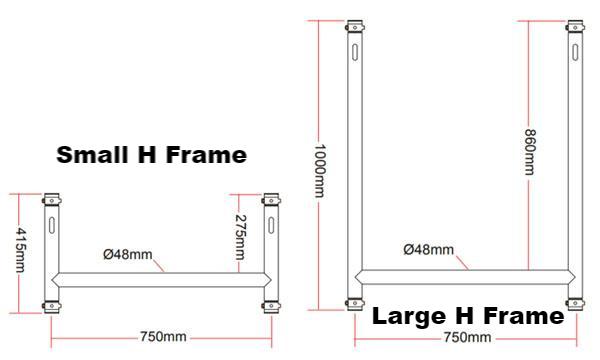

- Width: 415mm (Small H Frame), 1000mm (Large H Frame)
- Tube Diameter: 48mm (48.3mm), for both sizes
- Material: AW6082 aluminium
- Finish: Powder painted in silver or black
- Supplied with: Four tapered pins (connectors not included)
Items Required for Stage Lighting Rigging:
- Coupler Fitted with a Half Connector
- Full Connector
- Tapered Pin & Nyloc Nut
- Safety Bond
- Doughty Tank Trap
- Doughty Tank Trap Adapter
Please read the Spec Sheet and user manual carefully.
