• Angle Iron Bracket (Heavy Duty)- Doughty Engineering

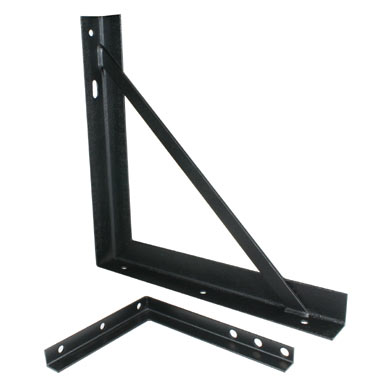

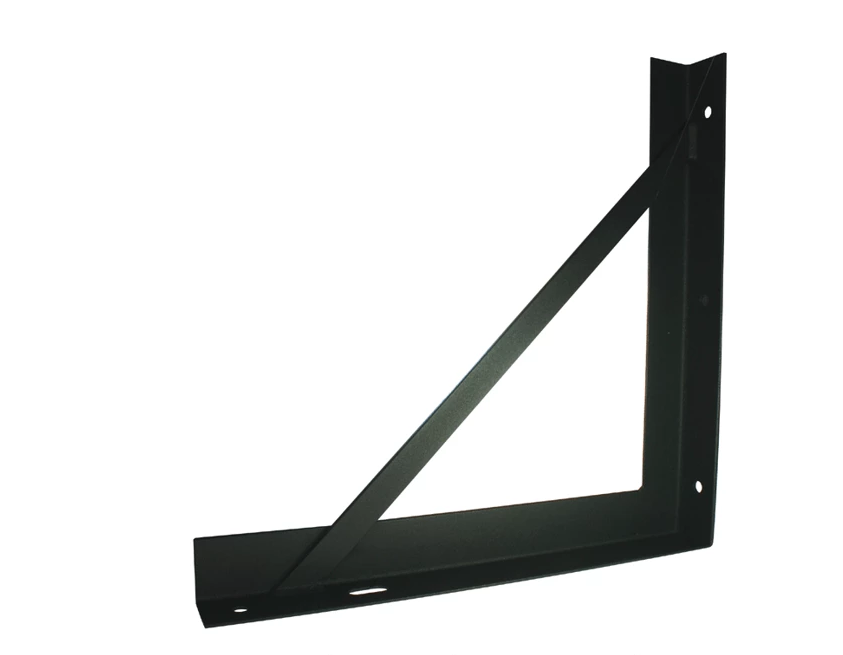

  • Doughty Angle Iron Bracket

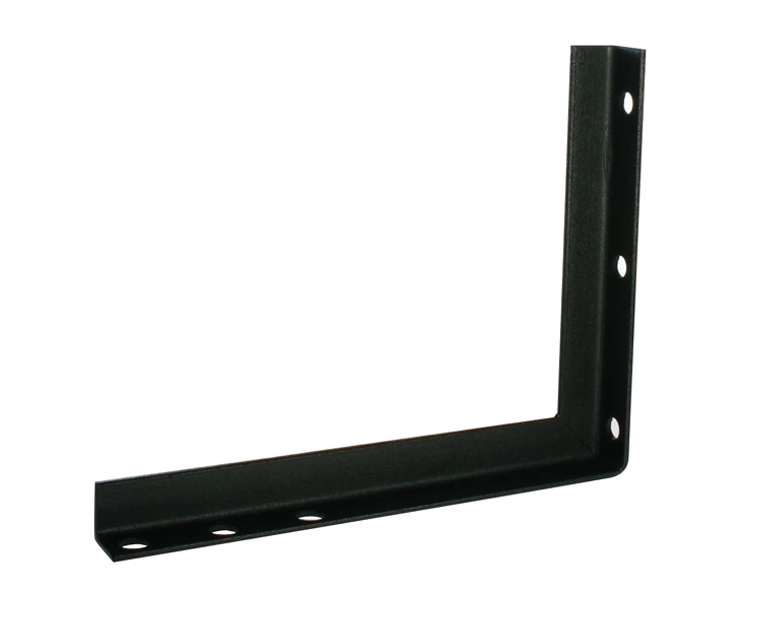

  • Doughty Face Fixing Bracket

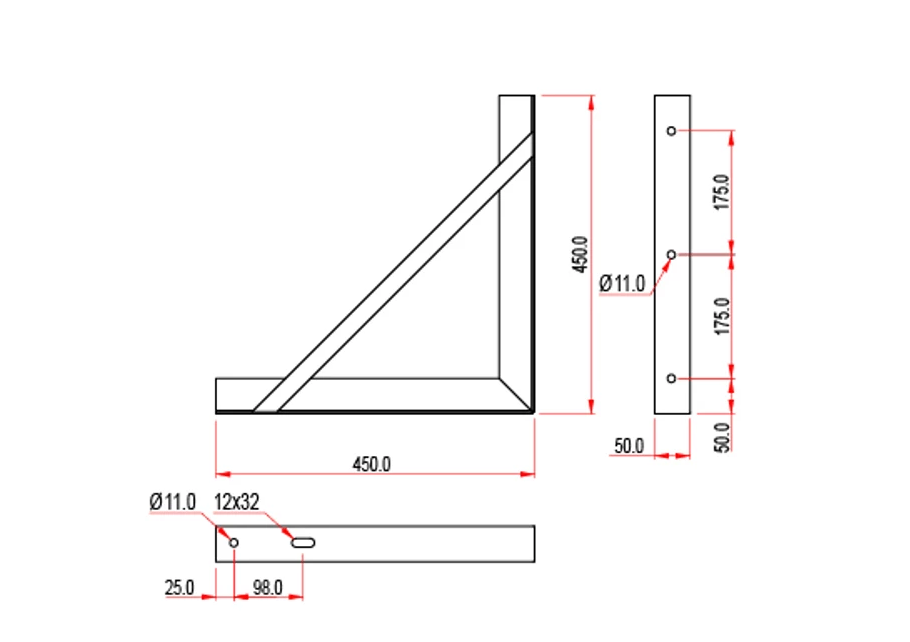

  • Doughty Angle Iron Bracket Dimension

Doughty Angle Iron Bracket (2 pieces)

Product No. T34000

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price €37.28 excl. €8.57 VAT €45.85 incl. €8.57 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
Product details

Angle Iron Bracket

With diagonal support strut, the angle iron bracket is used for heavy-duty wall mounting applications in various venues.

It is slotted to accept a saddle clamp (T30800) that is designed primarily to be wall mounted, allowing fixtures and tubes to be suspended from a vertical surface.

Face fixing bracket without diagonal support is also available. More product specifications can be found below. For any inquiries, please contact us via chat.

Spec Sheet


  • SWL:
    T34000: 30kg
    T34100: 15kg
  • Weight:
    T34000: 2.72kg
    T34100: 0.43kg
  • Dimensions:
    T34000: 450mm x 450mm
    T34100: 195mm x 242mm
