• Theatre Winch 300 kg

Gebuwin Theatre Winch 300 kg

Product No. 77281340

Regular price $1,553.00 excl. $357.19 VAT $1,910.19 incl. $357.19 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

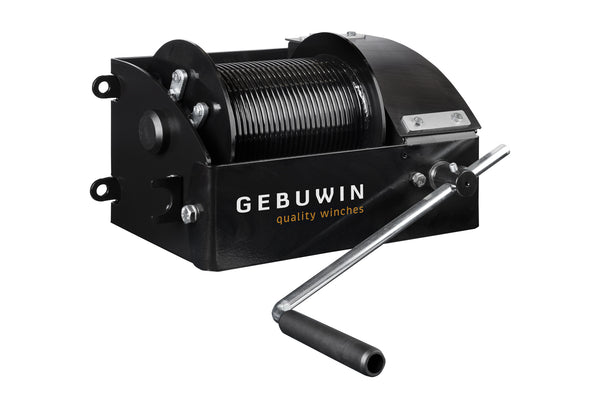

Theatre Winch 300 kg



Product information

Gebuwin’s theatre winch is a high-quality but also safe winch that has been specially developed for the theatre and entertainment industry. This winch complies with the newly set standards for this sector, namely EN17206, and is therefore new in our range. This winch is equipped with two load pressure brakes and complies with the safety factor of eight. In order to give the winch even more finesse and ease of use, it is equipped with a grooved drum with a pressure roller. As the name suggests, the winch is ideally suited for the theatre world, but it can also be used in interior building or the lighting sector. In short, it’s a great addition for Gebuwin, which can literally and figuratively be seen “In The Picture”.

Specifications

  • compliant to the EN17206 norm for stage and entertainment industry
  • static safety factor 8
  • the worm gear transmission has a natural braking effect
  • closed gearbox to prevent accidents

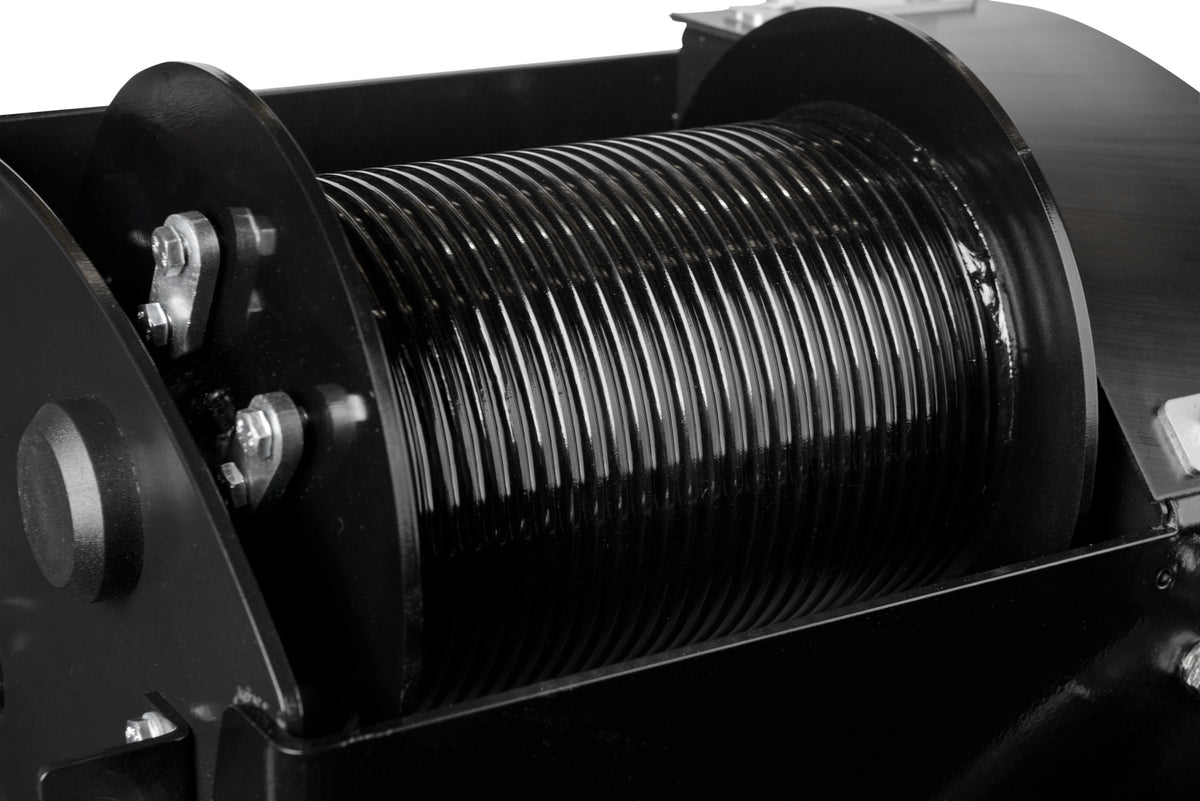

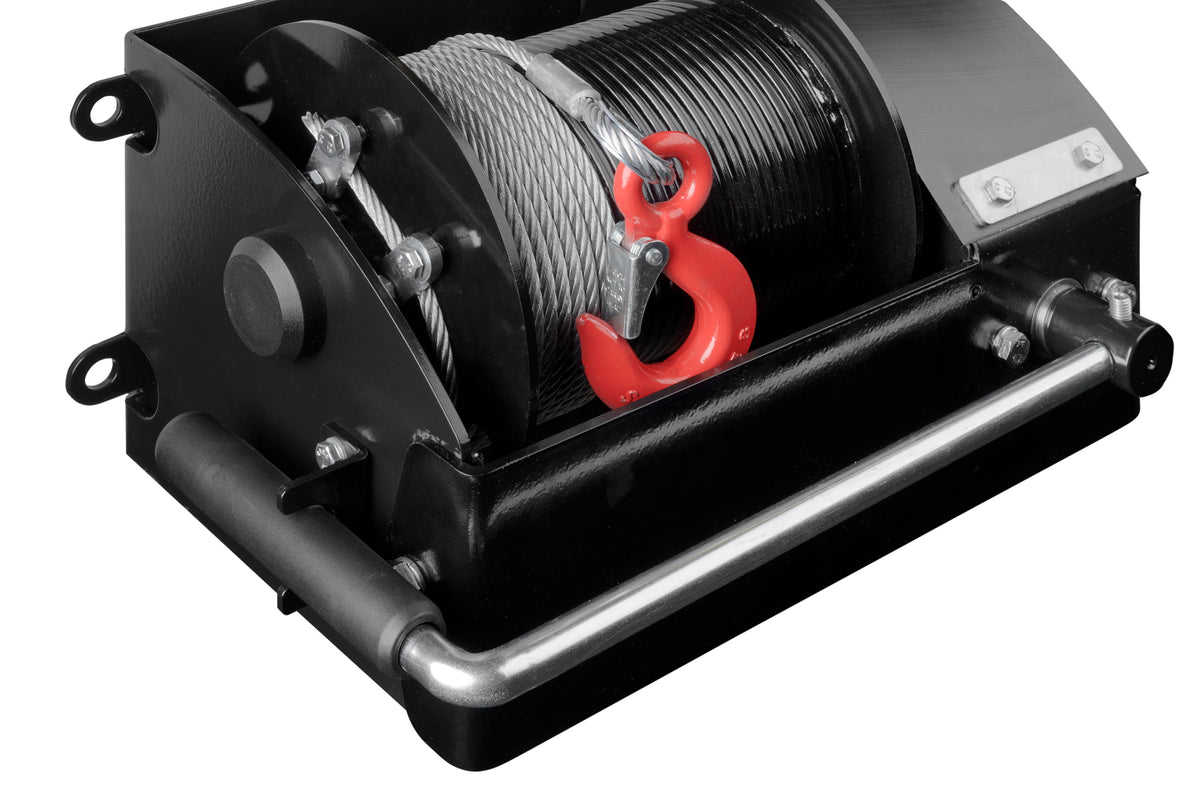

  • grooved drum for single-layer storage of wire rope

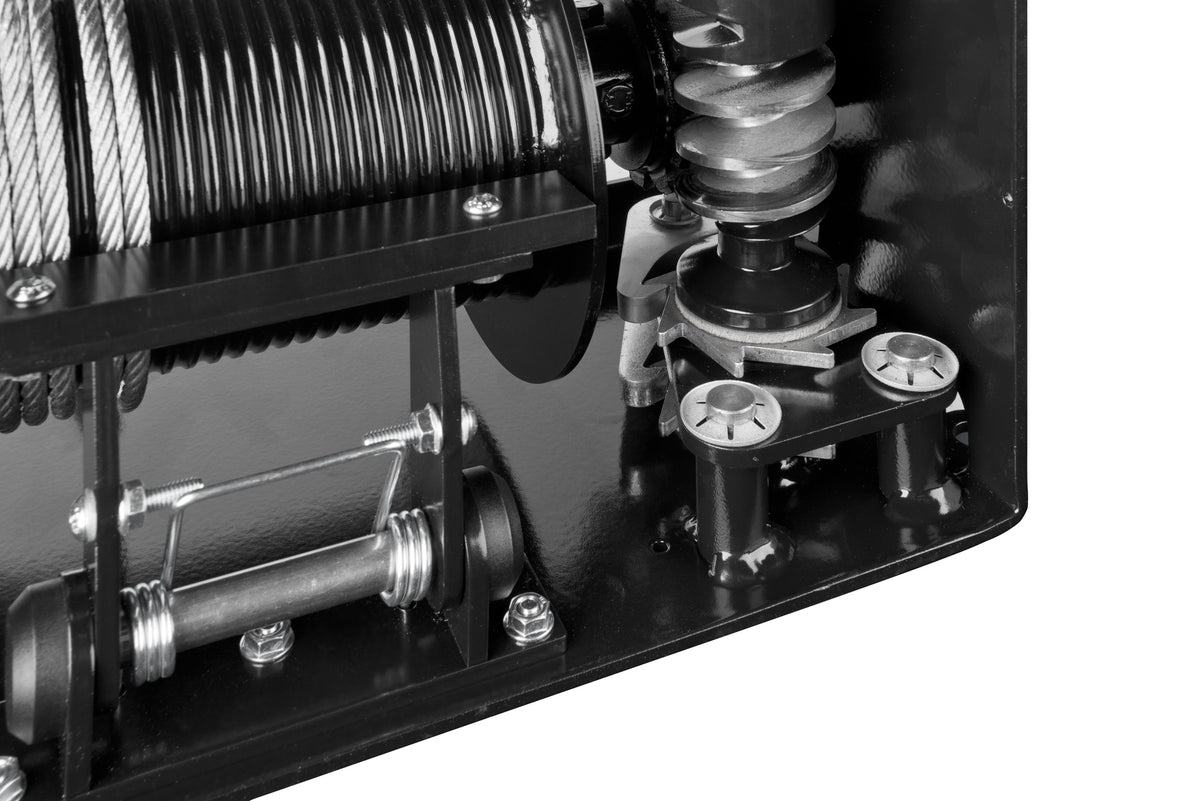

  • two load pressure brakes with double ratchet system for safe stable hold of the load in any position

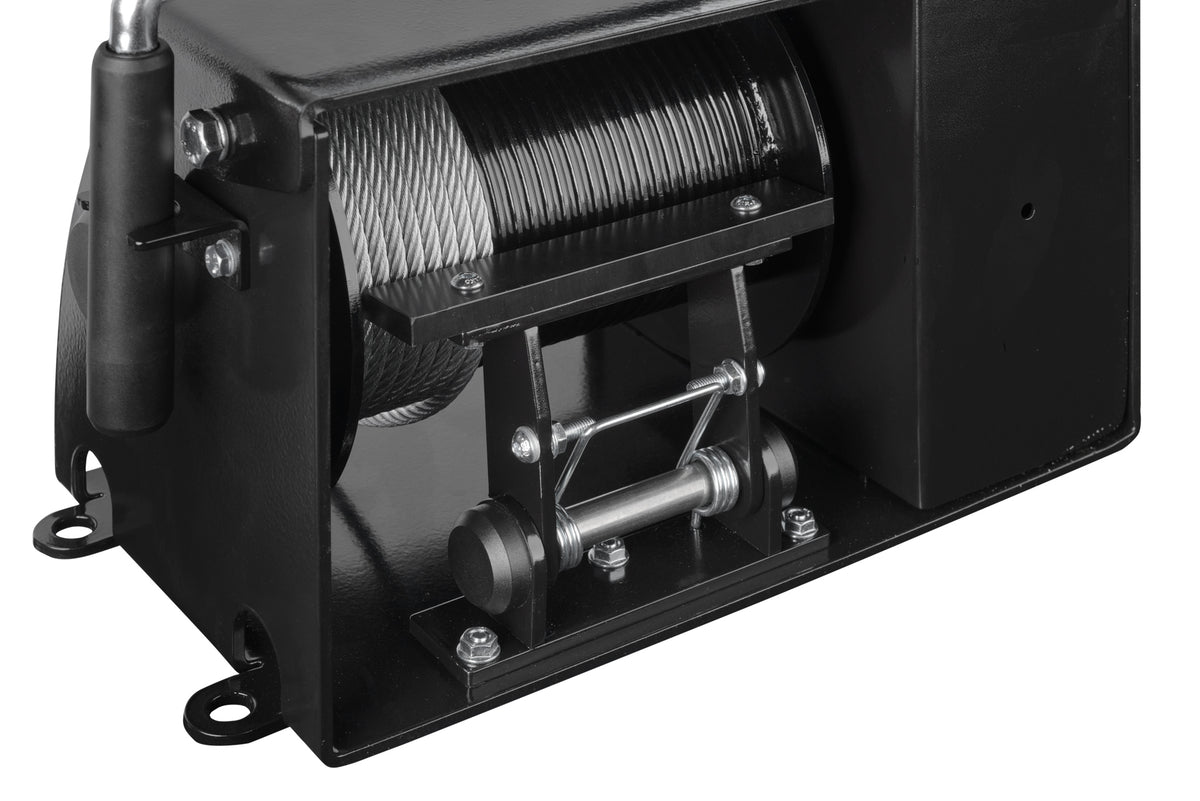

  • equipped with a spring loaded pressure roller for smooth winding on the drum
  • cable outlet upwards, downwards or at rear
  • double wire rope fastening for extra safety
  • adjustable and secured crank
  • suitable for wall mounting
  • 1 layer of paint

Available options

  • 2 drum compartment
  • Grooved drum
  • Pressure roller

        Technical specifications

        Capacity 1st layer

        300 kg

        Lifting speed

        0,8 m/min

        Rope diameter-Ø

        6 mm

        Rope storage 1st layer

        10 meter

        Crank effort at full load

        15 daN

        Weight (without rope)

        21 kg

        Article number

        77281340

        Type name

        TW300
