Neofeu Retractable Fall Arrester- 25mm Webbing (6m L)
Product No. NEO060
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Product details

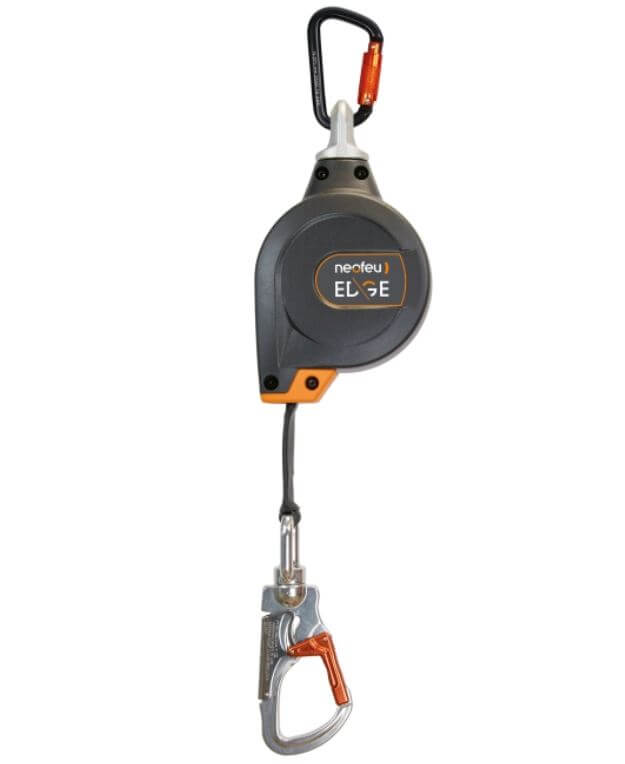

Neofeu Fall Arrester NEO060
The Eagle Edge is a fall arrester equipped with a 6 m webbing line retracting automatically and fitted with 2 pawls braking immediately in case of fall and with an internal energy dissipating element. Lightweight and compact, it is recommended for both vertical and horizontal use for all users weighing up to 140 kg.
International Shipment! For any inquiries, please contact us via Chat.
Spec Sheet - User Manual - EU Declaration of Conformity
FEATURES:
Vertical & Horizontal Use Approval
It offers protection against a horizontal fall such as individual trips while moving on a single level. It also protects users against a vertical fall where typically occurs when an individual falls from one level to another.
Fall Indicator Integrated to Connector
When the fall arrester has been subjected to a fall or other force, the fall indicator will turn Red. The exposed red color band serves an important safety function.
Webbing Retractable Type
It follows the movements of a user - extends as he moves away and retracts as he walks back. In the event of a fall where the webbing pulls out at an excessive speed, the braking mechanism immediately engages and arrests the fall.
Swivel Connectors on Top and Bottom
They allow for 360-degree rotation to prevent twisting and untwisting.
Dyneema Webbing (25mm Wide/6m Long)
Dyneema is one of the strongest fibres in the world, so it's well suited for applications where constant weather and wind exposure is expected.
• Vertical and horizontal use
• Maxi user weight 140 kg
• Dyneema webbing wide 25 mm (R>22 kN)
• Composite housing PA Polyamid + fiber glass
• Static resistance >15 kN
• Arrest force < 600 daN
• Vertical minimum clearance : 2.6 m
• Horizontal minimum clearance : 4.0 m
• Swivel anchor hook on top fitted with automatic twist lock connector in aluminum, opening 22 mm
• Automatic swivel connector on cable with fall indicator opening 28 mm in anodized aluminum
• Temperature of use : -30°C to +50°C
• Weight : 1.8 kg
• Standard : EN 360 : 2002, VG11.060 / 11.062
To learn more, please head over to our Fall Protection Equipment collection
Neofeu Antichute À Rappel Automatique À Sangle
L’Eagle Edge est un antichute équipé d’une longe sangle rétractable automatiquement de 6 m, muni d’un système à double cliquets permettant la retenue immédiate en cas de chute et d’un élément interne de dissipation de l’énergie. Léger et compact, il est recommandé aussi bien en utilisation horizontale que verticale, pour toutes personnes jusqu’à 140 kg.
Expédition Internationale! Pour toute demande, veuillez nous contacter via le Chat.
La Fiche Technique • Le Mode D'Emploi • La Déclaration ue de Conformité
SPÉCIFICATIONS TECHNIQUES:
- Utilisation verticale et horizontale
- Masse utilisateur maximale: 140 kg
- Longe Dyneema largeur 25mm (R>22kN)
- Carter en composite PA Polyamide + fibre de verre
- Résistance statique: >15 kN
- Force d’arrêt: < 600 daN
- Tirant d’air vertical: 2.6 m
- Tirant d’air horizontal: 4.0 m
- Anneau d’ancrage à émerillon avec connecteur aluminium à verouillage automatique, ouverture 22 mm
- Connecteur à émerillon et verrouillage automatique avec témoin de chute, ouverture 28 mm en aluminium anodisé
- Température d’utilisation: -30°C à +50°C
- Masse: 1.8 kg
- Norme: EN 360 : 2002, VG11.060 / 11.062
Pour en savoir plus, veuillez consulter la collection D'équipements de Protection Contre les Chutes
