Luxibel B Blinded

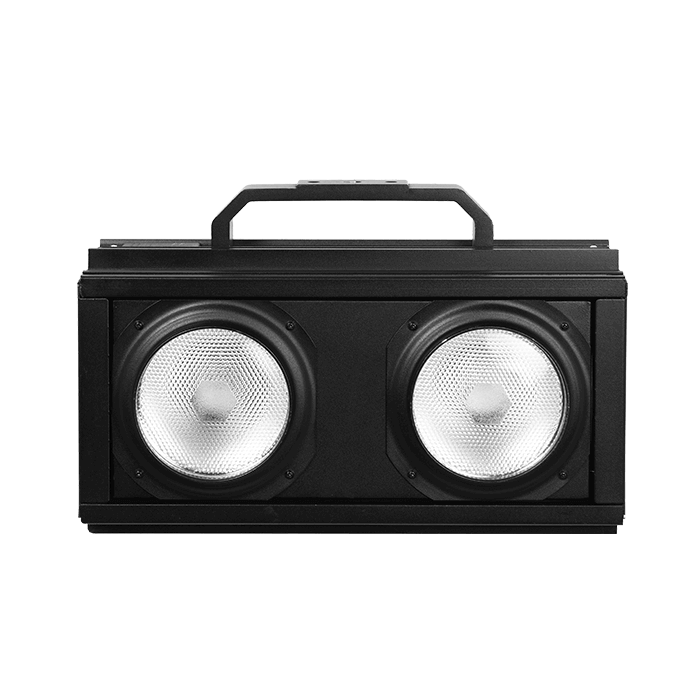

Luxibel B Blinded - 2x 110W LED Stage Blinder, Warm White w/ Amber Drift

☼ 2 x 110W  🗲 100V-240V; 50/60 Hz  ⇲ 50° Fixed Beam Angle  🖮 XLR 5 Pin IN/LINK

The B Blinded is the future of all blinders. A powerful blinder with a 2x 110 W warm white LED engine, including tungsten emulation feature. The output can be compared to DWE 2x 650 W but with many extra functionalities. No more dimmers, fewer cables, but more functions with faster installation and more creativity.

Furthermore, this versatile fixture is arrayable to make a 4, 6 or 8-lite blinder unit up to a 20-lite! Vertical or horizontal, it is up to your design!

The Tulip Stage at 2018 Tomorrow Land was equipped with many Luxibel lighting fixtures including 8 x B Blinded. This lighting fixture was used in other international festivals, e.g. Electrobeach Music Festival, Port Barcarès (France) ; Beleuvenissen, Leuven (Belgium) ; Openair Festival, St.Gallen (Switzerland)

What items are included?

1. Luxibel B Blinder
2. 1 x Power Cable
3. 1 x Hanging Bracket
4. 4 x Mounting Pins on Wire
5. Big Hanging Bracket (Optional)

Features:

• All weather use
• CE-Certified
• Extremely bright with a 15-degree tilt
• Quick Mounting System
• Strobe functions
• Refresh rate: 1.200 Hz
• DWE hot glow dimming below 10%
• Can be used for permanent lighting
• Arrayble portrait/landscape up to 10 units

Specifications

• OPTICAL:
  - Glass optics
  - LED sources: CREE LED
  - Beam angle: 50° (Fixed)
  - Light output: 3465 lux @ 2m | 915 lux @ 4m | 457 lux @ 6m
  - CRI: 81.9 CRI
  - Colour temperature: 2.700K - 1.200K in Tungsten mode
  - Tungsten mode: Amber is mixed at low light levels
  - Colours: Warm white + Amber
  - Dim Speed: Fast, smooth or under
• PHYSICAL:
  - Dimensions (WxHxD): 400 x 220 x 205 mm
  - Packing dimensions (WxHxD): 510 x 320 x 300 mm
  - Net weight: 6.2 kg
  - Gross weight: 7.2 kg

• CONTROL:
  - Menu: via LED Display with 4 buttons
  - Control: DMX512, manual
  - Dimmer mode: 0-100% - 8/16 bit mode
  - In/Link: XLR 5-Pin
  - DMX mode: 1/2/4/6/8 channels
  - Strobe: Adjustable speed + random

• ELECTRICAL:
  - Fixture rated power: 235W
  - LED engine: 2 x 110W
  - Input Power: 100 - 240V ~ 50/60 Hz - Auto switching power supply
  - In/Link: powerCON TRUE1 | max link current: 10A
  - Refresh Rate: 1.200Hz
• MOUNTING:
  - Hanging: Dedicated hanging bracket with M12 holes | Different jointing options depending on the matrix build up
  - Max. load per bracket: 10 units
  - Standing: On chassis
  - 2nd suspension/safety wire: Different possibilities (depending on the mounting options) | Eye bolt for carabiner

• ENVIRONMENTAL
  - IP Rating: IP x 4
  - Cooling: Very low noise level | Temperature controlled fan
