Doughty Standard Pantographs
Incl. VAT. Shipping calculated at checkout.
- Spring-balanced suspension. Constant tension springs balance the load so it can be positioned at any height by hand.
- Loads up to 36 kg. SWL of 12, 20, 27 or 36 kg depending on the number of springs.
- 2.2 m to 5 m drop. Fourteen models to suspend loads from overhead tracks or barrels.
- Spigot and receiver fitted. 28 mm spigot at the top and a 29 mm three-point TV receiver at the bottom.
- Cable management. Heavy-duty cable clips take one power and one signal lead.
Accepted payment methods
shipping
Standard Pantographs - Doughty Engineering

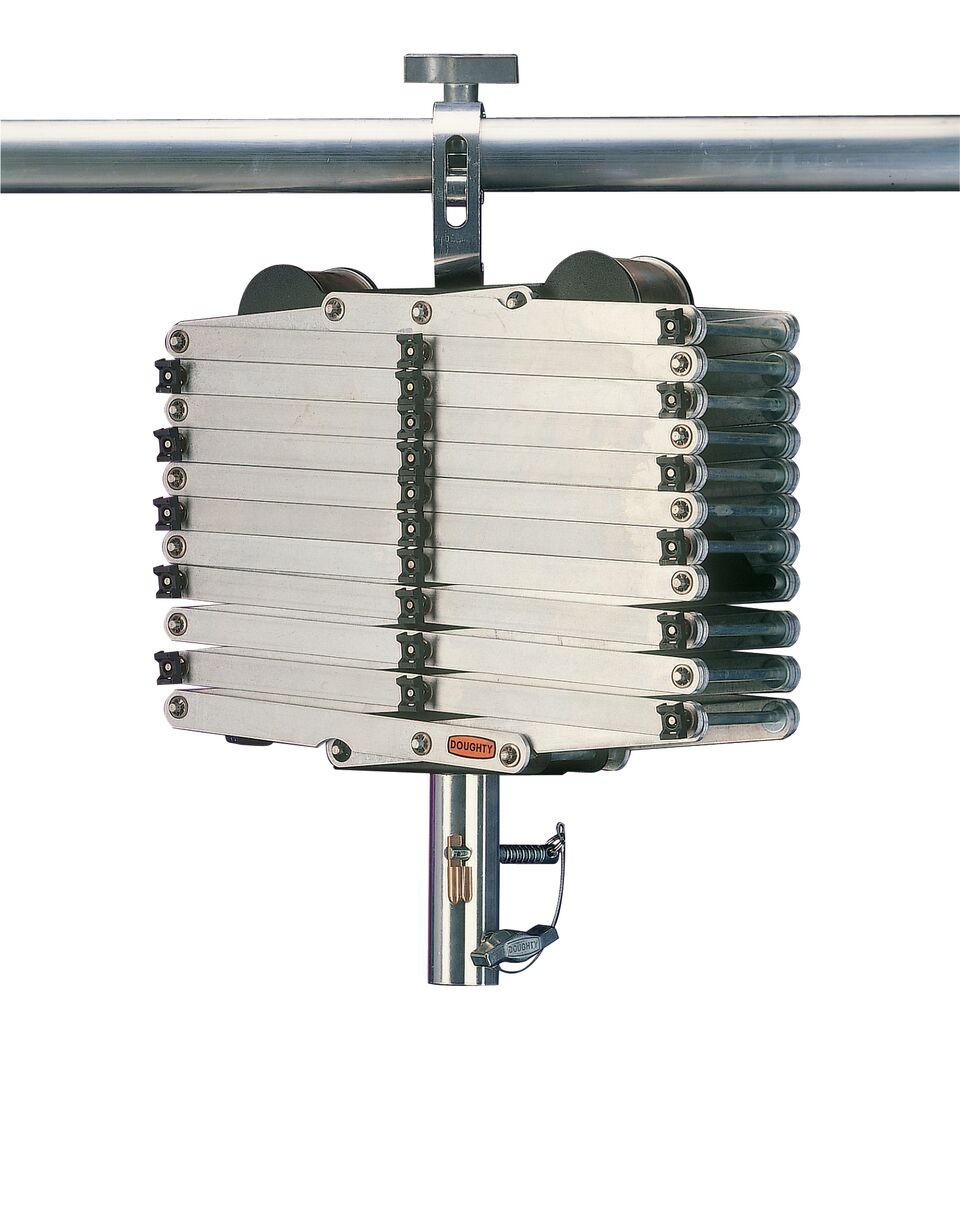

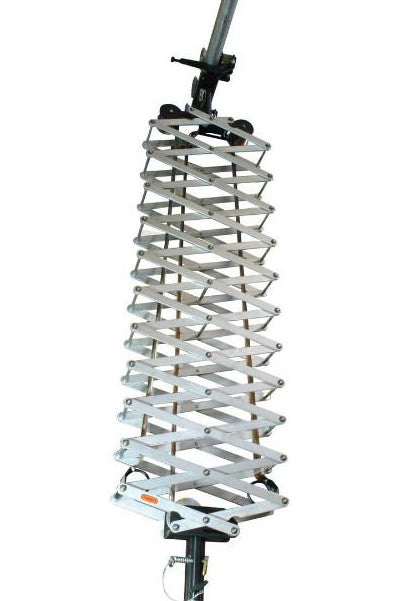

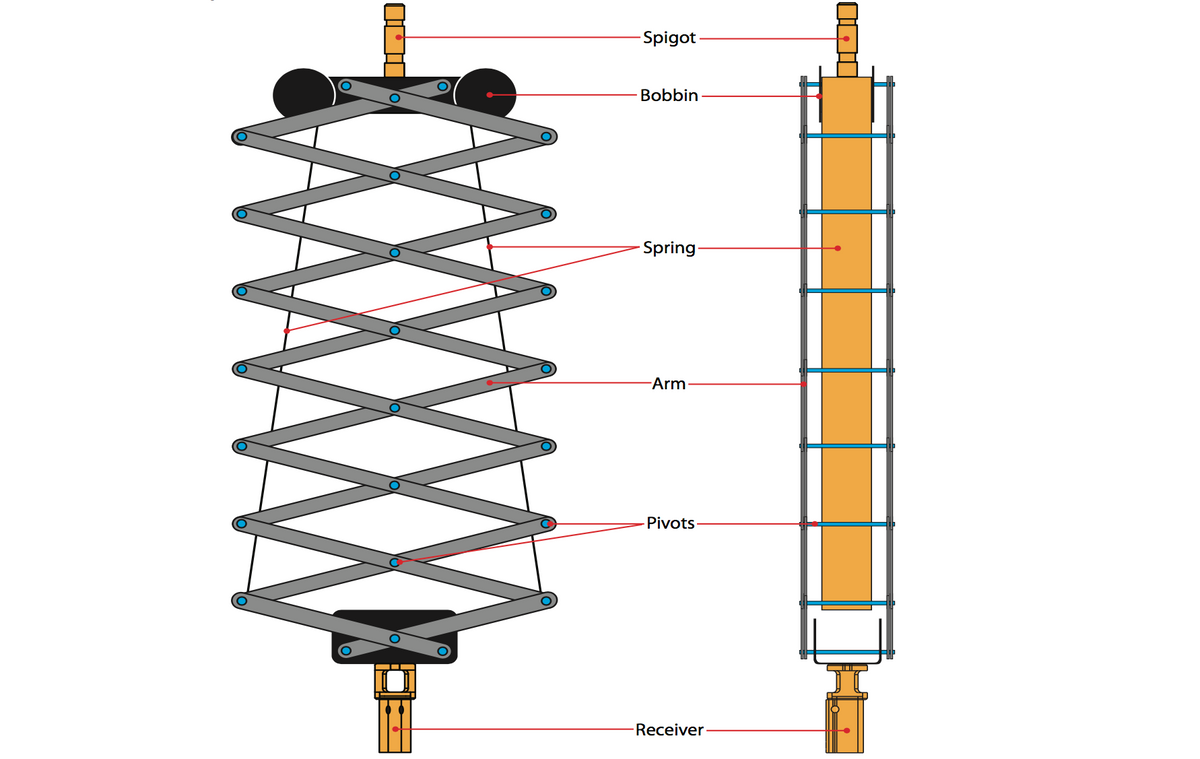

A pantograph is a mechanical device that enables a load to be suspended by the means of balancing the load with two or more constant tension springs. Once balanced the load can be positioned at any height within the range of the Pantograph by simply raising or lowering the load by hand. The Doughty Sprung Pantographs have been designed to be lightweight and compact with strength, safety, and ease of use being the main features.

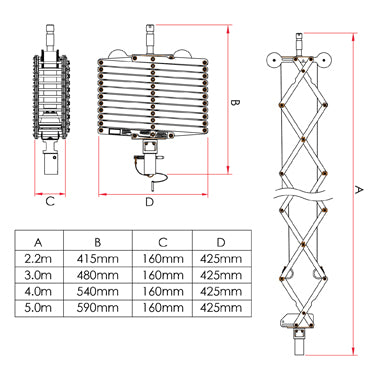

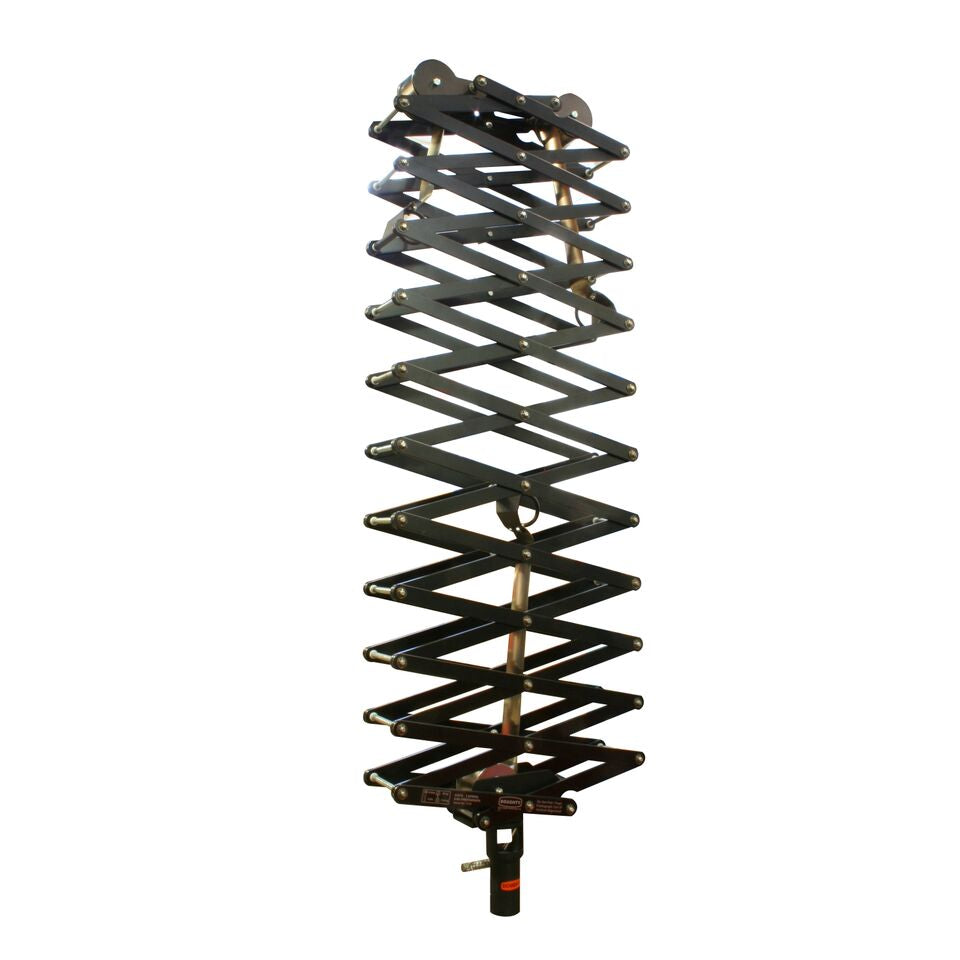

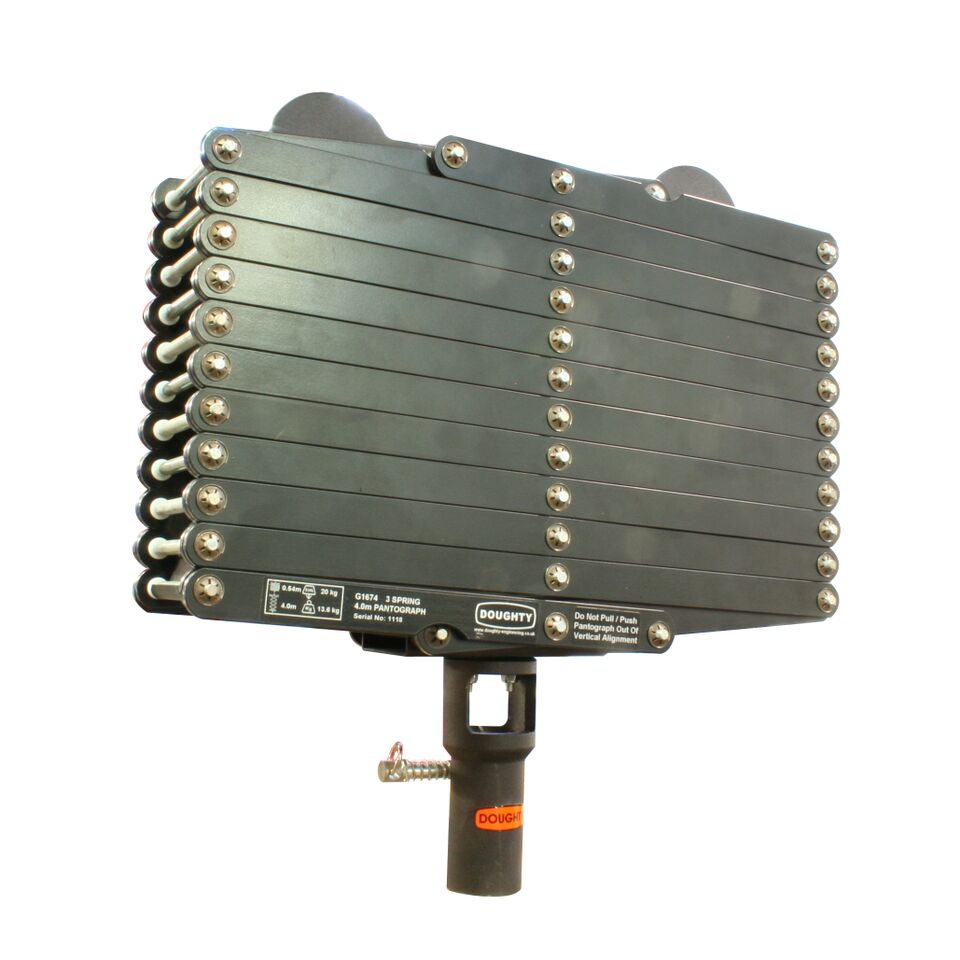

Loads up to 36kg can be suspended from overhead tracks or barrels. The standard pantograph range consists of fourteen models with 2 to 5 springs and a drop of 2.2 to 5 meters. Each Pantograph is fitted with a 28mm Spigot (top) and a 29mm three-point TV receiver (bottom). Heavy-duty cable clips are fitted to take one power and one signal lead. A minimum loading weight applies to all pantographs; lighter loads may require a ballast weight. Finish: black powder coat.
| Part No. | Springs | SWL | Max. Drop | Weight |
| G1660 | 2 | 12 kg | 2.2 m | 8.06 kg |
| G1662 | 2 | 12 kg | 3.0 m | 9.2 kg |
| G1664 | 2 | 12 kg | 4.0 m | 12.0 kg |
| G1666 | 2 | 12 kg | 5.0 m | 13.1 kg |
| G1670 | 3 | 20 kg | 2.2 m | 9.2 kg |
| G1672 | 3 | 20 kg | 3.0 m | 10.6 kg |
| G1674 | 3 | 20 kg | 4.0 m | 13.7 kg |
| G1676 | 3 | 20 kg | 5.0 m | 16.4 kg |
| G1680 | 4 | 27 kg | 2.2 m | 10.24 kg |
| G1682 | 4 | 27 kg | 3.0 m | 11.6 kg |
| G1684 | 4 | 27 kg | 4.0 m | 15.3 kg |
| G1686 | 4 | 27 kg | 5.0 m | 18.0 kg |
| G1694 | 5 | 36 kg | 4.0 m | 16.85 kg |
| G1696 | 5 | 36 kg | 5.0 m | 19.3 kg |
