Doughty Quin Sheave Pulley
Product No. T42814
Please Note: Pulleys are supplied without brackets. They will need to be selected and ordered additionally to suit individual requirements. Brackets must be factory fitted.
- Shipping note: All Doughty products ship from the UK with customs charges prepaid. If you have any questions, please contact us.
Shipping calculator
Payment methods
Product details

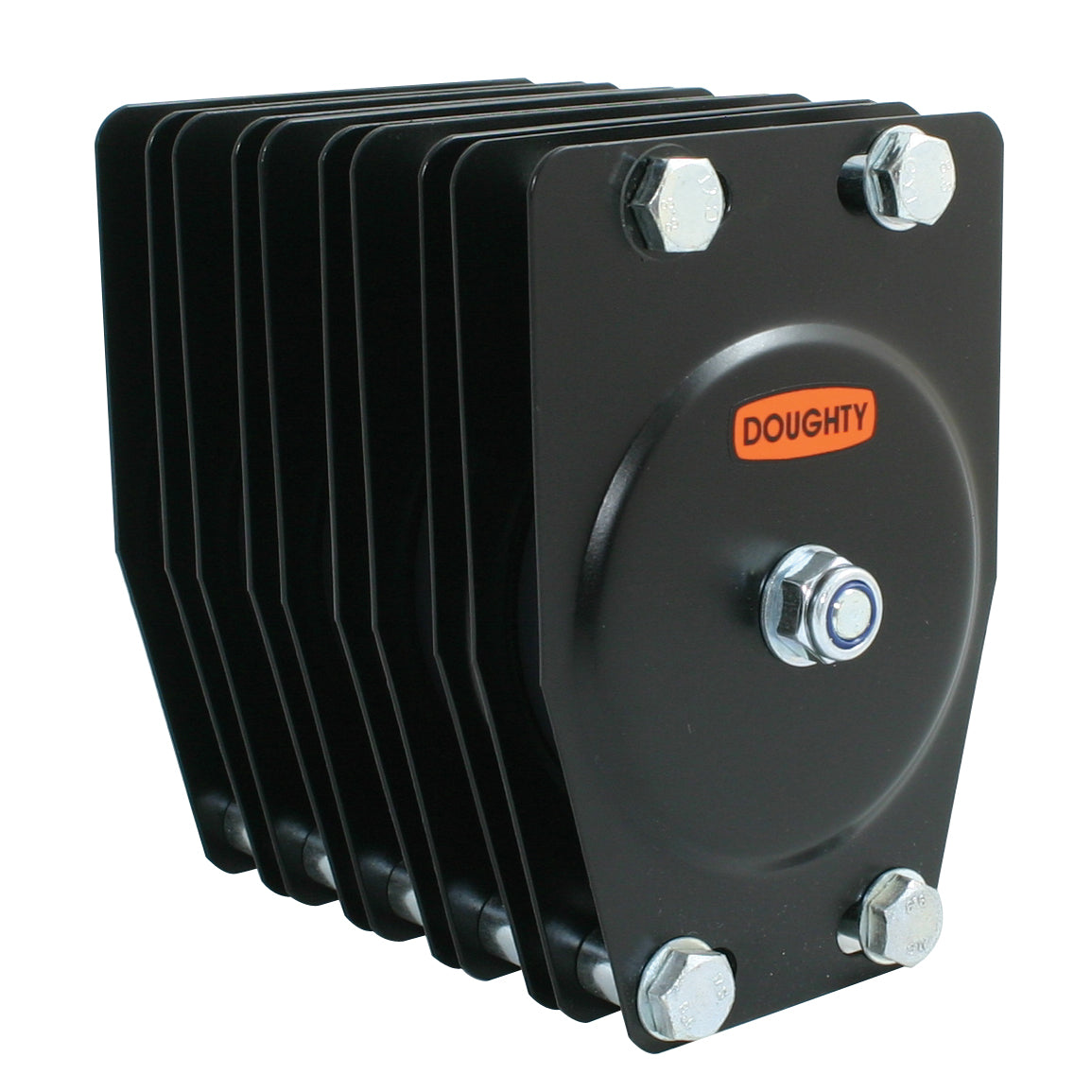

Doughty Quin Sheave Pulley
The Doughty Pulley system is of modular construction, allowing easy assembly of single or multiple sheave units from a limited range of standard components. With the addition of various brackets and fixings, the basic pulleys will fulfill a variety of specialist needs. This standard Pulley has a Nylon sheave running on a plain shaft. 100mm, 150mm, and 180mm diameter sheaves are available for Quin Sheave Pulley. Sheaves are available for fiber or wire ropes.
Doughty Quin Sheave Pulleys have a safe working load of 150 kg. Designed for use within the theatre, film and TV Industries. A basic quin sheave pulley is ready to accept any of the range of fixings. To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required ie. T42800 + T42865 = 100mm Single Pulley (for wire) fitted with Awning Block.
Specifications:
The recommended sizes for Hand Ropes & Wires are:
- 100mm Diameter Sheave - 12mm Rope – 4mm Wire
- 150mm Diameter Sheave - 18mm Rope – 6mm Wire
- 180mm Diameter Sheave - 18mm Rope – 6mm Wire
- SWL: 150 Kg
- Width: 148mm
Brackets for Doughty Standard Pulleys:
- Multibeam Girder Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Girder Brackets: To be used with girders
- Wall Side Plates: To mount any size pulley to wall
- Multifix Brackets: To make wall mounted, ceiling mounted and upright guide pulleys, as well as cross tube assemblies.
