Doughty Lindapter Flange Clamp (Max. 23mm Thick) (3 pieces)
Product No. T29700
*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.
Please note if you order less than €50 worth of Doughty products, your order will be refunded.
Shipping calculator
Payment methods
Product details

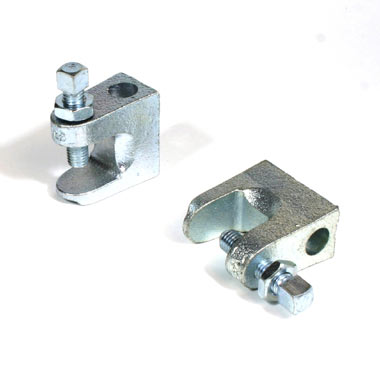

Lindapter Flange Clamp
The Lindapter Flange Clamp is designed specifically to mount on to Girder Flanges/Flange Beams. It uses a Hex Set Screw which is a high-tensile cup point screw for a secure grip.

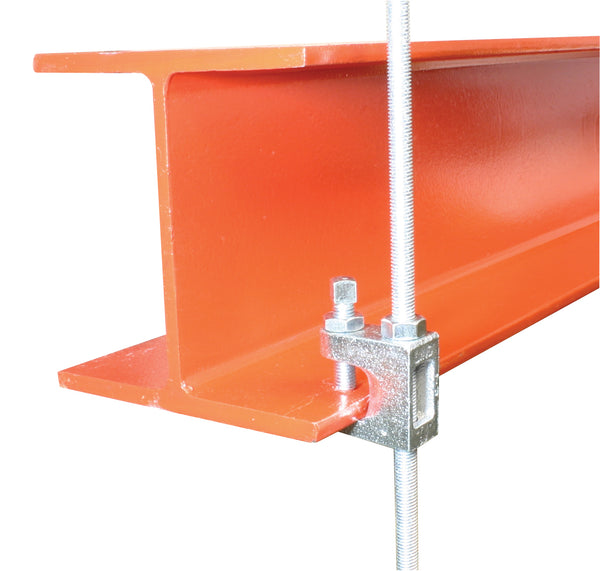

With the rear hole with 13mm diameter, it can be used to drop M12 studding from flanges up to 23mm thick for suspending loads.
Lindapter Flange Clamp provides a faster, cost-effective alternative to on-site drilling or welding. It also reduces installation time and labour costs.
For any inquiries, please contact us via chat.
Specifications:
- Clamping Thickness: 3 - 23mm
- SWL: 300Kg
- Fixing: M12 Hole
- Weight: 0.2kg
- Material: Steel

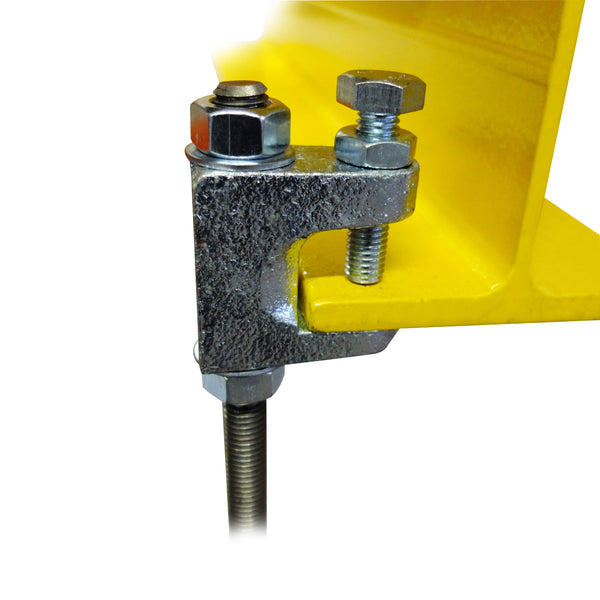

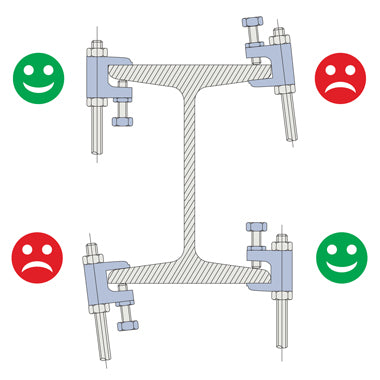

Lindapter Flange Clamp Installation:
1) Slide the clamp onto the beam flange and tighten the Set Screw to the recommended torque (See the spec sheet).
As a guide, tighten the Set Screw finger tight and then apply an additional quarter turn (90°) with a spanner.
2) Tighten the locknut (N) to the recommended torque (See the spec sheet).
