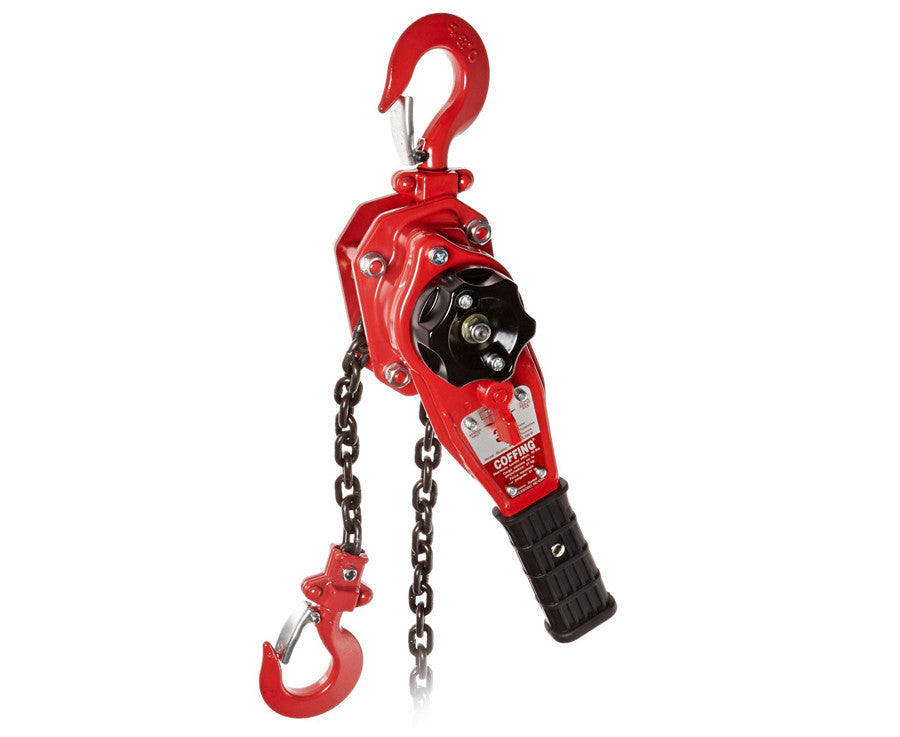

Coffing Lever Hoist (LSB-B) 750kg

Product No. 09421W

Regular price €514.48 excl. €118.33 VAT €632.81 incl. €118.33 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

The product is currently Out-of-Stock! Please visit our Manual Chain Hoist collection or contact us via Chat.




Coffing Lever Hoist - High-performance Lifting Tool You Must Have

Coffing is part of the Columbus McKinnon(CM) family of brands.

Coffing Hoists offers a diverse range of lifting and positioning products, including manual and powered hoists and trolleys. Widely recognized in manufacturing plants throughout North America, Coffing provides economical, user-friendly hand chain hoists and lever tools for maintenance and repair.

Coffing Lever Hoist is made of the best-selected materials to provide long dependable service for users. It is manufactured and processed by skilled engineers under strict quality control. All have been tested at 125% of rated capacity and inspected per ASME B30.21 before leaving our factory.


The model LSB-B is lightweight, durable, and ideal for construction and commercial applications. It is stamped steel and features a through-hardened load chain. This model LSB-B has a rated load of ¾ tons with a 10’ lift.

Hoist Safety

Before operating, please ensure the following:
  • Lift and lower the load about 4'' and test the bake system
  • Use only alloy chain and attachment for overhead lifting
  • Read and follow the user manual.
During operating, please ensure the following:
  • Don't exceed the working load limit
  • Don't use equipment to lift people or loads over people
  • Loads must be lifted as slowly as possible, especially in subzero temperatures.
  • Avoid load swinging and abrupt shocks. They will impose on the lever hoist excessive burdens.
  • Never use the hook directly on a load
    Hoist Safety

Hoist Maintenance

  • After Use: Wipe off the dust, dirt, and moisture thoroughly before storage
  • Storage:
    - Always store the lever hoist in a dry airy place. Never leave the lever hoist in a damp environment.
    - Never store the lever hoist with the brake system locked. Loosen the brake system by operating it.
  • Inspection: If any defect is found, replace the defective components before using the lever hoist again.
  • Load Chain Replacement: Replace the whole load chain immediately even there is only one link of the load chain is worn-out, elongated or damaged.
  • Lubrication: Proper and regular lubrication will prolong the service life. For chain lubrication, please ensure to do it along the whole length with machine oil between links:Hoist Maintenance

Features & Specifications

  • Impact-resistant, stamped steel housing withstands rigorous use. Compact design is portable and easy to rig.
  • Double reduction gearing and short, cushioned-grip handle provide easy operation with minimal handle effort.
  • 360° rotating handle provides versatile rigging options when used in confined spaces.
  • The state-of-the-art freewheeling mechanism allows quick and easy one-handed take-up and positioning of slack chain.
  • Enclosed screw-and-disc type load brake stays clean and dry for positive load positioning. Latches on hooks provide positive load engagement.
  • Lifetime warranty.
  • Product Type: Lever Hoist
  • Brand: Coffing
  • Capacity: ¾ Ton or 750kg
  • Lift: 10’
  • Hoist Model: LSB-B
  • Type: Chain
  • Headroom: 11-7/16”
  • Anchor Sling Installed: No
  • Product Weight: 14 lbs
  • Lever Length: 9.25”
  • Reeving: 1
  • Warranty: Lifetime
  • Metric Rated: Yes
  • Average Handle Effort: 46 lbs
