Camlok Pile Pitching Clamps CP 2000-5000 KG
€1,003.22incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Sheet pile pitching. Designed specifically for pitching sheet steel piling.
- 15 m release rope. Lets the clamp be released from the ground.
- Shackle fitted as standard. Supplied ready to connect.
- WLL 2000 kg to 5000 kg. Not designed for extracting driven piles.
Capacity kg:
2000
Accepted payment methods
Please enter correct zip code
shipping

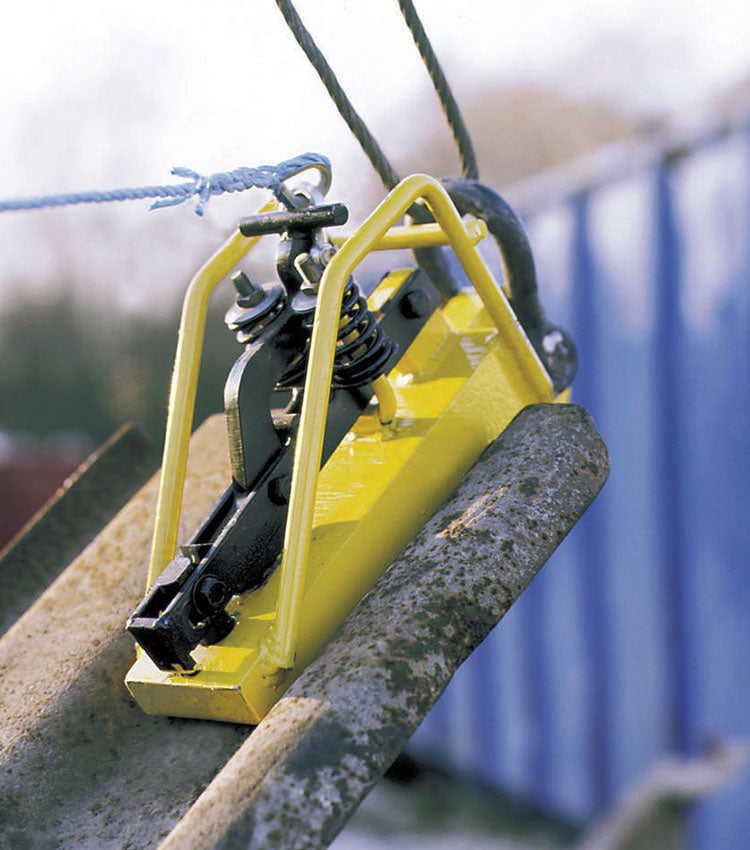

Camlok CP Pile Pitching Clamps
The CP pile pitching clamps are specifically designed for pitching sheet steel piling. These clamps come fitted with a 15-metre length of rope which allows the clamp to be released from the ground. The clamp comes fitted as standard with a shackle.
SPECIFICATIONS
- Capacity (WLL): 2000 kg - 5000 kg (depending on model)
- Jaw Capacity: 20 - 35 mm (depending on model)
- Throat Depth: 228 mm
- Weight: 19 kg - 28 kg (depending on model)
- NB: These clamps are NOT designed for extracting driven piles.
| Model | WLL | Jaw Capacity | Throat Depth | Weight |
|---|---|---|---|---|
| CP 2 | 2000 kg | 20 mm | 228 mm | 19 kg |
| CP 3 | 3000 kg | 26 mm | 228 mm | 22 kg |
| CP 5 | 5000 kg | 35 mm | 228 mm | 28 kg |
