Doughty Triple Sheave Pulley

Product No. T42812

*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.

Please note if you order less than €50 worth of Doughty products, your order will be refunded.

Regular price $135.00 excl. $31.05 VAT $166.05 incl. $31.05 VAT
Unit price  per
SIZE
USE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

Triple Sheave Pulley - Doughty Engineering

The Doughty Pulley system is of modular construction, allowing easy assembly of single or multiple sheave units from a limited range of standard components. With the addition of various brackets and fixings, the basic pulleys will fulfill a variety of specialist needs. It is designed for use within the theatre, film and TV Industry.

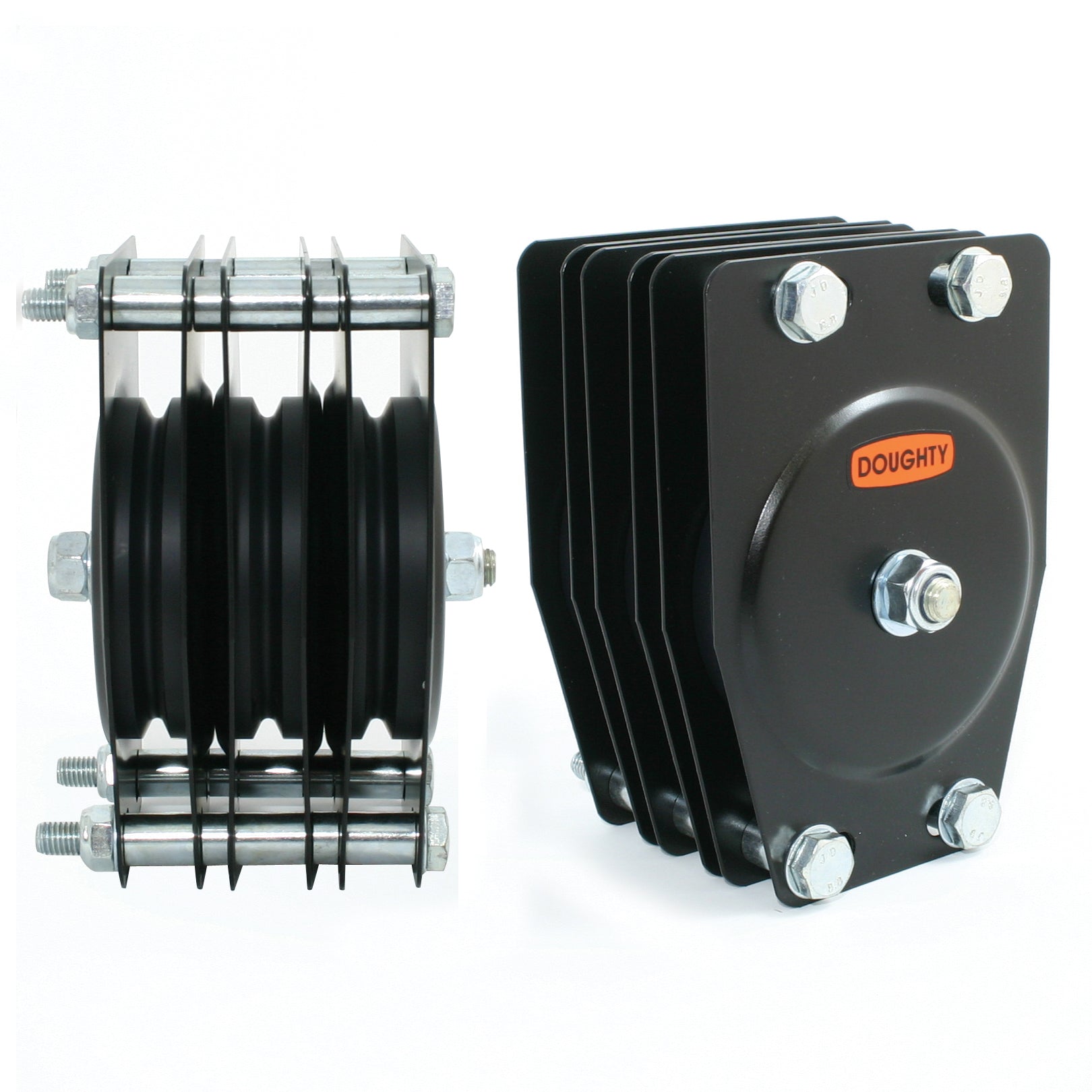

This triple sheave pulley consists of three sheave units. Sheaves are available for fibre or wire ropes. All Standard Doughty Pulleys have a safe working load of 150 kg. This triple sheave pulley is ready to accept any of the range of fixings. Three sizes of a sheave are available - 100mm, 150mm, and 180mm diameter.

To order pulleys, please state part numbers of:

1. Basic Pulley required
2. Fixing System required ie. T42800 + T42865 = 100mm Single Pulley (for wire) fitted with Awning Block.

For any inquiries, please contact us via chat.

User Manual


Features:

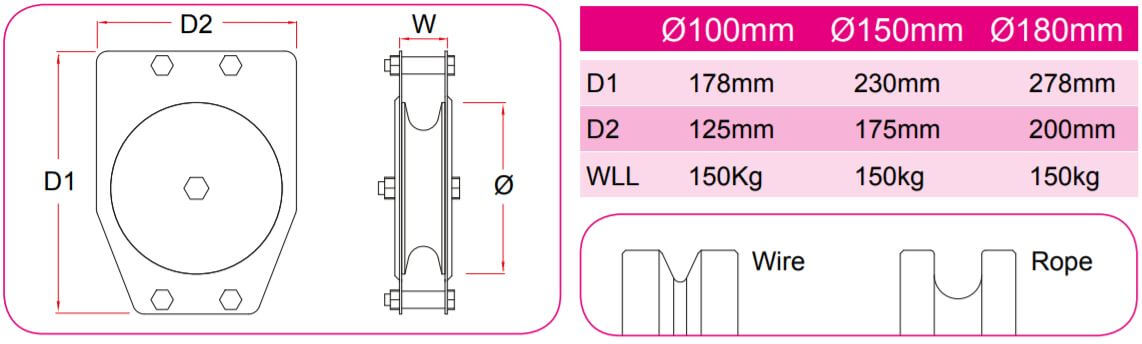

  • The recommended sizes for Hand Ropes & Wires are:
    100mm Diameter Sheave - 14mm Rope – 4mm Wire
    150mm Diameter Sheave - 18mm Rope – 6mm Wire
    180mm Diameter Sheave - 18mm Rope – 6mm Wire
  • Width: 85mm. Same for all sizes
  • SWL: 150kg. Same for all sizes

Brackets for Doughty Standard Pulleys:

stage pulleys
