Doughty Rail - Top Hat Bracket (Steel) [Multi-Pack]

T81140-10

€56.80 Excl. VAT Shop in GBP (£)

Height

25mm

50mm

Qty

10

15 [3% Off]

20 [5% Off]

50 [7% Off]

Qty

Collections: All Products, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

Doughty Rail - Top Hat Bracket

Doughty rail is an Extruded Aluminium Walk-along Curtain Rail System. The compact and low-profile design makes Doughy rail highly versatile and perfectly meet the needs of smaller studios, drama studios, black box theatres, churches, schools, village halls, architectural and residential projects, and even pubs.

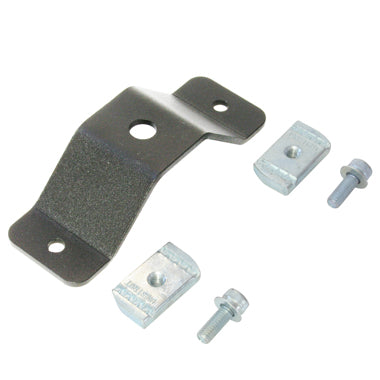

The Doughty Rail Top Hat Bracket is a mild steel bracket. Secured in place with M6 Unistrut nuts, the ceiling mount enables Doughty Rail to be fixed with an M10 stud, giving approximately 15mm and 40mm of height adjustment for 25mm and 50mm top hat respectively.

For any inquiries, please contact us via chat.

Doughty Rail User Manual

Specifications:

Dimension: 40mm x 120mm
Size: 25mm and 50mm Top Hat
SWL: 60kg for both Top Hats
Material: Steel
Finish: Powder-Painted Black
Weight:
25mm Top Hat: 0.46kg
50mm Top Hat: 0.47kg
Height adjustment:
25mm Top Hat: 15mm
50mm Top Hat: 40mm

Doughty Rail System Diagram:

For the detailed installation, please always refer to the user manual. Installation should only be carried out by a competent person who is familiar with track/rail installations. The installer must make sure the structure of the building and method of installation is suitable to hold Doughty Rail and loads safely.

A) The straight rail in the whole piece

Doughty Rail System

B) The joint straight rail

Doughty Rail System
