Doughty Bow Shackle - Screw Pin

Bow Shackle-Screw Pin

Shackles are the most versatile rigging hardware providing a strong connection for multiple industries. Doughty Bow Shackle-Screw Pin or called screw pin anchor shackle is designed for easy assembly and disassembly. Note: The pin has to be tightened prior to each lift. This range is perfect for temporary lifting jobs or those that require frequent connects and disconnects e.g. stage. If a permanent installation is required, the screw pin type is not suitable.

These galvanized shackles also offer excellent protection from rust and corrosion, making it a budget and good quality choice. Unlike Chain Shackles, this range features a more generous loop that can be used in entertainment rigging applications to gather multiple sling legs or perform side-loading tasks with a required reduction in Working Load Limit (see the reference sheet below).

Multiple bow shackle sizes are available with a silver pin (T39100, T39200, T39300, T39400) or a green pin (T39101, T39201, T39301, T39401).

Spec Sheet - Reduction in WLL Reference

FEATURES:

• Forged steel shackles with Grade 6 rating

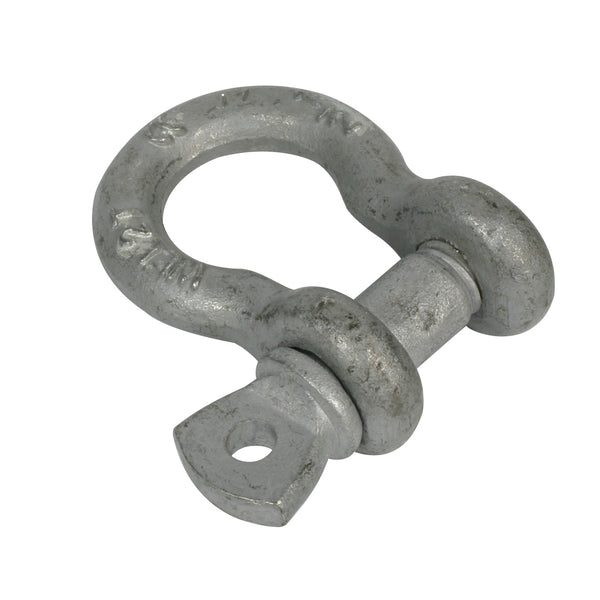

• Silver Pin - An economical range of galvanized shackles rated and marked with a Working Load Limit (WLL).

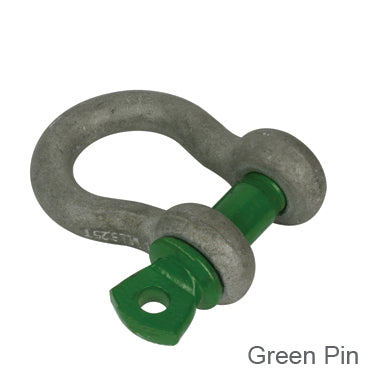

• Green Pin - A range of galvanized shackles with an easily identifiable "Green Pin". These shackles are rated and marked with a WLL.

SPECIFICATIONS

• Standard: EN 13889, US Federal Specification RR-C-2718

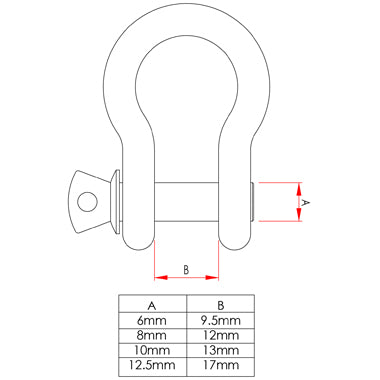

• Screw Pin Size / Mouth Width:
  - 6mm/9.5mm
  - 8mm/12mm
  - 10mm/13mm
  - 12mm/17mm
• WLL:
  - 330kg for 6mm pin diameter
  - 500kg for 8mm pin diameter
  - 750kg for 10mm pin diameter
  - 1500kg for 12mm pin diameter
