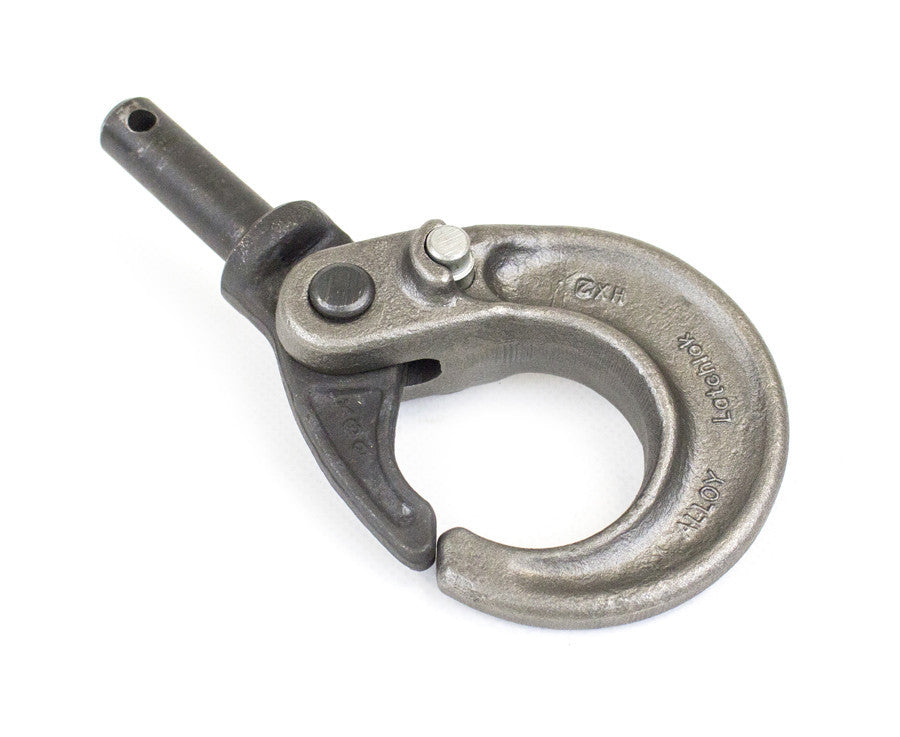

CM Lodestar Hoist Part - Upper Hook (Latchlok Type) - Large Frame R & RR
€642.40incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Latchlok upper hook. Replaces the standard upper hook on Lodestar electric hoists.
- Model R and RR. Fits all Lodestar Models R, R-2, RR and RR-2, Classic and Next Gen.
- Inspection guidance. Per ASME B30.10, remove from service on visible damage such as wear over 10%, deformation or an inoperative latch.
Accepted payment methods
Please enter correct zip code
shipping
Lodestar Hoist Part - Upper Hook (Latchlok Type)
This is a Latchlok style Upper Hook for all Lodestar Model R & RR Hoists (Models R, R-2, RR & RR-2), including both Next Gen and Classic Models. CM’s Latchlok hooks are available to replace the standard upper and lower hooks used on the Lodestar Electric Hoists.
Based on ASME B30.10, hooks shall be removed from service if damage such as the following is visible and shall only be returned to service when approved by a qualified person:
- Missing or illegible rated load identification or illegible hook manufacturers' identification or secondary manufacturer's identification.
- Excessive pitting, corrosion, cracks, nicks, or gouges.
- Wear: Any wear exceeding 10% of the original section dimension of the hook or its load pin.
- Deformation: Any visibly apparent bend or twist from the plane of the unbent hook.
- Throat opening: Any distortion causing an increase in the throat opening of 5% not to exceed 1/4 in (6 mm).
- Inability to lock: Any self-locking hook that does not lock.
- Inoperative latch: Any damaged latch or malfunctioning latch that does not close the hook's throat.
- Thread wear, damage, or corrosion.
- Evidence of excessive heat exposure or unauthorized welding.
- Evidence of unauthorized alterations such as drilling, machining, grinding, or other modifications.
Hook Inspection Table
CMCO Product safety warnings & precautions
