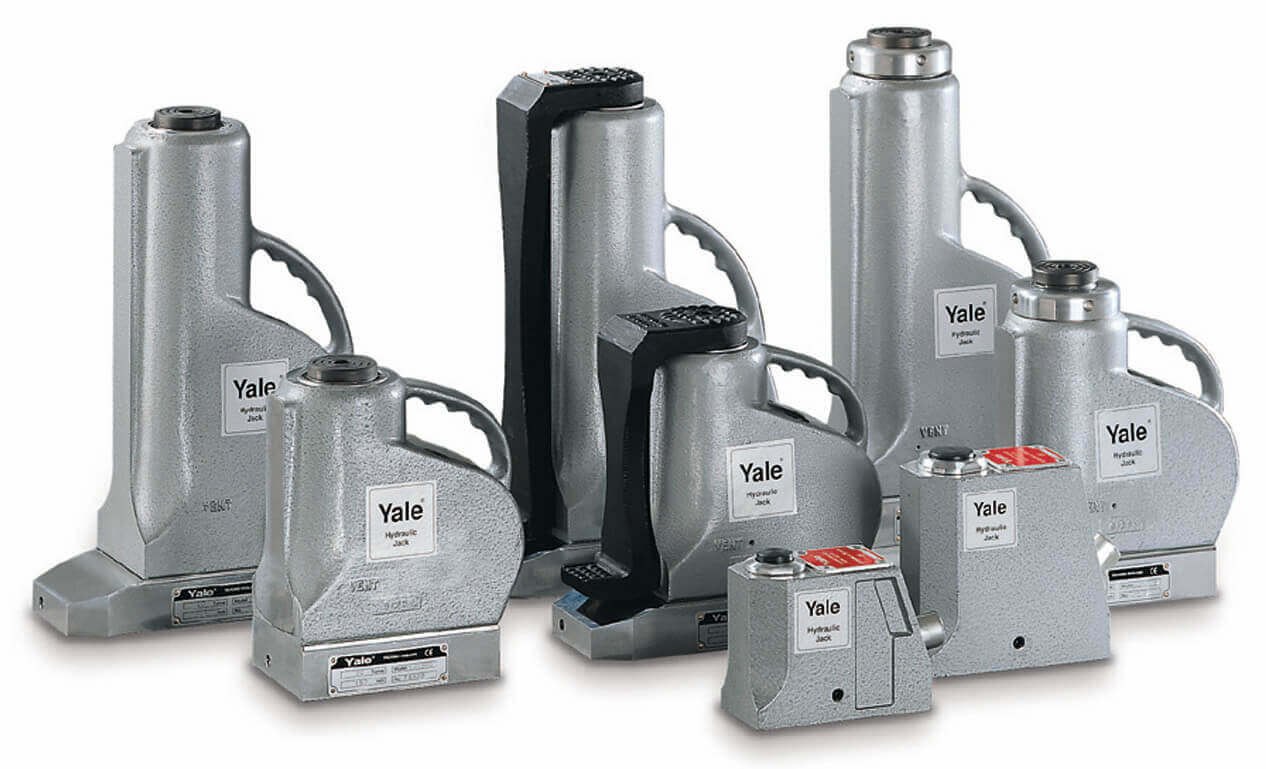

Yale Aluminium Jacks AJH/AJS 6.5-100 t

Yale |
SKU: N13200950
€1,400.63incl. VAT

Incl. VAT. Shipping calculated at checkout.

  • 6.5 t to 100 t capacity. High tensile aluminium alloy gives a 1.8 t lifting capacity per 1 kg weight ratio.
  • Extremely low weight. From 3.6 kg (AJS-65) to 49 kg (AJH-6100).
  • Overload protection valve. Fitted to all jacks, with a hardened alloy steel saddle and sensitive lowering valve.
  • Strokes from 75 to 305 mm. Long-stroke models have an elongated base plate for extra stability.
  • Ready to use. Supplied with hydraulic oil, operating lever and, where applicable, carrying handle.
View Full Description Technical Data
Capacity t: 6.5T/131mm

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Aluminium Jacks AJH/AJS 6.5-100 t

Aluminium jacks combine light weight with high lifting capacity. The use of high tensile aluminium alloy allows lifting capacities of up to 100 tonnes, resulting in a very favourable lifting capacity of 1.8 tonnes per 1 kg of jack weight.

Operation of Yale hydraulic jacks is very simple. Jacks are supplied ready for use, including hydraulic oil, operating lever and, where applicable, carrying handle. The models listed here are the standard type with plain piston.

User Manual

FEATURES:

  • Extremely low weight
  • Strokes from 75 to 305 mm.
  • The 6.5 and 10 t jacks can be operated in any position (also upside down) and are equipped with spring return piston and stop ring.
  • The 20 to 100 t jacks can be operated vertically or front face horizontally; from 20 t with additional mechanical stroke limiter.
  • All jacks provided with an overload protection valve.
  • Hardened alloy steel saddle and sensitive lowering valve which is activated by the operating lever.
  • All jacks with long stroke (305 mm) have an elongated base plate for increased stability.
  • Applications: Hydraulic jacks are universally popular tools for use in workshops or on-site for all kinds of lifting and assembly applications, for construction, shipbuilding, power plants, general engineering, metal fabrication and many more.

SPECIFICATIONS:

  • Capacity: 6.5 t - 100 t
  • Stroke: 75 mm - 305 mm
  • Base Plate: 159 x 76 mm to 305 x 250 mm
  • Weight: 3.6 - 49 kg

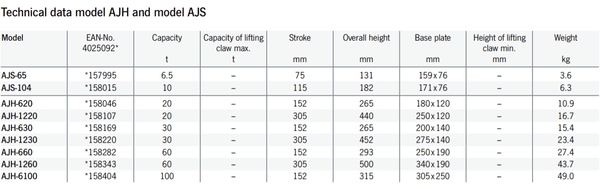

Model Art.-No. Capacity Stroke Overall height Base plate Weight
AJS-65 N13200950 6.5 t 75 mm 131 mm 159 x 76 mm 3.6 kg
AJS-104 N13200951 10 t 115 mm 182 mm 171 x 76 mm 6.3 kg
AJH-620 N13200952 20 t 152 mm 265 mm 180 x 120 mm 10.9 kg
AJH-1220 N13200955 20 t 305 mm 440 mm 250 x 120 mm 16.7 kg
AJH-630 N13200958 30 t 152 mm 265 mm 200 x 140 mm 15.4 kg
AJH-1230 N13200961 30 t 305 mm 452 mm 275 x 140 mm 23.4 kg
AJH-660 N13200964 60 t 152 mm 293 mm 250 x 190 mm 27.4 kg
AJH-1260 N13200967 60 t 305 mm 500 mm 340 x 190 mm 43.7 kg
AJH-6100 N13200970 100 t 152 mm 315 mm 305 x 250 mm 49.0 kg
