Yale Double Acting Hydraulic Cylinder YH

YH 5/30

Capacity
Stroke

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

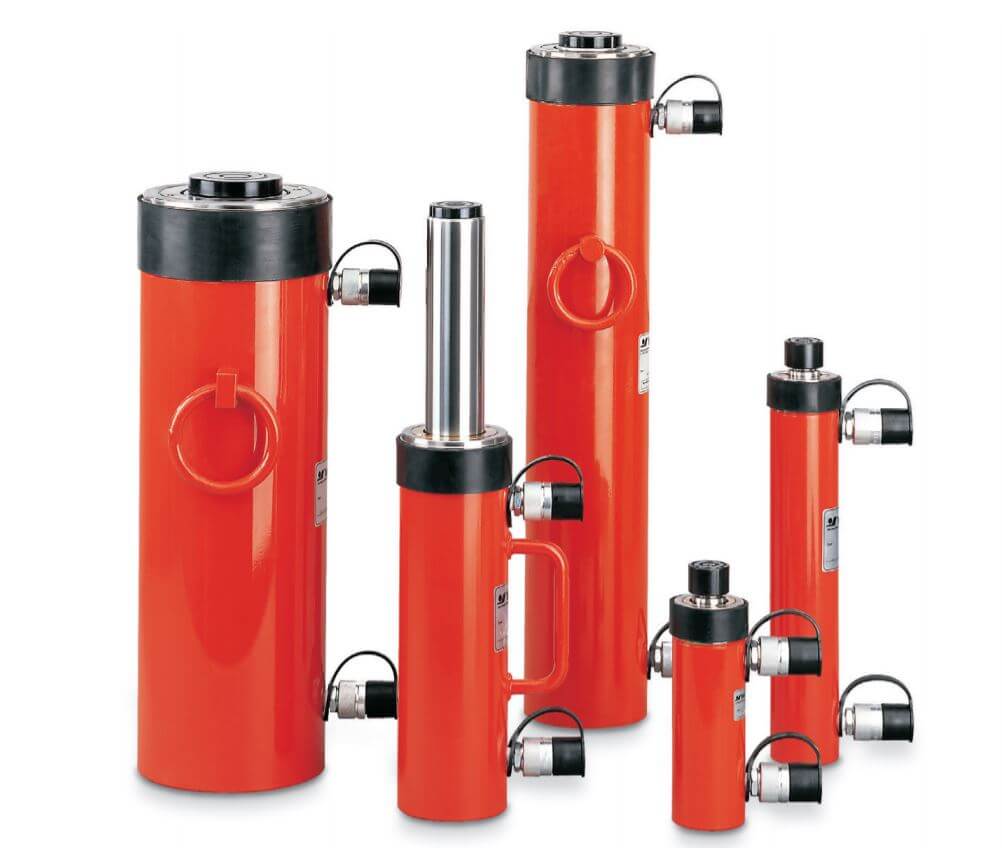

Double Acting Hydraulic Cylinder

Capacity 5 – 200 t

These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed.

Major areas of application are bridge-building and civil engineering, off-shore, shipbuilding, etc. They can also be used as a power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required.

User Manual


FEATURES

  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Double-acting with hydraulic return.
  • Long bronze piston guidings.
  • Piston strokes from 30 up to 500 mm.
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
  • Double bronze bearing of the hard chromium plated piston.
  • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod.
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Interchangeable hardened saddle.
  • Dirt wiper protects against dirt.
  • Oil port thread 3/8 NPT.
  • 2 female coupler halves model CFY-1.
  • From model YH-30/200 with carrying handle.
  • From model YH-50/350 with 2 lifting rings

SPECIFICATIONS

Model Cylinder Size (Tonne) Capacity Push/Pull (kN) Stroke (mm) Closed Height (mm) Weight (kg)
YH5/30 5 50/22 30 160 2.5
YH5/80 5 50/22 80 210 3.3
YH5/150 5 50/22 150 280 4.4
YH10/30 10 100/45 30 175 4
YH10/80 10 100/45 80 225 5
YH10/150 10 100/45 150 295 6.7
YH10/250 10 100/45 250 395 9
YH20/50 20 200/100 50 195 7
YH20/150 20 200/100 150 310 11
YH20/250 20 200/100 250 410 14
YH30/200 30 300/140 200 325 19
YH30/350 30 300/140 350 510 27
YH50/150 50 500/220 150 325 27
YH50/350 50 500/220 350 525 42
YH50/500 50 500/200 500 685 52
YH70/150 70 700/330 150 335 37
YH70/350 70 700/330 350 540 56
YH100/50 100 1000/450 50 265 49
YH100/150 100 1000/450 150 365 64
YH100/350 100 1000/450 350 565 94
YH100/500 100 1000/450 500 725 118
