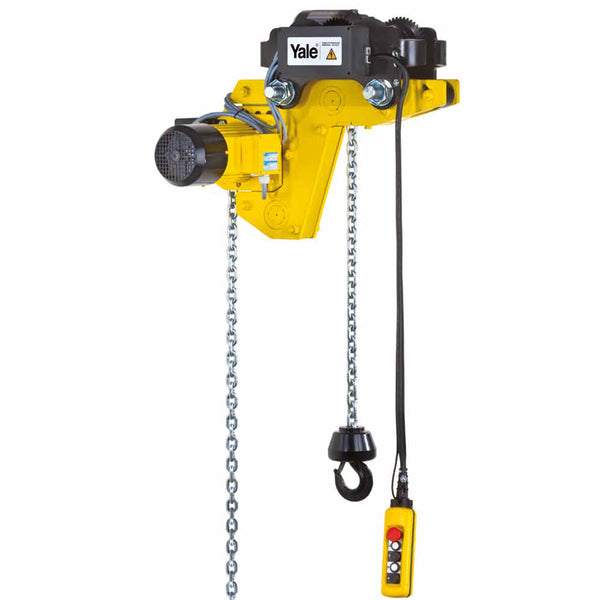

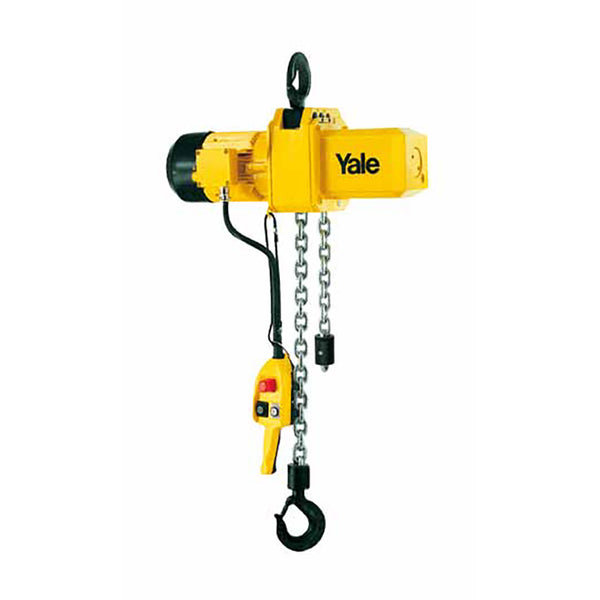

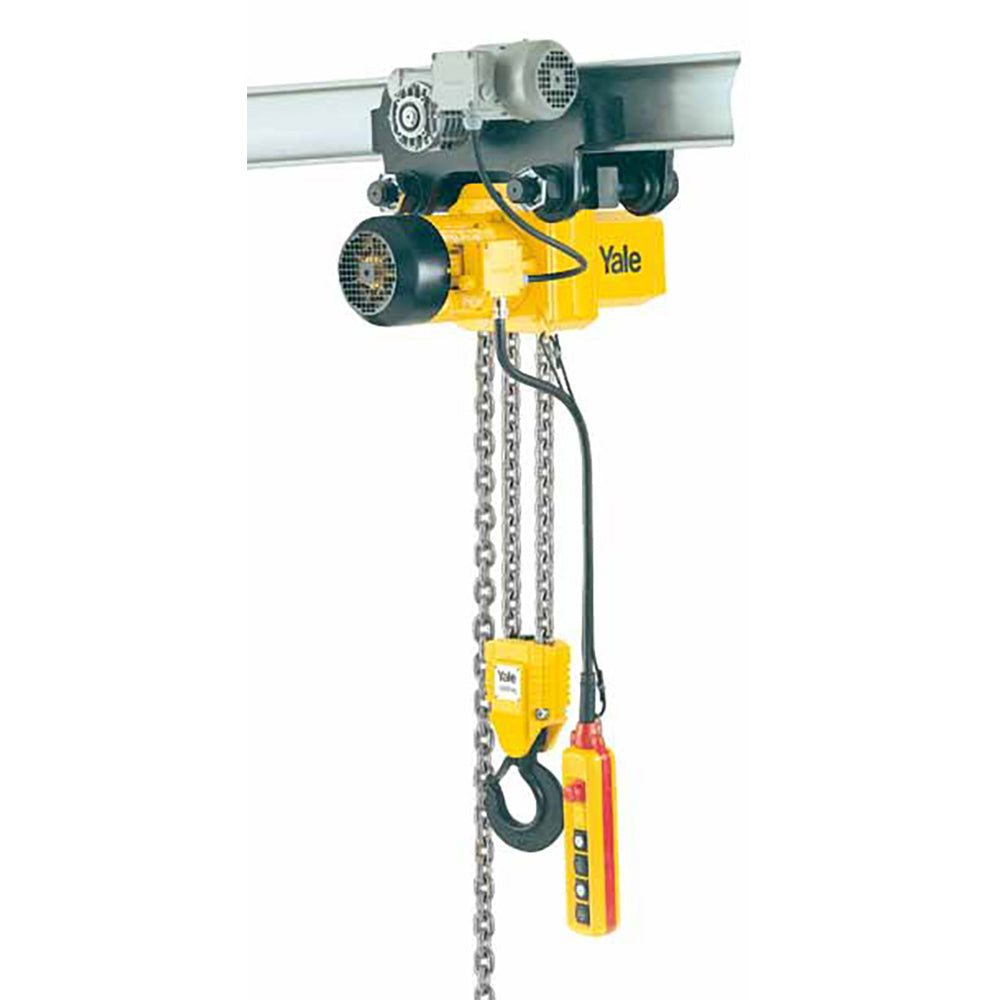

Yale Electric Chain Hoist 2 Ton, Low Voltage (CPE/CPEF)

Electric Chain Hoist 2 Ton / 2000kg (Trolley or Suspension Lug)

Model No.: CPE 20-8 & CPEF 20-8

This Yale Electric Chain Hoist series is a range of high capacity and great quality products for professional applications. They are highly efficient and engineered for long working life. The hoists are composed of three main component parts which make service easy and inexpensive.

With a single chain fall & lifting speed at 8m/min (main lift), this low-voltage electric hoist 2 Ton comes in 2 types of speeds.
- Single speed for CPE 20-8
- Dual speed for CPEF 20-8

It is also available in 6 lifts from 3m to 18m. For any inquiries, please contact us via Chat.

Electric Chain Hoist Specification for CPE/F Model

FEATURES

• Classification(FEM/ISO):
  1 Am/M4. On request, the classification can be modified by derating the capacity and duty cycle.
• 2-year warranty (excluding wear parts), as well as a lifetime, lubricated gear box.
• Duty cycle:
  40% at one operating speed
• The heavy-duty squirrel cage motor :
  - Has an adjustable spring pressure brake that holds the load secure even in the event of a power failure.
  - Motor protected to IP 54, insulation class F, against ingress of dust and splashing. (acc. to VDE 0530)
  - Motor fitted with bimetallic thermal protection (useable in connection with low voltage control).
• Standard operating voltage:
  Euro-voltage 400 Volt, 3-phase, 50 Hz.
• Encapsulated pendant control:
  Protected to IP 65, against ingress of dust and water jets
• The standard case hardened and zinc-plated link chain:
  - Matched perfectly to the load chain to guarantee smooth and precise chain motion.
  - All requirements of national and international standards and regulations are fulfilled.
• The 5-pocket load chain sheave:
  - Manufactured from wear resistant case hardening steel
  - Matched perfectly to the load chain to guarantee smooth and precise chain motion.
• The standard, oil bath lubricated planetary gearbox:
  For smooth running
• Drop forged suspension and load hooks:
  Made from non-aging, high tensile steel and fitted with robust safety latches.

OPTIONS

• Stainless steel load chain.
• Suspension hook rotated 90°.
• Flexible chain container.
• Other operating voltages.
• Limit switches for highest and lowest hook positions (in combination with low voltage control).
• Motor with stainless steel brake.
• Radio remote control
• Control for synchronized operation of several hoists.
• Manual and electric trolleys.
• Integrated low headroom trolley.
• Connection to festooned cable systems.

DETAILS

• Yale hoists an trolleys are not designed for passenger elevation applications and must not be used for this purpose.
• The units are certified by the employer's liability insurance association (Berufsgenossenschaft) and fulfill the requirements of the machinery directive
