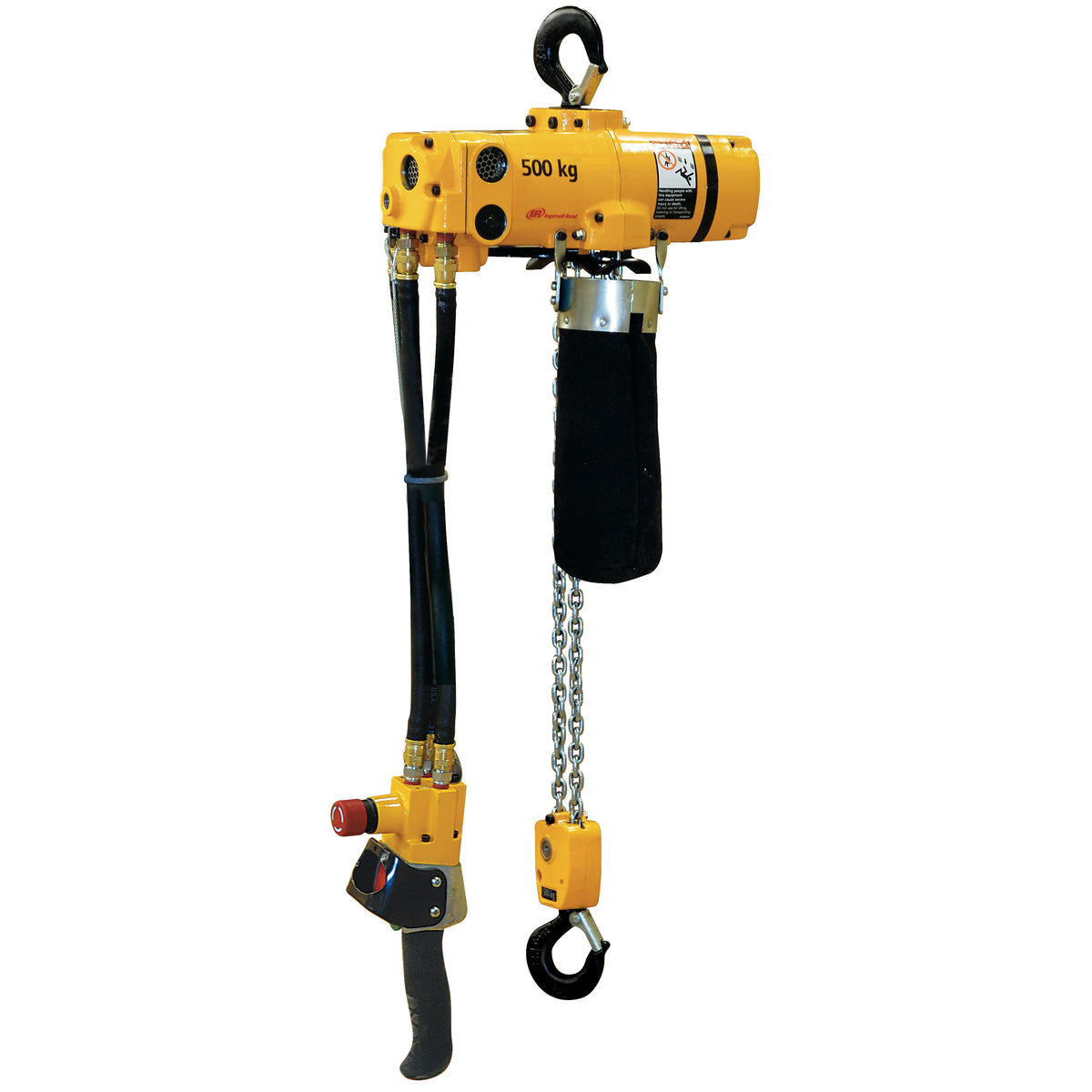

Yale Pneumatic Chain Hoist (CPA)
- Four models from 125 to 980 kg. Pneumatic chain hoist available with 3 to 18 m of lift.
- Continuous operation. Rotating piston motor with 100% duty rating and an unlimited number of starts.
- Operating pressure 5 to 7 bar. Also suitable for nitrogen; the air supply must be filtered and oiled.
- Integrated limit switches. For highest and lowest hook position, with sensitive control and emergency stop.
- Maintenance-free disc brake. Self-adjusting automatic brake, with air release standard on CPA 10-9.
Accepted payment methods
shipping
Pneumatic Chain Hoist, Capacity: 125-980kg
Pneumatic chain hoists are characterized by high durability in a great number of industrial applications. The robust but lightweight housing allows easy transport.
Available with 3, 6, 9, 12, 15 or 18 m of lift (3 m standard). For other lengths please contact us via chat or our contact form below.
FEATURES
- Designed for operating pressures of 5 to 7 bar.
- Rotating piston motor with 100% duty rating and an unlimited number of starts for continuous operation.
- Integrated limit switches for highest and lowest hook position as standard.
- Self-adjusting automatic disc brake, maintenance-free.
- Extremely sensitive control with emergency-stop for precise positioning of the load

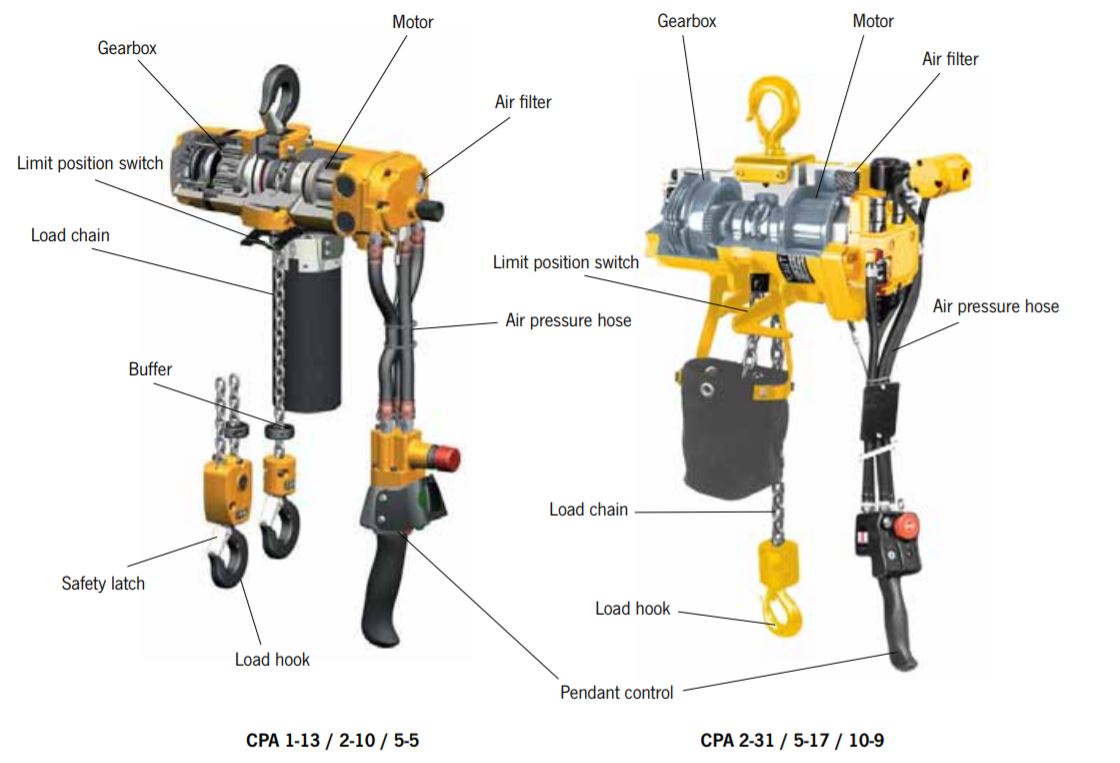

- Air release for the brake as a standard for models CPA 2-31, CPA 5-17 and CPA 10-9
DETAILS
- Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
- To ensure faultless operation the compressed air supply must be filtered and oiled.
- Also suitable for operation with nitrogen.
- CPA 1-13, CPA 2-10 and CPA 5-5: hose length max. 12 m, air supply 3/8" NPT. CPA 10-9: hose length max. 20 m, air supply 1/2" NPT.
MODELS
| Model | Capacity / Chain Falls | Chain (d x p) | FEM/ISO | Lifting Speed (rated load) | Air Consumption (rated load) | Motor | Weight (3 m lift) |
|---|---|---|---|---|---|---|---|
| CPA 1-13 | 125 kg / 1 | 4 x 12.2 mm | 1 Am/M4 | 13.1 m/min | 0.9 m³/min | 0.4 kW | 15.4 kg |
| CPA 2-10 | 250 kg / 1 | 4 x 12.2 mm | 1 Am/M4 | 9.8 m/min | 0.9 m³/min | 0.4 kW | 15.4 kg |
| CPA 5-5 | 500 kg / 2 | 4 x 12.2 mm | 1 Am/M4 | 4.6 m/min | 0.9 m³/min | 0.4 kW | 17.2 kg |
| CPA 10-9 | 980 kg | - | - | - | - | - | - |
Speeds and air consumption at 6.3 bar flow pressure and 2 m control drop.
APPLICATION
The CPA Pneumatic Chain Hoist is perfectly suited for use in automobile and aircraft industries, shipyards, on ships and docks, foundries, on/offshore, Paint factories, paint shops, refineries, oil depots, galvanising, printing, textile, food industries, pulp, paper, cement mills, glass, ceramic industries, woodworking industries, chemical industries, heat treatment and power plants etc.
