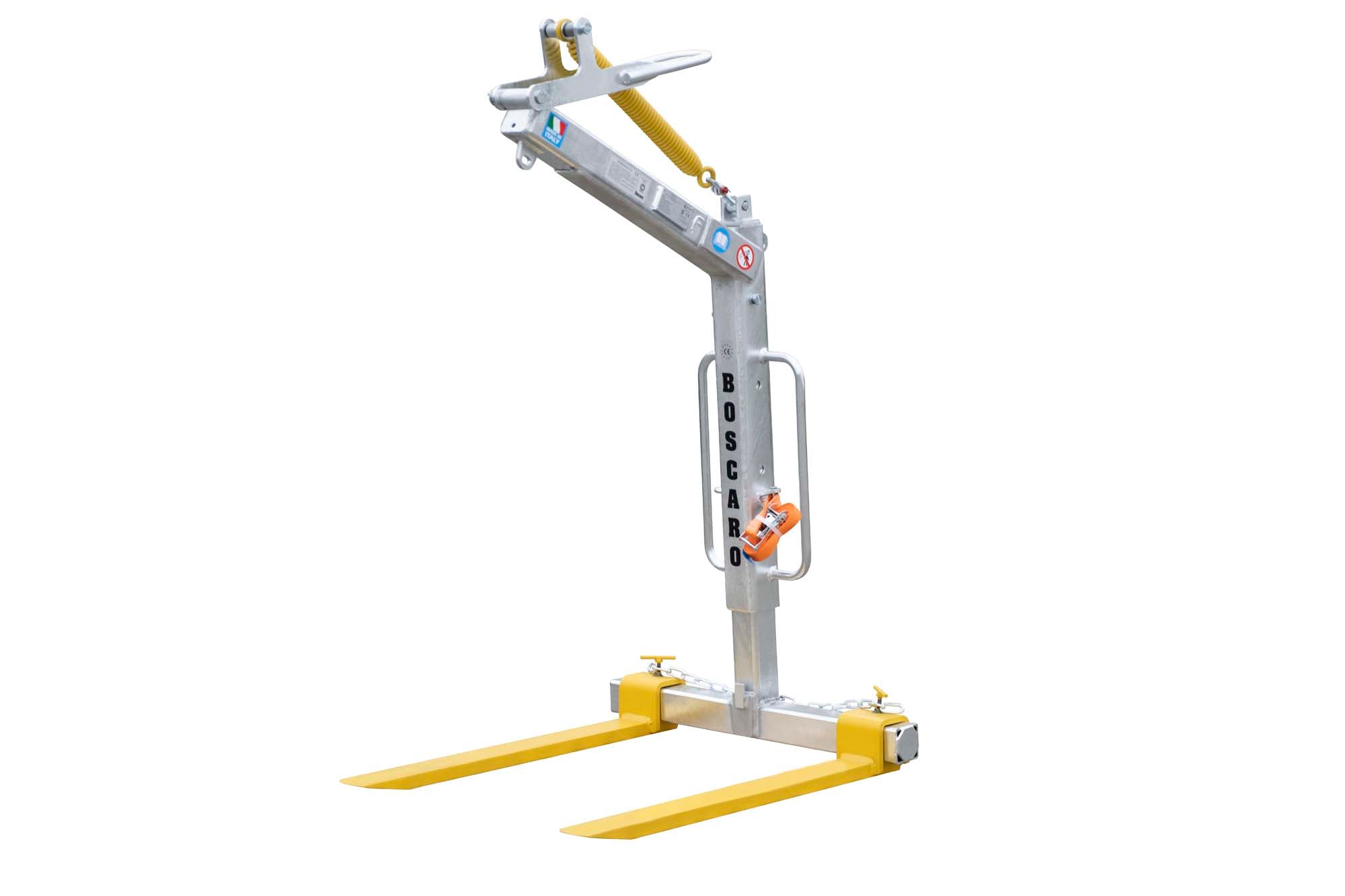

Boscaro Galvanized Self-Levelling Crane Fork with Telescopic Height
The Boscaro Galvanized Self-Levelling Crane Fork with Telescopic Height is designed for durability and reliability in lifting operations. Featuring a hot-dip galvanized finish, this crane fork offers superior corrosion resistance and longevity, making it ideal for use in harsh environments such as construction sites, industrial settings, and maritime applications.
Downloads:
Key Features:
- Hot-dip galvanized finish for enhanced corrosion resistance
- Self-levelling design ensures balanced lifting
- Adjustable telescopic height for versatile load handling
- Spring balancing mechanism for added stability
- Manufactured and tested according to UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, and UNI EN 10204 standards
Specifications:
- Corrosion Protection: Provides a durable coating against oxidation
- Durability: Enhanced strength for long-lasting performance
- Low Maintenance: Requires minimal upkeep due to rust resistance
- Versatile Applications: Suitable for construction, industrial, and maritime use
- Professional Appearance: Clean and polished galvanized finish
References:
- UNI EN 13155
- UNI EN ISO 12100
- UNI EN 13854
- ISO 8686
- UNI EN 10204
Available Variants:
|
Code |
Capacity (kg) |
Weight (kg) |
Dimension A (mm) |
Dimension B (mm) |
Dimension C (mm) |
Dimension D (mm) |
Dimension F (mm) |
Dimension I (mm) |
|
MBRA-10ZN |
1000 |
120 |
1000 |
25 |
90 |
1000-1450 |
350-1000 |
600 |
|
MBRA-15ZN |
1500 |
160 |
1000 |
30 |
90 |
1000-1450 |
350-1000 |
600 |
|
MBRA-20ZN |
2000 |
175 |
1000 |
35 |
100 |
1200-1800 |
350-1000 |
600 |
|
MBRA-25ZN |
2500 |
245 |
1000 |
40 |
90 |
1200-1800 |
350-1000 |
600 |
|
MBRA-30ZN |
3000 |
255 |
1000 |
35 |
120 |
1200-1800 |
350-1000 |
600 |
