Safetex wire rope holder with lateral outlet and integrally adhered threaded rod
€46.36incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Cable diameter Ø:
4 + 5 mm
Accepted payment methods
Please enter correct zip code
shipping

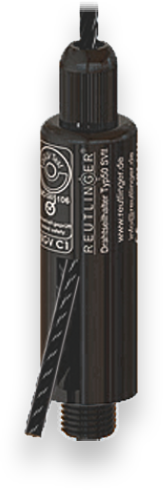

Safetex Wire Rope Holder with Side Exit and Bonded Threaded Stud
The Safetex wire rope holder with side exit and bonded threaded stud offers a secure and flexible solution for static suspensions in event technology. Its self-clamping mechanism with spring-loaded brass balls ensures reliable holding under load. The knurled nut allows for tool-free, stepless positioning and securing of the wire rope. Compatible with ropes according to EN 12385-4 and tested in accordance with DGUV and TÜV-certified – for maximum safety in professional applications.
Description:
- Side cable exit for flexible installation options
- Self-clamping brass balls secure the cable under load
- Knurled nut allows for tool-free adjustment and fixing
- Suitable for wire ropes with diameters from 4 to 8 mm
- DGUV-approved and TÜV-tested for maximum safety
Specifications:
- Application: Static suspensions in event technology
- Compatible wire ropes: EN 12385-4 (6 x 19 FE or 7 x 19 SEL)
- Cable clamping: Spring-loaded brass balls
- Operation: Manual knurled nut, steplessly adjustable
- Safety certifications: DGUV-approved, TÜV-tested
Technical Data:
| Item No. | Thread | for Cable Ø | WLL/DGUV |
| DSH-05-M12-BGV-SA | M12 | 4+5 mm | 60 kg + 90 kg |
| DSH-06-M16-BGV-SA | M16 | 6 mm | 135 kg |
| DSH-08-M12-BGV-SA | M12 | 6+8 mm | 135 kg + 240 kg |
