Petzl COEUR BOLT STAINLESS
Product No. P36BS 10
Regular price
€144.58
€177.83
excl. €33.25 VAT
incl. €33.25 VAT
Shipping calculator
Please enter correct zip code
Payment methods
Product details

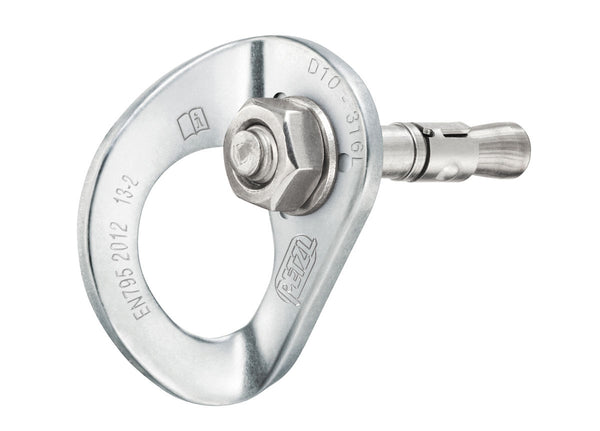

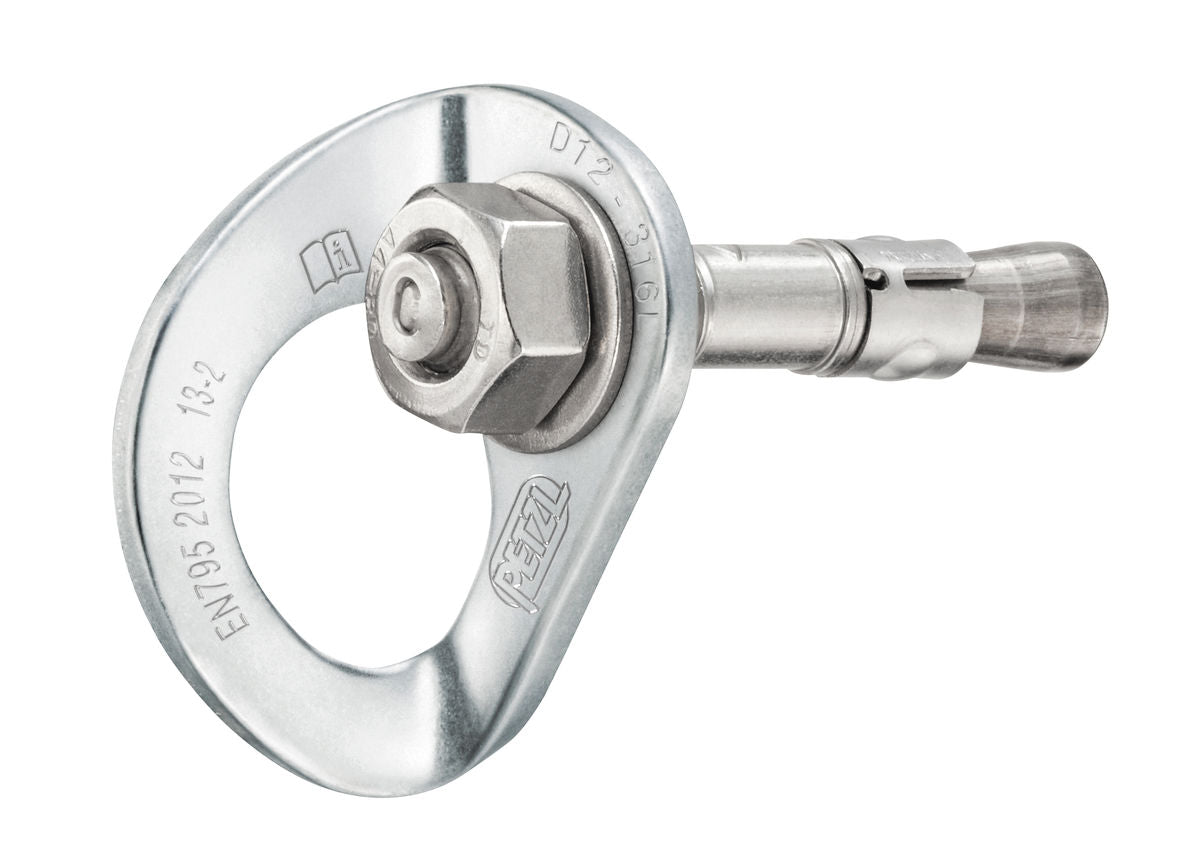

Petzl COEUR BOLT STAINLESS
Stainless steel anchor for typical exterior use (pack of 20)
Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt, and a nut, and is designed for typical exterior use. It is available in 10 and 12 mm diameters.
Description
- Complete and durable assembly:
- comprised of a COEUR STAINLESS hanger, nut and bolt
- 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
- hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
- comprised of a COEUR STAINLESS hanger, nut and bolt
- Easy to clip:

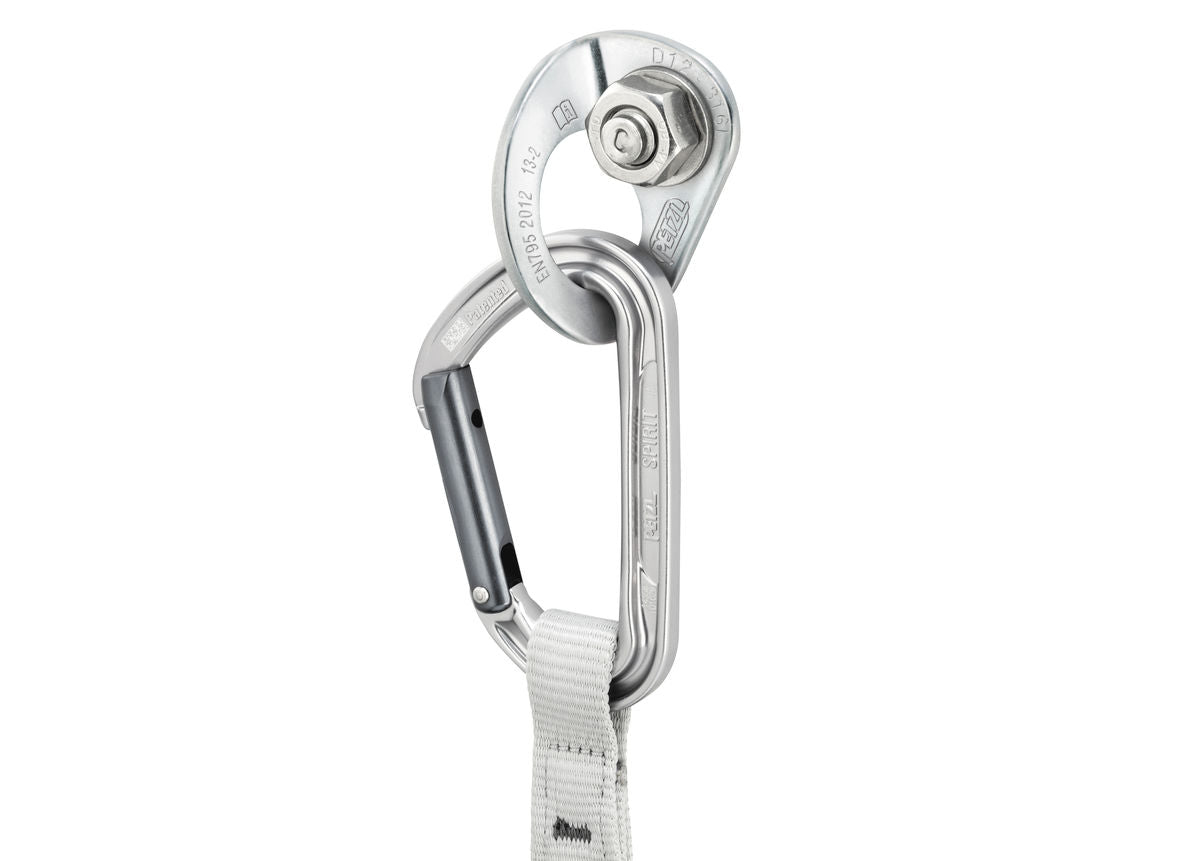

- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
- the wide, ergonomic connection point facilitates carabiner clipping
- Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
- Available in two bolt sizes (10 or 12 mm)
Specifications
- Material(s): 316L stainless steel
- Certification(s): EN 959
References
| References | P36BS 10 | P36BS 12 |
|---|---|---|
| Diameter | 10 mm | 12 mm |
| Weight | 110 g | 135 g |
| Drilling diameter | 10 mm | 12 mm |
| Total bolt length | 70 mm | 85 mm |
| Shear strength in 50 MPa concrete | 25 kN | 25 kN |
| Pull-out strength in concrete 50 MPa | 15 kN | 18 kN |
| Guarantee | 3 years | 3 years |
| Inner Pack Count | 1 | 1 |
